994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Deck - Mounts Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

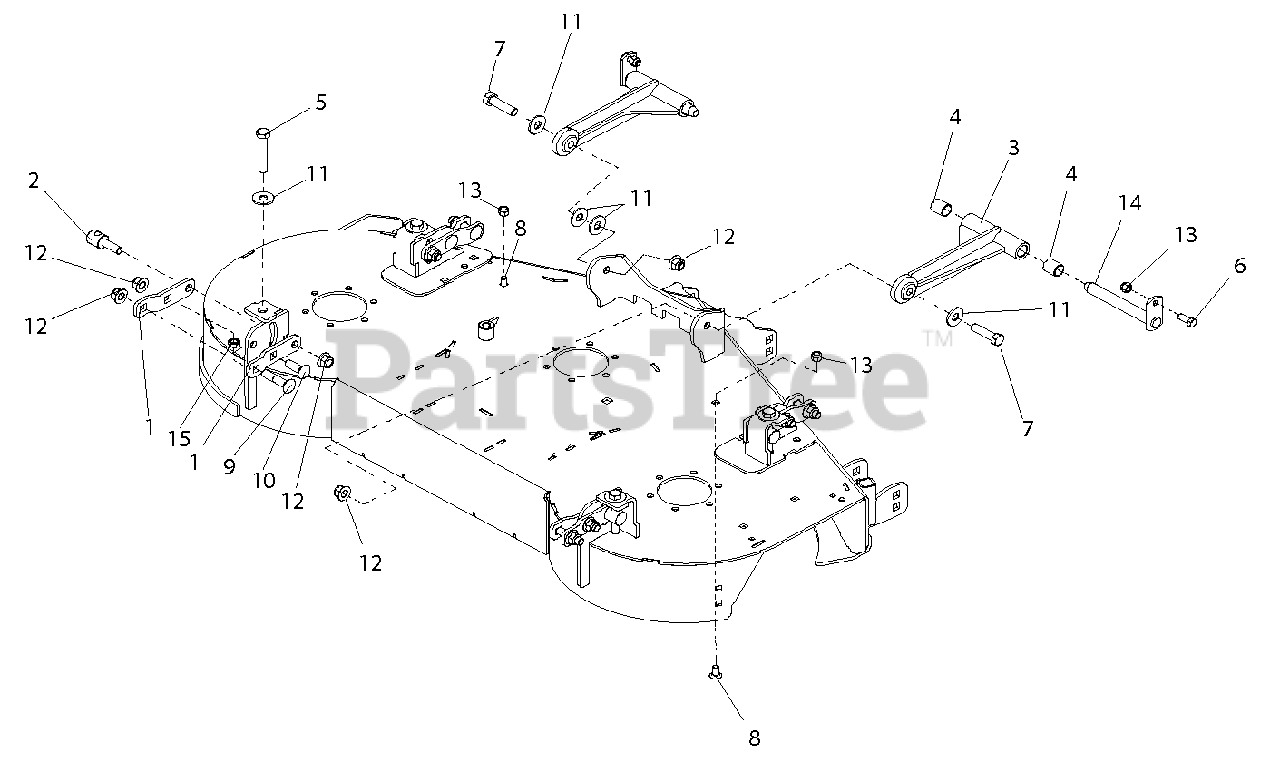

Deck - Mounts Parts Diagram

  • Title

1

Gravely 03966251

BRKT, DECK LEVELING

$22.99

$

Usually ships in 4-12 days

0

2

Gravely 03972000

TRUNNION, .50-13

$48.99

$

In Stock, only 4 left!

0

3

Gravely 04570651

WLDMT, DECK PUSHER ARM

$169.99

$

Usually ships in 4-12 days

0

4

Gravely 05435900

BRG, .75 X .875 X 1.00

$5.99

$

In Stock, only 3 left!

0

5

Gravely 05901421

BLT-HEX .50-13 X 3.0 GR5 FTD YWZ
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

6

Gravely 05948700

BLT-HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05959700

BLT-HEX .50-13 X 2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

8

Gravely 06200004

BLT-RHDSSQNK .38-16 X .75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06200119

BLT-RDHDSQNK .50-13 X 2.25 G5
(Superseded to 06200423)

$3.99

$

In Stock, Qty 7

0

10

Gravely 06223100

BLT-RDHDSQNK .50-13 X 1.50 G5 YWZC
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

11

Gravely 06442000

WSHR-FL-STL .563 X 1.38 X .109 YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 09238900

WLDMT, MOWER MTG PIN

$61.99

$

In Stock, only 1 left!

0

15

Gravely 06529300

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0
