994112 - Gravely Pro-Stance 52" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Deck Lift - Left Arm Parts Diagram

Pro-Stance 52" Stand-On Mower, Kawasaki FX

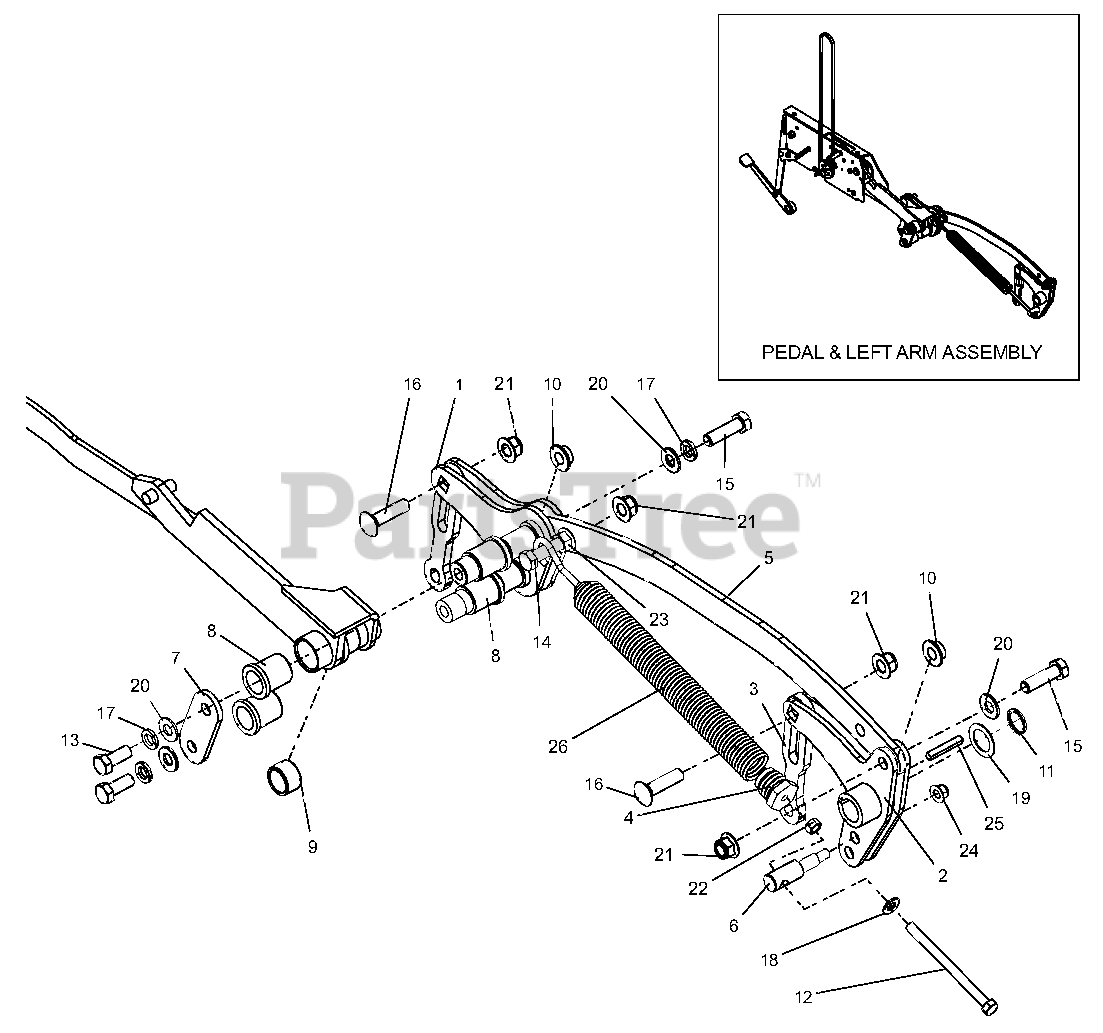

Deck Lift - Left Arm Parts Diagram

  • Title
1

Gravely 04372500

WLDMT, DECK ARM

$149.99

$

Usually ships in 4-12 days

0

2

Gravely 04372600

WLDMT, DECK LIFT PROSTANCE
(Superseded to 59401400)

$380.99

$

Usually ships in 4-12 days

0

3

Gravely 04373500

LINK, DECK LIFT

$28.99

$

Usually ships in 4-12 days

0

4

Gravely 04374200

PLUG, SPRG

$77.99

$

Usually ships in 4-12 days

0

5

Gravely 04415451

ARM, DECK LIFT

$62.99

$

Usually ships in 4-12 days

0

6

Gravely 04420300

TRUNION, DECK LIFT

$

$

Not available

7

Gravely 04449351

PLATE, LIFT LINK ATTACH

$

$

Not available

8

Gravely 05500934

BSHG-FLG 1.00X1.25X1.5X1.5

$6.99

$

In Stock, Qty 20+

0

9

Gravely 05501117

BSHG, 1.00 X 1.25 X .75

$

$

Not available

10

Gravely 05501118

BSHG, FLANGE .515 X .750 X .420 X 1.12

$28.99

$

Usually ships in 4-12 days

0

11

Gravely 05707300

RG-RTNG-EXT 1.00X.078 REV

$2.99

$

In Stock, Qty 9

0

12

Gravely 05901506

BLT-HEX .38-16X5.0 GR5 FTD YWZ
(Superseded to 05901923)

$

$

Not available

13

Gravely 05958900

BLT-HEX .50-13 X 1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

14

Gravely 05966600

BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

15

Gravely 05970600

BLT-HEX .50-13 X 1.75 GR5 YWZC
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

16

Gravely 06200131

BLT-RDHDSQNK .50-13 X 2.00 G5 Y
(Superseded to 06200326)

$

$

Not available

17

Gravely 06307300

NUT-SPLK-FLG .50-13 YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

18

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06436300

WSHR-FL-STL 1.010X 1.505 X .062 YWZC
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06441900

WSHR-FL-STL .531 X 1.06 X .095 YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06543300

NUT .50-13 WIZ FLANGE
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06601800

KEY-STR .25 X 1.75 X .25

$3.99

$

In Stock, only 2 left!

0

26

Gravely 08300530

SPRG, DECK LIFT

$52.99

$

Usually ships in 4-12 days

0
