994111 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Operator Controls - Steering Levers Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

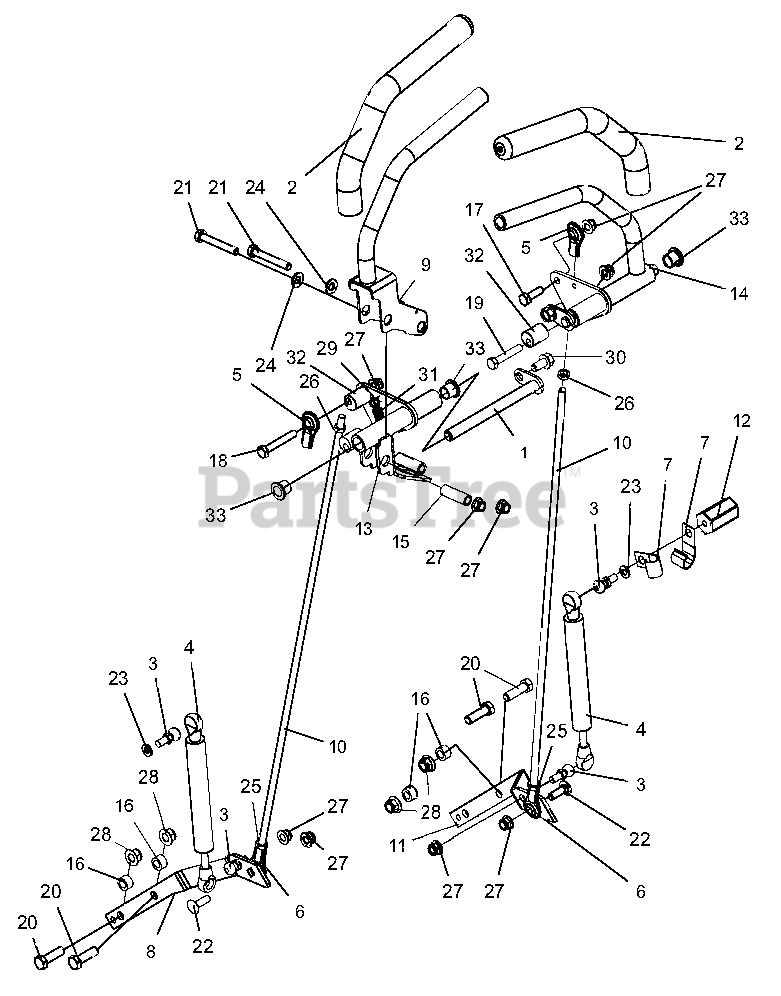

Operator Controls - Steering Levers Parts Diagram

  • Title

1

Gravely 00203893

WLDT, PIN AND LOCK

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 00675200

GRIP, HANDLEBAR REV

$9.49

$

In Stock, only 1 left!

0

3

Gravely 03652200

STUD-BALL

$3.49

$

In Stock, only 3 left!

0

4

Gravely 03914100

DAMPER
(Superseded to 30151500)

$31.99

$

In Stock, only 2 left!

0

5

Gravely 03787100

ALIGNABALL 5/16 RH THREAD

$12.99

$

In Stock, only 2 left!

0

6

Gravely 03787200

ALIGNABALL 5/16 LH THREAD
(Superseded to 05298700)

$

$

Not available

7

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

In Stock, only 1 left!

0

8

Gravely 04378451

BRKT, PROSTANCE CONTROL-LH

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 04389851

CONTROL ARM LH

$77.99

$

Usually ships in 4-12 days

0

10

Gravely 04399900

ROD STEERING

$

$

Not available

11

Gravely 04446251

BRKT PROSTANCE CONTROL RH

$31.99

$

Usually ships in 4-12 days

0

12

Gravely 04456300

SPCR DAMPER PROSTANCE

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 04458751

WLDMT CONTROL MOUNT LH

$96.99

$

Usually ships in 4-12 days

0

14

Gravely 04458851

WLDMT CONTROL ARM LRH

$95.99

$

Usually ships in 4-12 days

0

15

Gravely 05501110

BSHG SLV .33 X .50 X 1.56

$9.99

$

Usually ships in 4-12 days

0

16

Gravely 05522100

BSHG, SLV REV

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 05946900

BLT HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05957200

BLT HEX .31-18 X 2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05957400

BLT HEX .31-18 X 1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

20

Gravely 05958000

BLT HEX .38-16 X 1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05963700

BLT HEX .31-18 X 2
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06216100

BLT-RDHDSQSHNK .31-18 X 1.00 G5 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06308600

WSHR-LK .31 X .078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06437200

WSHR-FL-STL .344 X .688 X .065 YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06536700

NUT JAM
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

26

Gravely 06544300

NUT JAM LH .31-24 YWZC
(Superseded to 06501002)

$

$

Not available

27

Gravely 06545400

NUT LK NYL FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06545500

NUT LK NYL FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 07400034

SCR TAP .25-20 X .50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07415400

SCR TAP .38-16 X .75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 08300036

SPRG EXT .043x .438 x 1.64

$2.49

$

In Stock, only 2 left!

0

32

Gravely 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

33

200116

BRGT, FLG .500 X .625 X .500 BRNZ

$

$

Not available
