994111 - Gravely Pro-Stance 48" Stand-On Mower, Kawasaki FX (SN: 000001 - 029999) Deck Lift - Pedal (SN 00011-019999) Parts Diagram

Pro-Stance 48" Stand-On Mower, Kawasaki FX

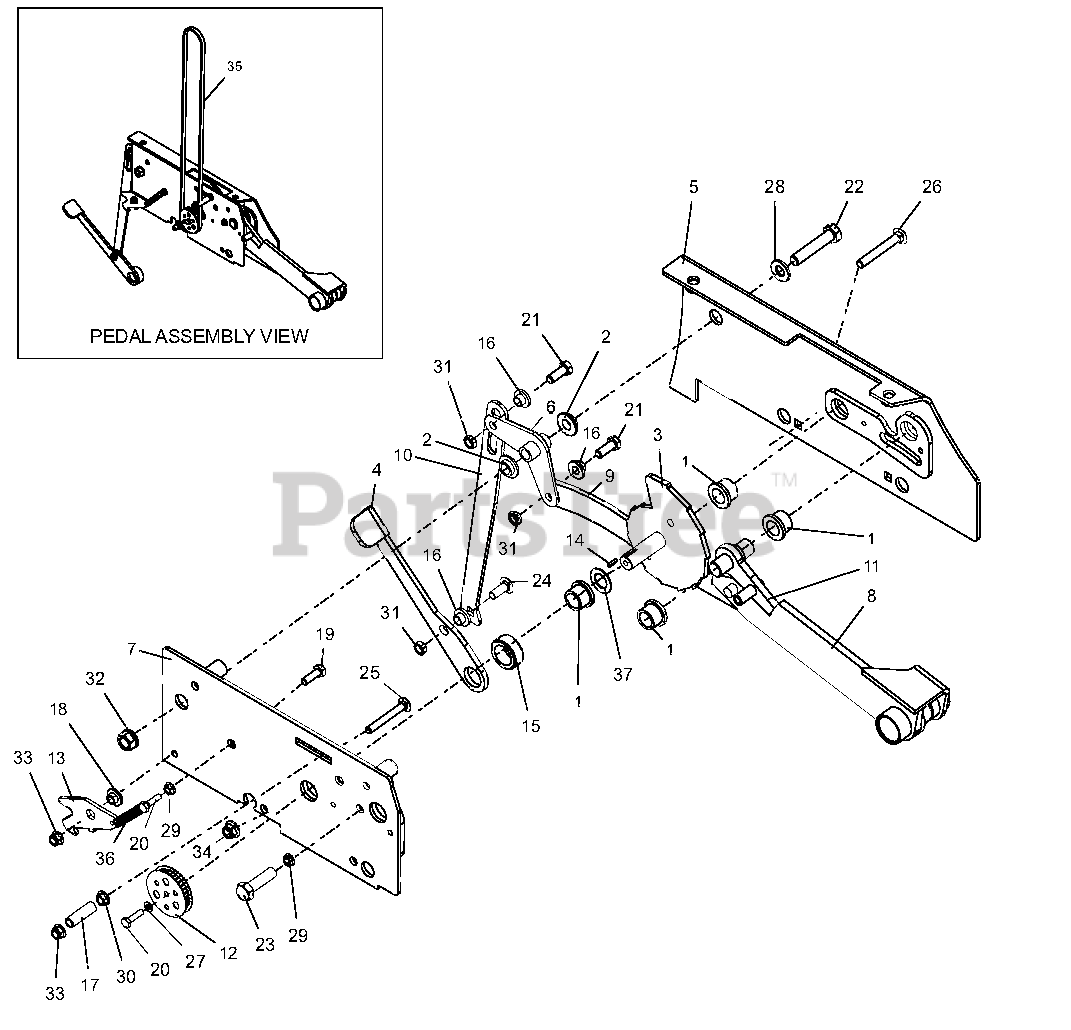

Deck Lift - Pedal (SN 00011-019999) Parts Diagram

  • Title

1

Gravely 00252126

BUSHING, .750 X 1.00 X .750

$11.99

$

Usually ships in 4-12 days

0

2

Gravely 03989100

BSHG-FLG .515 X .750 X .395 X 1.120

$3.49

$

In Stock, Qty 20+

0

3

Gravely 04398500

WLDMT, HEIGHT OF CUT

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 04415151

ARM, LOWER TURN

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 04415653

WLDMT, LH BOTTOM TOWER SIDE

$129.99

$

Usually ships in 4-12 days

0

6

Gravely 04415751

WLDMT, REAR PIVOT

$73.99

$

Usually ships in 4-12 days

0

7

Gravely 04415853

WLDMT, CAM COVER

$87.99

$

Usually ships in 4-12 days

0

8

Gravely 04415951

WLDMT, CAM CONTACT

$142.99

$

Usually ships in 4-12 days

0

9

Gravely 04416051

WLDMT, DECK LIFT LINK

$64.99

$

Usually ships in 4-12 days

0

10

Gravely 04416251

ARM, PEDAL

$34.99

$

Usually ships in 4-12 days

0

11

Gravely 04432500

WLDMT, TRAILER LOCK

$85.99

$

Usually ships in 4-12 days

0

12

Gravely 04438500

WLDMT, PULLEY

$76.99

$

Usually ships in 4-12 days

0

13

04449451

LATCH, FOOT PEDAL

$

$

Not available

14

Gravely 04488400

KEY, .125 SQ X .50

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 04510000

SPCR, 1.032 X 1.5 X .594

$51.99

$

Usually ships in 4-12 days

0

16

Gravely 05500435

BSHG-FLG .385 X .500 X .875 X .406 REV

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05501110

BUSHG, SLV .33 X .50 X 1.56

$9.99

$

Usually ships in 4-12 days

0

18

Gravely 05514800

BSHG. -FLG .312 X .500 X .344

$2.49

$

In Stock, only 3 left!

0

19

Gravely 05946900

BLT-HEX .31-18 X 1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 05947700

BLT-HEX .25-20 X 1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

21

Gravely 05948700

BLT-HEX .38-16 X 1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

0596600

BLT-HEX .50-13 X 2.75 GR5 YWZC

$

$

Not available

23

Gravely 05946800

BLT-HEX .25-20 X .75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

24

Gravely 06212000

BLT-RDHDSHSQNK .38-16 X 1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06219400

BLT-RDHDSQNK .31-18 X 2.50 G5 Y
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 06225400

BLT-RDHDSQNK .38-16 X 2.75 G5 Y
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

27

Gravely 06308400

WSHR-LK .25X .062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 18

0

28

Gravely 06441900

WSHR-FL-STL .531 X 1.06 X .095 YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06530100

NUT-LK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06537200

NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06543600

NUT, LK-TOPFLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 07200629

BELT, TIMING

$64.99

$

Usually ships in 4-12 days

0

36

Gravely 08300527

SPRG, EXTENSION

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 00150052

BUSHING, MACH .75 X 1.25 X .048

$4.99

$

Usually ships in 4-12 days

0
