994110 (2452 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki (SN: 000101 & Above) Battery, Electrical Harness and Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 24hp Kawasaki

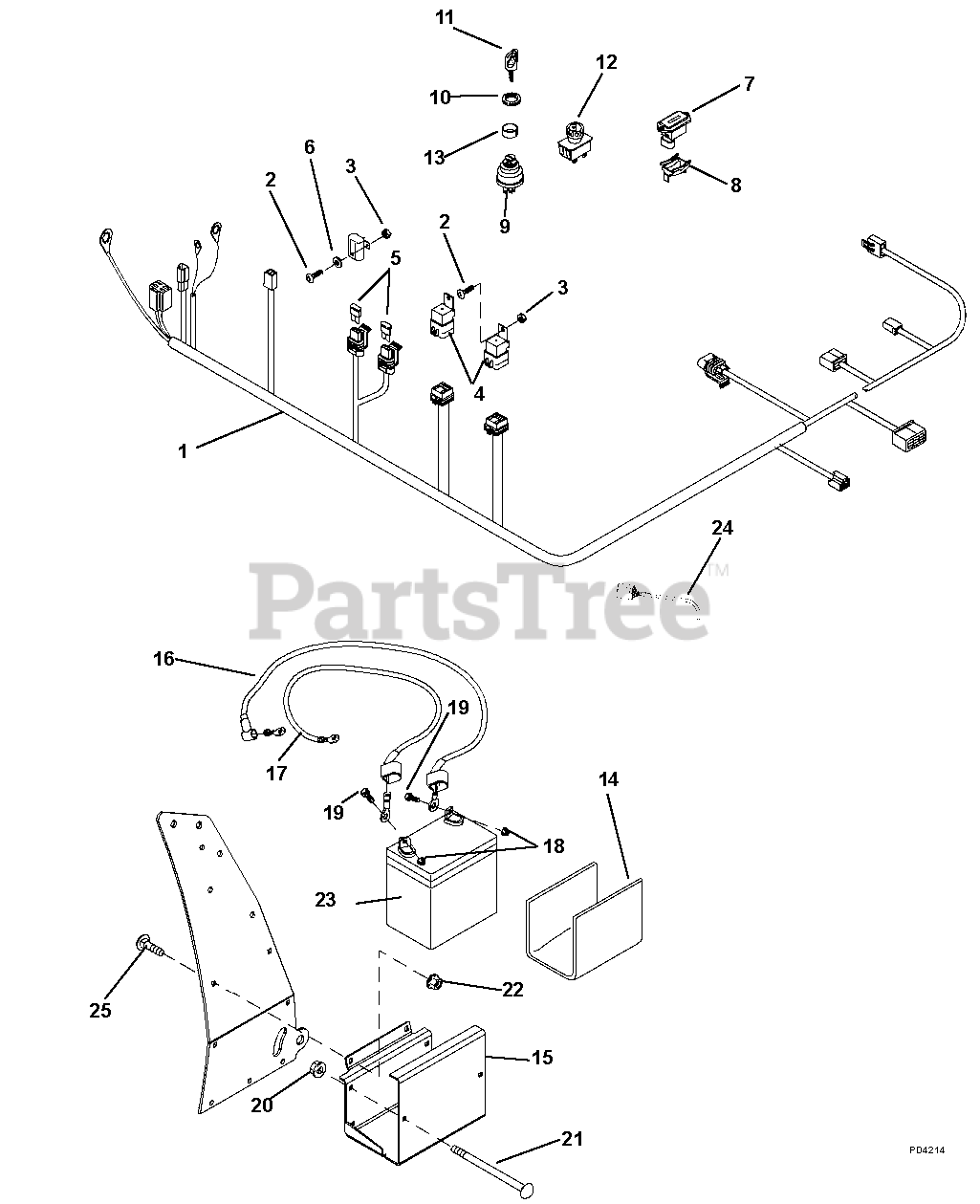

Battery, Electrical Harness and Components Parts Diagram

  • Title

1

Gravely 00200204

Wiring Harness

$254.99

$

Usually ships in 4-12 days

0

2

Gravely 05975800

Bolt, Hex M5 .8 x 16

$

$

Not available

3

Gravely 14M7360

Locknut, ISO7040-5-9-ZN

$

$

Not available

4

Gravely AM123716

Relay, Sealed with Bracket

$35.99

$

Usually ships in 4-12 days

0

5

Gravely 00191262

Fuse, 20 Amp Blade

$14.99

$

In Stock, only 1 left!

0

6

Gravely 06442700

Washer, Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

7

Gravely AM129887

Meter, Hour - LCD

$

$

Not available

8

Gravely TCU13098

Clip, ZTrak Hour Meter

$

$

Not available

9

Gravely TCA15075

Switch, Ignition Key

$37.99

$

Usually ships in 4-12 days

0

10

Gravely M110159

Nut, Knurled

$

$

Not available

11

Gravely TCU17401

Ignition Key

$

$

Not available

12

Gravely AM118802

Switch, PTO

$26.99

$

Usually ships in 4-12 days

0

13

Gravely M72685

Spacer, 1.00 x .095W x. 392

$

$

Not available

14

Gravely D28159

Strip, Rubber

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 00200003

Tray, Battery

$

$

Not available

16

Gravely 00181148

Cable, Battery Starter 48"

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 03387900

Cable, Battery Ground 25"

$35.99

$

Usually ships in 4-12 days

0

18

Gravely 06530100

Nut, Locking, Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06545400

Nut, Locking, Nylon, Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06200128

Bolt, Round Head Square Neck .31-18 x 6.00 G5

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 06542300

Nut, Lock, Flange M8-1.25
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 01554800

Battery

$

$

Not available

24

Gravely 04337600

Adapter, Pin Harness

$

$

Not available

25

Gravely 06226000

Bolt, Round Head Square Neck M8-1.25 x 20

$

$

Not available
