994109 (2048 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki (SN: 000101 & Above) Spindle Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki

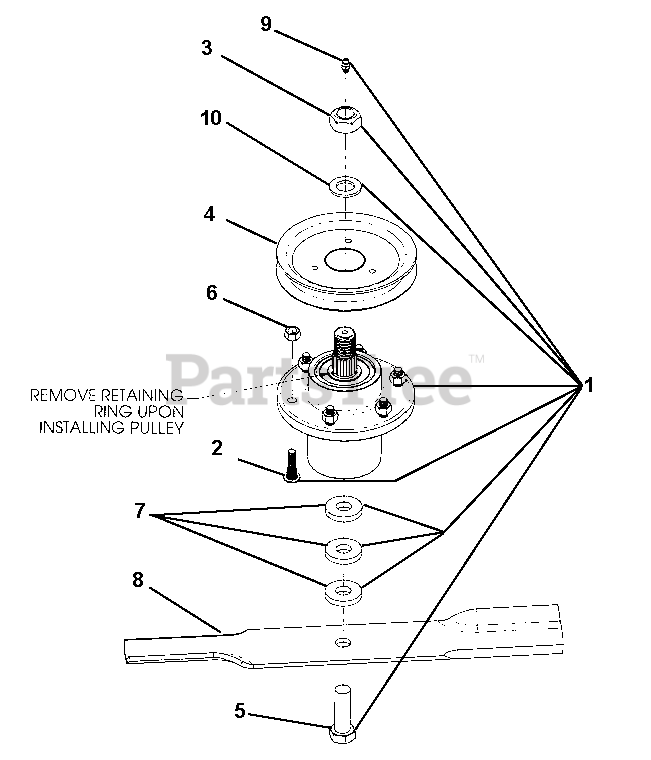

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200262

Spindle Assembly, Includes Items 2, 3, 4, 5, 6

$267.99

$

In Stock, only 2 left!

0

2

Gravely 05900105

Bolt, 3/8 x 1.25 RIB
(Superseded to 00200045)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 06500709

Locknut, Crown .75 - 16 Grade 5
(Superseded to 06500836)

$6.99

$

In Stock, only 2 left!

0

4

Gravely 03828700

Pulley, Spline Spindle (994109)

Note: (994109)

$

$

Not available

Gravely 03399702

Pulley, Sline Spindle (994110)

Note: (994110)

$75.99

$

In Stock, only 1 left!

0

5

Gravely 05970002

Bolt, Hex .62-11 x 2.00 Grade 8
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

6

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06400913

Flat Steel Washer .630 x 1.50 x .25
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

8

Gravely GDU10230

16.5" x .80 Lift Blade (994109)

Note: (994109)

$28.99

$

In Stock, Qty 13

0

Gravely GDU10231

18.0" x .80 Lift Blade (994110)

Note: (994110)

$30.99

$

In Stock, Qty 20+

0

9

Gravely 00959995

Zerk, Grease, Fitting, STRGT 1/4-28

$3.49

$

Usually ships in 4-12 days

0

10

Gravely 03399703

Washer .75 x 1.3125 x .12
(Superseded to 06401037)

$1.99

$

Usually ships in 4-12 days

0
