994109 (2048 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki (SN: 000101 & Above) Hydrostatic Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 20hp Kawasaki

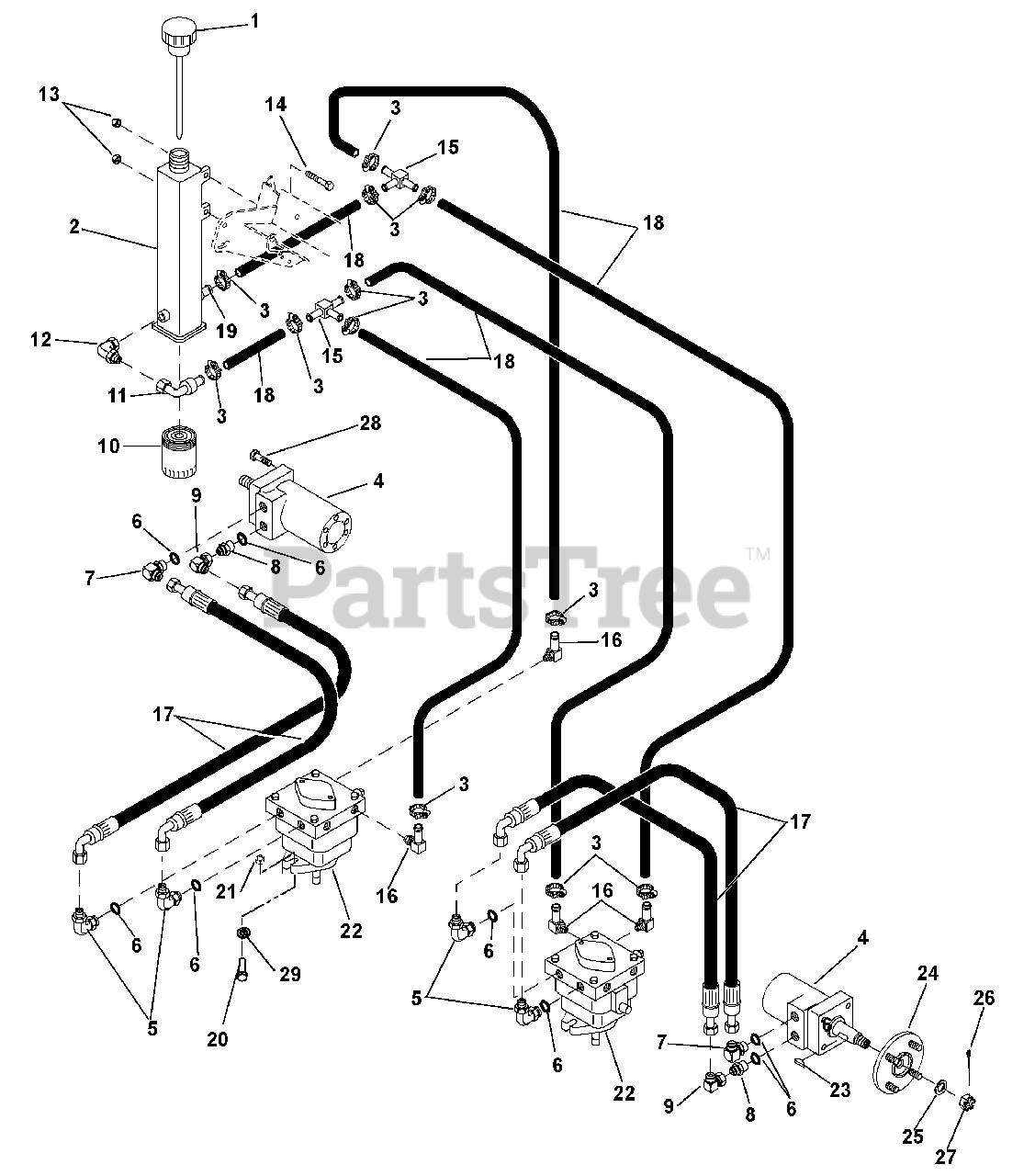

Hydrostatic Components Parts Diagram

  • Title

1

Gravely TCA15122

Cap, Filler, Oil

$

$

Not available

2

Gravely TCA15373

Hydraulic Reservoir

$

$

Not available

3

Gravely D18379

Hose Clamp

$3.99

$

In Stock, only 2 left!

0

4

Gravely 04915500

Motor, Hydraulic Wheel
(Superseded to 05015500)

$905.99

$

Usually ships in 4-12 days

0

Gravely 21544012

Seal Kit HGM Hydrogear

$

$

Not available

Gravely 21544013

Bearing Kit Hydrogear

$183.99

$

Usually ships in 4-12 days

0

5

Gravely D14196

Fitting, 90 ADP JIC-Orbit 6801-08-08

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 05600007

O-Ring, Included With Fitting

$

$

Not available

7

Gravely 00231647

Fitting, 7/8ORB x 3/4JIC x 90

$

$

Not available

8

Gravely 00231104

Fitting, ADP 3/4-16 MJIC x 7/8-14MOR

$

$

Not available

9

Gravely 00231046

Adapter, 3/4 FESW x 3/4MJIC x 90

$

$

Not available

10

Gravely GDA10137

Filter, Oil

$22.99

$

In Stock, only 3 left!

0

11

Gravely GDA10066

Elbow Fitting

$

$

Not available

12

Gravely 00313270

Fitting, 90 9/16 MOR x 9/16 MJIC

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$

$

Not available

14

Gravely 19M7785

Screw, Hex, Flat M10 x 1.5 x 25

$

$

Not available

15

Gravely M86863

Fitting, TUN, .38 Hose

$

$

Not available

16

Gravely D24028

Fitting 90 9/16 MOR x 3/8" Hose

$

$

Not available

17

Gravely D18394

Hose Assembly

$92.99

$

Usually ships in 4-12 days

0

18

Gravely DT5332

Hose, .38 SAE30R7 Fuel and Oil

$5.99

$

Usually ships in 4-12 days

0

19

Gravely GDA10065

Adapter, Straight Fitting

$

$

Not available

20

Gravely 06200016

Carriage Bolt, Pump Mounting, M10

$

$

Not available

21

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$

$

Not available

22

Gravely TCA14966

Pump, Hydraulic RH

$841.99

$

Usually ships in 4-12 days

0

Gravely TCA14965

Pump, Hydraulic, LH

$841.99

$

Usually ships in 4-12 days

0

23

Gravely 06608700

Key, Woodruff .19 x .75 HRD #9

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00200954

Assembly, Rear Wheel Hub

$

$

Not available

25

Gravely 00150052

Bushing, Machine .750 x 1.25 x .048

$

$

Not available

26

Gravely 06714100

Pin, Center .125 x 2.00

$

$

Not available

27

Gravely 06528300

Nut-Hex-Slotted .75-20

$

$

Not available

28

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

Gravely 00111910

Cable Tie

$

$

Not available

29

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
