994108 (2052 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Foot Plate Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki

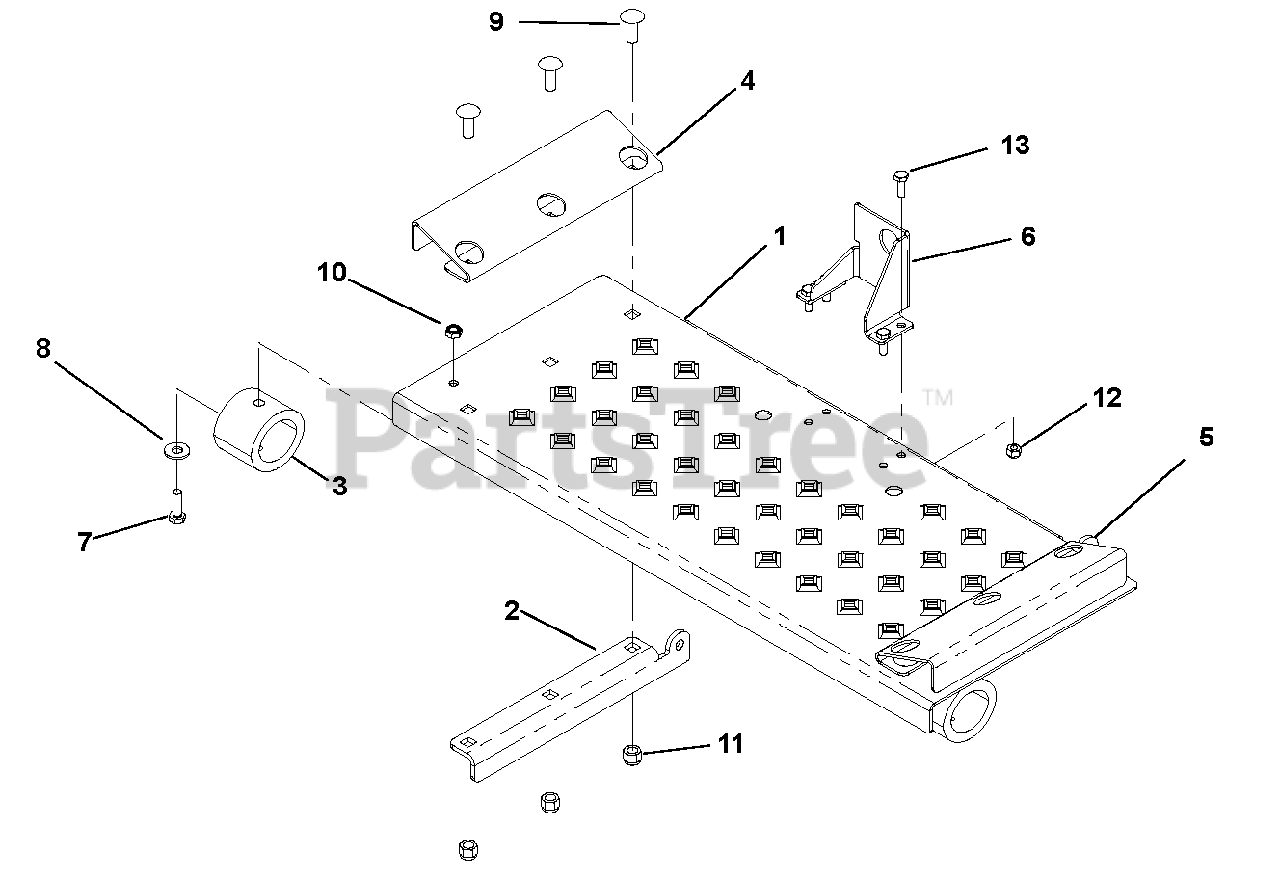

Foot Plate Parts Diagram

  • Title

1

Gravely 00200618

Plate, Platform

$

$

Not available

2

Gravely 00200619

Plate, Platform Tab RH

$

$

Not available

3

Gravely 00200655

Bumper, Miner GBR-6

$

$

Not available

4

Gravely 00200691

Wedge, Platform

$

$

Not available

5

Gravely 00200693

Plate, Platform Tab LH

$

$

Not available

6

Gravely 00200767

Anchor, OPC

$

$

Not available

7

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06212000

Bolt, Round Head Square Neck .38 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06530200

Locknut, .312-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06535800

Locknut, .38-16 Nyloc
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06531000

Locknut, .25-20 Nyloc
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05946800

Bolt, .25-20 x .750 Hex 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0
