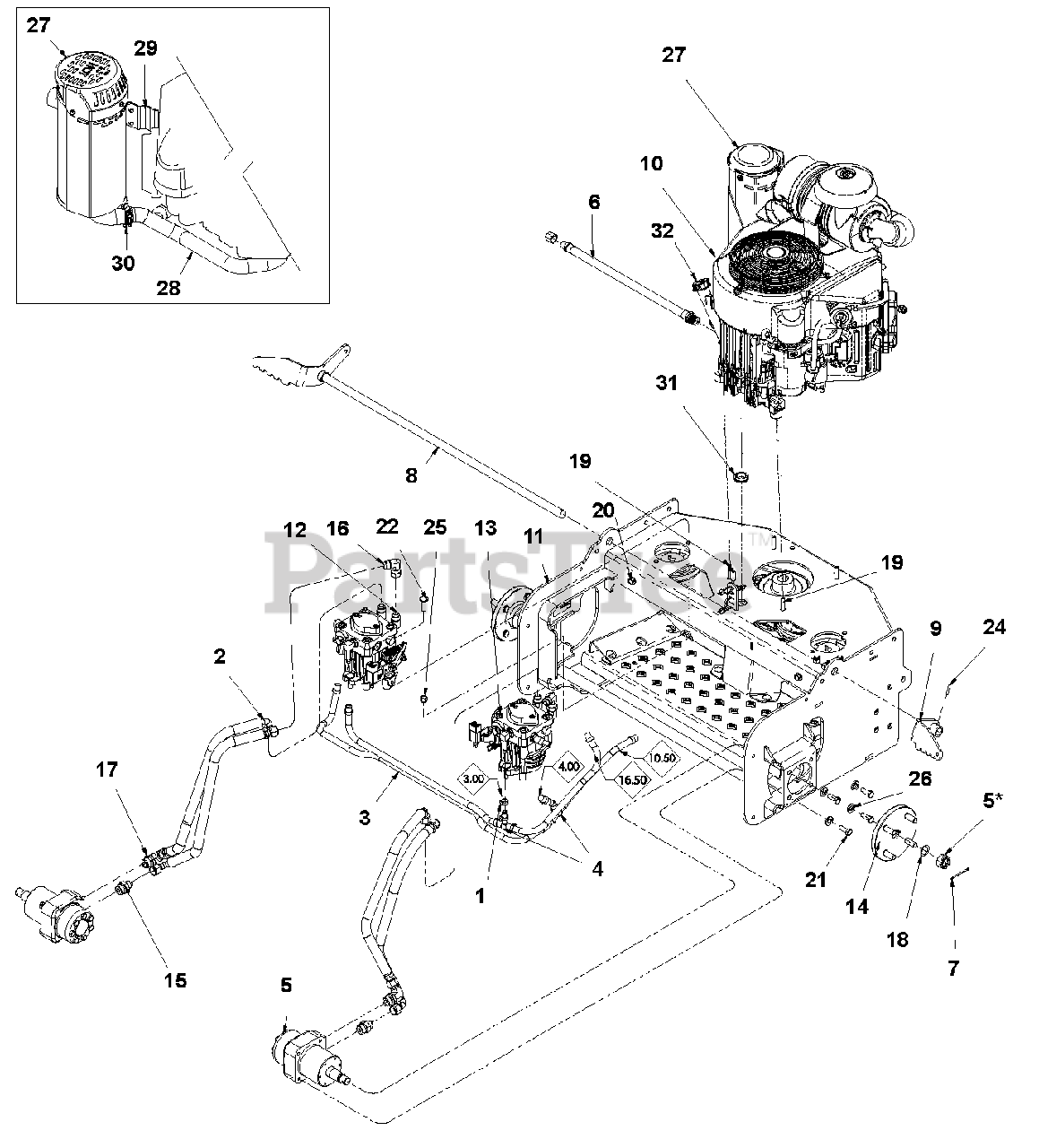

994108 (2052 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely D18379

Clamp, Hose - 1/2" Pinch

$3.99

$

In Stock, only 2 left!

0

2

Gravely D18394

Hose Assembly

$92.99

$

Usually ships in 4-12 days

0

3

Gravely DT5332

Hose, 3/8 SAE 30R7 Fuel & Oil

$5.99

$

Usually ships in 4-12 days

0

4

Gravely M86863

Fitting, TUN 3/8 Hose

$

$

Not available

5

Gravely 04915500

Motor, Wheel HGM-12P-7172 (*Includes Castle Nut, tighten to 163 N•m (120 lbf-ft))
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N•m (120 lbf-ft))

$905.99

$

Usually ships in 4-12 days

0

6

Gravely 04271700

Drain, M20 Oil

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 06714100

Pin, Cot .125 x 2.00 Extp Y

$

$

Not available

8

Gravely 00200612

Weldment, Brake Shaft

$

$

Not available

9

Gravely 00200616

Weldment, RH Brake Arm

$

$

Not available

10

Gravely 08200720

Engine, Kawasaki FX 600

$

$

Not available

11

Gravely 04308700

Weldment, Deck Frame w/Decals Gravely

$

$

Not available

12

Gravely 00200721

Assembly, HYD Pump (See Pump Components on page 16.)

Note: (See Pump Components on page 16.)

$

$

Not available

13

Gravely 00200722

Assembly, HYD Pump (See Pump Components on page 16.)

Note: (See Pump Components on page 16.)

$1612.99

$

Usually ships in 4-12 days

0

14

Gravely 00200954

Assembly, Rear Wheel Hub

$

$

Not available

15

Gravely 07025800

Fitting, ADP 3/4-16FJIC x 7/8-14MOR

$13.99

$

In Stock, only 2 left!

0

16

Gravely 0023104

Fitting, ADP MJIC-FSWJIC 6500-08-08

$

$

Not available

17

Gravely 07036500

Fitting, ADP JIC-ORB 2062-10-8S

$

$

Not available

18

Gravely 05500132

Bushing, Mach., .75 x 1.25 x .048
(Superseded to 00150052)

$

$

Not available

19

Gravely 05901507

Bolt, Hex .38 -16 x 1.25 FTHG5

$2.49

$

In Stock, only 3 left!

0

20

Gravely 00960044

Bolt, .375-16 x 1.00 FGH 8 Y

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 05900120

Bolt, .375-16 x 1.00 Hex 5 Y
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06224100

Bolt, .375-16 x 1.25 CRG 5 Y
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 06530200

Locknut, .3125-18 Nyloc Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05802900

Pin, Roll .156 x 1.00

$0.99

$

In Stock, Qty 18

0

25

Gravely 06535800

Locknut, .375-16 Nyloc Y
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

26

Gravely 06308800

Washers, .375 Medium Spring Lock
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 04311710

Muffler, Kawasaki FX OFS STD

$

$

Not available

28

Gravely 04311720

Manifold, EXH Kawasaki FX STD

$

$

Not available

29

Gravely 04311730

Bracket, Muffler Kawi FX STD

$

$

Not available

30

Gravely 04311740

Clamp, Muffler Kawi FX STD

$

$

Not available

31

Gravely 03384007

Grommet, Rub:88ID x 1.38OD x .14 GR

$

$

Not available

32

Gravely TCA15122

Cap, Oil Filler

$

$

Not available
