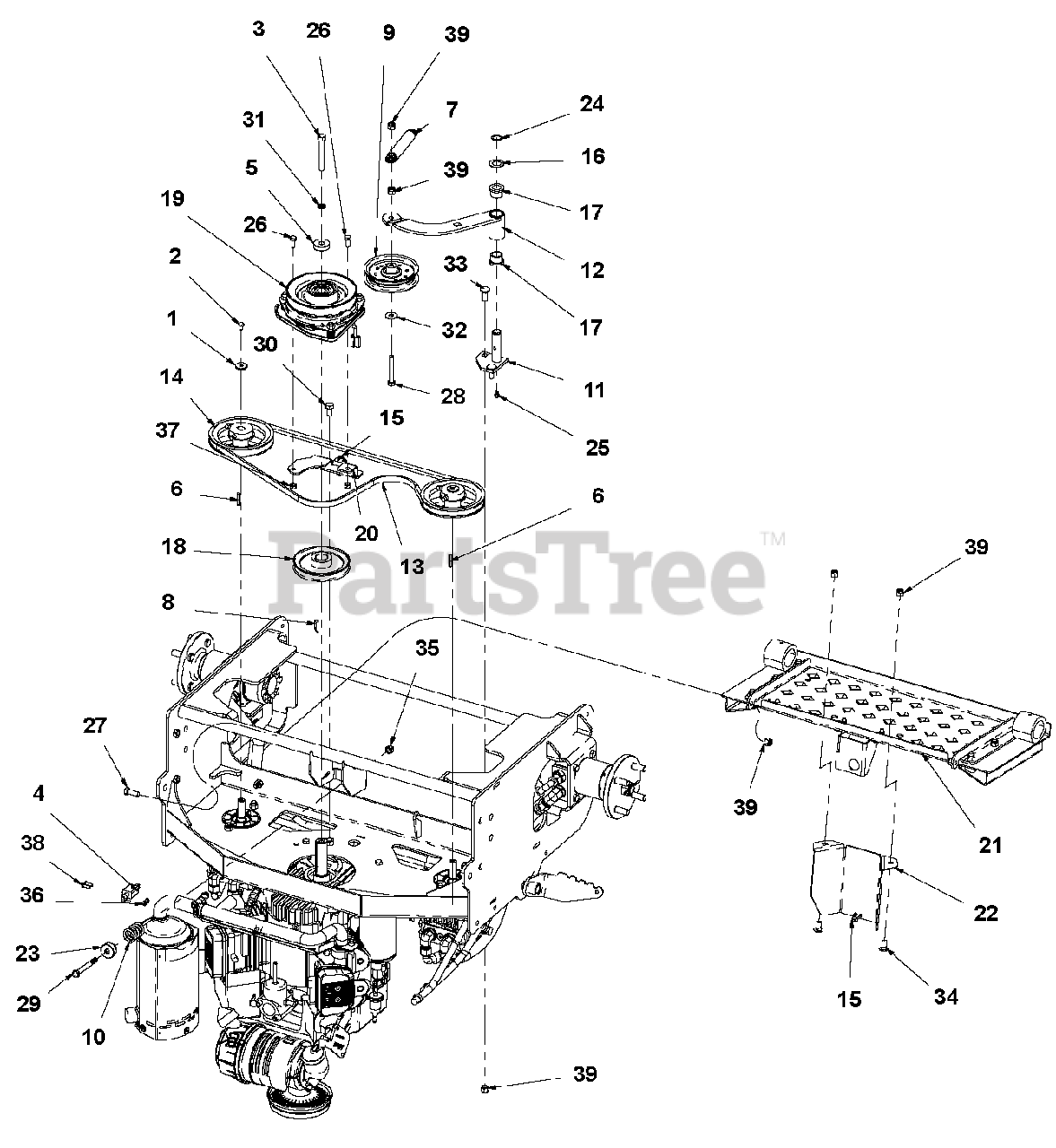

994108 (2052 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Clutch, Pump Components And Foot Plate Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 20hp Kawasaki

Clutch, Pump Components And Foot Plate Assembly Parts Diagram

  • Title

1

Gravely 06308000

Washer, .250 Wide Heavy Flat Y

$

$

Not available

2

Gravely 05900124

Bolt, M6 x 1.00 x 10 Hex 8.8 Y

$

$

Not available

3

Gravely 05900040

Bolt, Hex .44-20 x 2.25 Grade 5 EP80

$6.99

$

Usually ships in 4-12 days

0

4

Gravely D18038

Switch (N.0.)
(Superseded to 03657100)

Note: (N.0.)

$9.49

$

Usually ships in 4-12 days

0

5

Gravely D18056

Spacer, .468 x 1.38 x .375 Y

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 06600005

Key, M5 x M5 x M30 RD
(Superseded to D18067)

$

$

Not available

7

Gravely D18071

Spring, External

$11.99

$

Usually ships in 4-12 days

0

8

Gravely D18145

Key, .250 x .250 x .995 TPR

$

$

Not available

9

Gravely 07300039

Assembly, Idler 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Gravely 08300038

Spring, COM 1.22 x .162 x 2.50 Y
(Superseded to D38128)

$

$

Not available

11

Gravely GDA10004

Weldment, Pivot Idler Mount

$

$

Not available

12

Gravely GDA10005

Weldment, Idler Arm

$77.99

$

Usually ships in 4-12 days

0

13

Gravely 07200118

Belt, Pump Drive
(Superseded to GDU10025)

$46.99

$

In Stock, only 1 left!

0

14

Gravely TCA15316

Assembly, Pump Pulley w/Set Screw

$51.99

$

Usually ships in 4-12 days

0

15

Gravely 07519900

Cable Tie, .15 x 8.50

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 00150052

Bushing, MACH .750 x 1.25 x .048 Y

$

$

Not available

17

Gravely 00191179

Bearing, FLG .750 x 1.00 x .750 BRNZ

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07300121

Sheave, Engine 4.75 x 1.125

$177.99

$

Usually ships in 4-12 days

0

19

Gravely 03789900

Clutch Assy, Ogura GT1A-AR03

$349.99

$

In Stock, only 3 left!

0

20

Gravely 00200666

Plate, Clutch Dog

$51.99

$

Usually ships in 4-12 days

0

21

Gravely N/A

Assembly, Foot Plate (See Foot Plate on page 22.)

Note: (See Foot Plate on page 22.)

$

$

Currently unavailable

22

Gravely 00200769

Cover, OPC

$

$

Not available

23

Gravely 06400027

Washer, Spring Y
(Superseded to 00200770)

$

$

Not available

24

Gravely 05700135

Snap Ring, .750 x .042 External

$2.49

$

In Stock, only 4 left!

0

25

Gravely 07037900

Fitting, 1/4-28 STRGT Grease Zerk
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 05947000

Bolt, 5/16-18 x .750 Hex 5 Y
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05948700

Bolt, 3/8-16 x 1.00 Hex 5 Y
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05958400

Bolt, 3/8-16 x 2.50 Hex 5 Y
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 05961100

Bolt, 3/8-16 x 3.25 Hex 5 Y
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

30

Gravely 05900121

Bolt, 7/16-14 x .750 Hex 5 Y

$

$

Not available

31

Gravely 06308800

Washer, .438 Medium Spring Lock Y
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06435900

Washer, .375 Regular Flat Y
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06223600

Bolt, 3/8-16 x 1.00 Carriage Grade 5 Y
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

34

Gravely 06223900

Bolt,3/8-16x3/4 Car Grade 5 LN Y
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

35

Gravely 06529200

Nut, 3/8-16 Standard Hex Grade 5 Y
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

36

Gravely 06536000

Locknut, 10-24 Nyloc Y
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06530200

Locknut, 5/16-18 Nyloc Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06111100

Screw, 10-24 x .625 PAN PHL MACY

$0.99

$

In Stock, Qty 12

0

39

Gravely 06535800

Locknut, 3/8-16 Nyloc Y
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
