994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Wheel And Strut Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

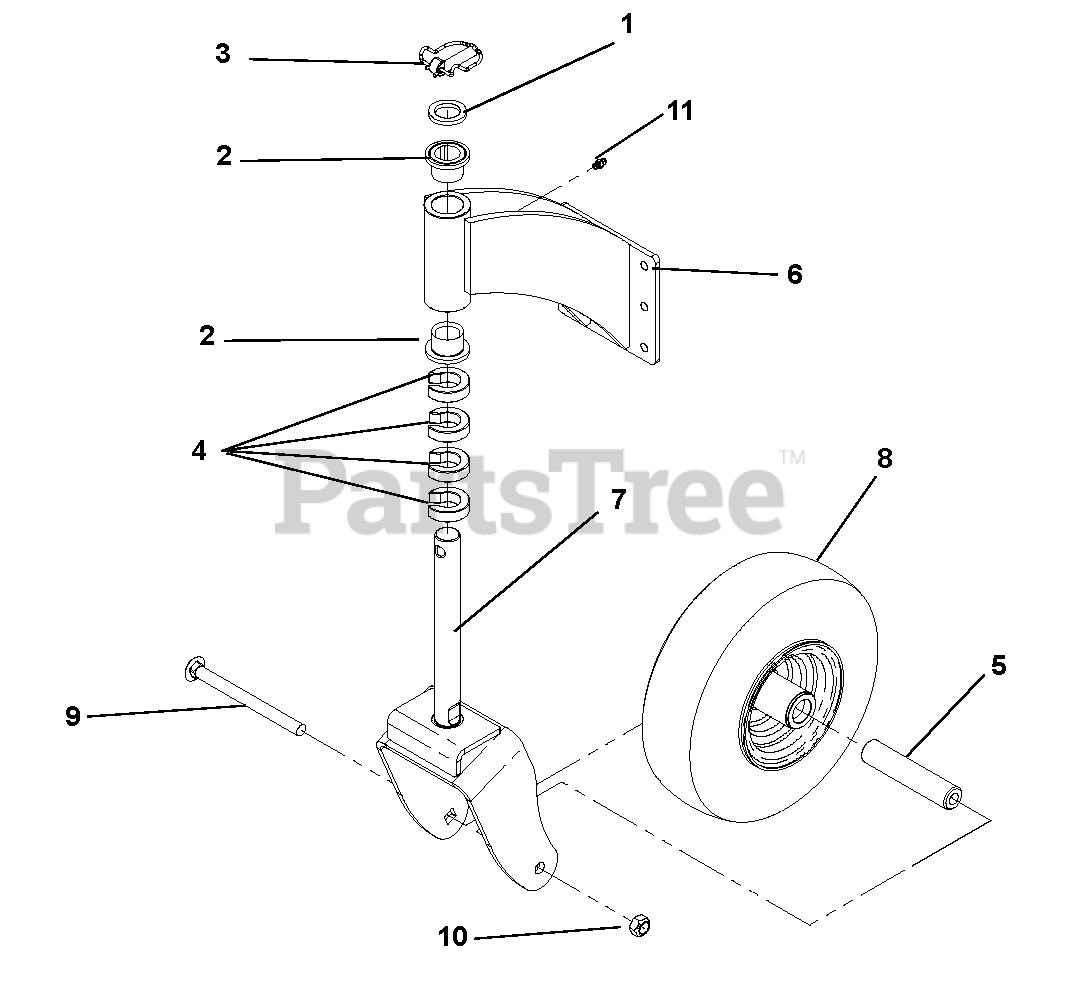

Wheel And Strut Assembly Parts Diagram

  • Title

1

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

2

Gravely D18076

Bearing, FLG 1.00 x 1.25 x 1.00

$6.99

$

In Stock, only 3 left!

0

3

Gravely 00161397

Pin, Lock .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

4

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .50 (48-inch Decks)

Note: (48-inch Decks)

$3.99

$

In Stock, only 3 left!

0

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .50 (52-inch Decks)

Note: (52-inch Decks)

$3.99

$

In Stock, only 3 left!

0

5

Gravely 00191049

Tube, 1.00 x .50 x 4.76

$51.99

$

In Stock, only 2 left!

0

6

Gravely 00201306

Weldment, Caster Mount Bracket (48-inch Decks)

Note: (48-inch Decks)

$

$

Not available

Gravely 00200175

Weldment, Caster Mount Bracket (52-inch Decks)

Note: (52-inch Decks)

$

$

Not available

7

Gravely 00201309

Weldment, Front Wheel Fork (48-inch Decks)

Note: (48-inch Decks)

$206.99

$

Usually ships in 4-12 days

0

Gravely 00200176

Weldment, Front Wheel Fork (52-inch Decks)

Note: (52-inch Decks)

$219.99

$

Usually ships in 4-12 days

0

8

Gravely 00200778

Wheel, Front 11 x 4 x 5

$113.99

$

In Stock, only 1 left!

0

9

Gravely 06207600

Bolt, Round Head Square Neck .50-13 x 6.00
(Superseded to 06223400)

$9.49

$

In Stock, only 2 left!

0

10

Gravely 06528200

Nut, Locking-Cone Grade C

$3.99

$

In Stock, only 3 left!

0

11

Gravely 07037900

Grease Zerk, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0
