994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Fuel Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

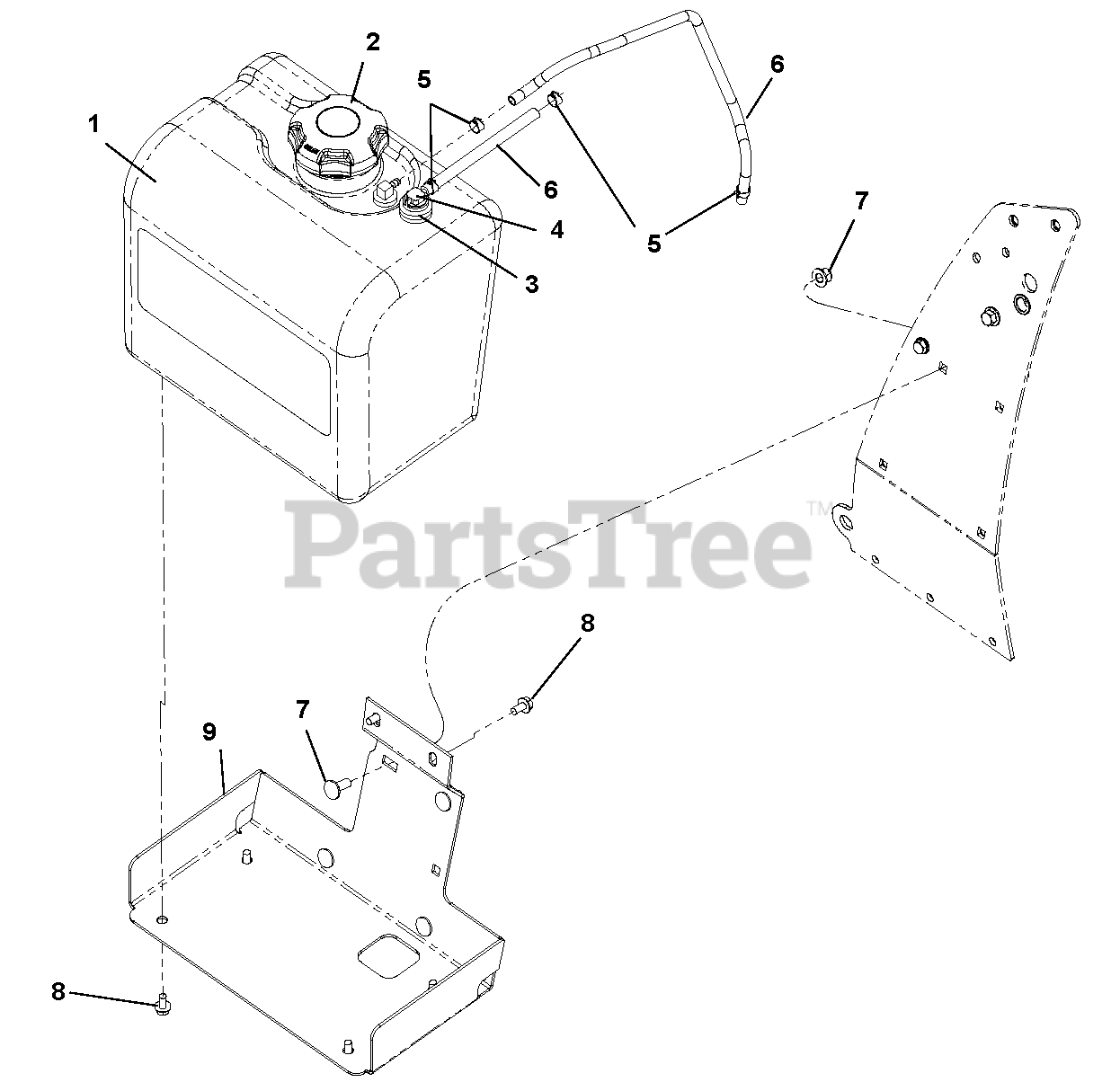

Fuel Components Parts Diagram

  • Title
1

Gravely 04328200

Assy, Gravely EPA Fuel Tank (Inclludes items 2, 3, 4)

Note: (Inclludes items 2, 3, 4)

$

$

Not available

2

Gravely 04237300

Cap, Fuel
(Superseded to 09190300)

$33.99

$

In Stock, Qty 20+

0

3

$9.49

$

In Stock, Qty 20+

0

4

Gravely TCA15048

Fuel Pickup

$

$

Not available

5

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03278100

Hose, .25 Low-Perm Bulk Gas (33.5 and 22")

Note: (33.5 and 22")

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06534900

Nut, Spin Lock Flange .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06212000

Bolt, Round Head Square Neck .375-16 x 1.00 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06006104

Screw, Hex Flat M8 x 1.25 x 16 10.9

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 00200603

Bracket, Fuel Tank Mounting

$

$

Not available
