994107 (2048 FX) - Gravely Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki (SN: 000101 & Above) Console Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Fixed Deck, 20hp Kawasaki

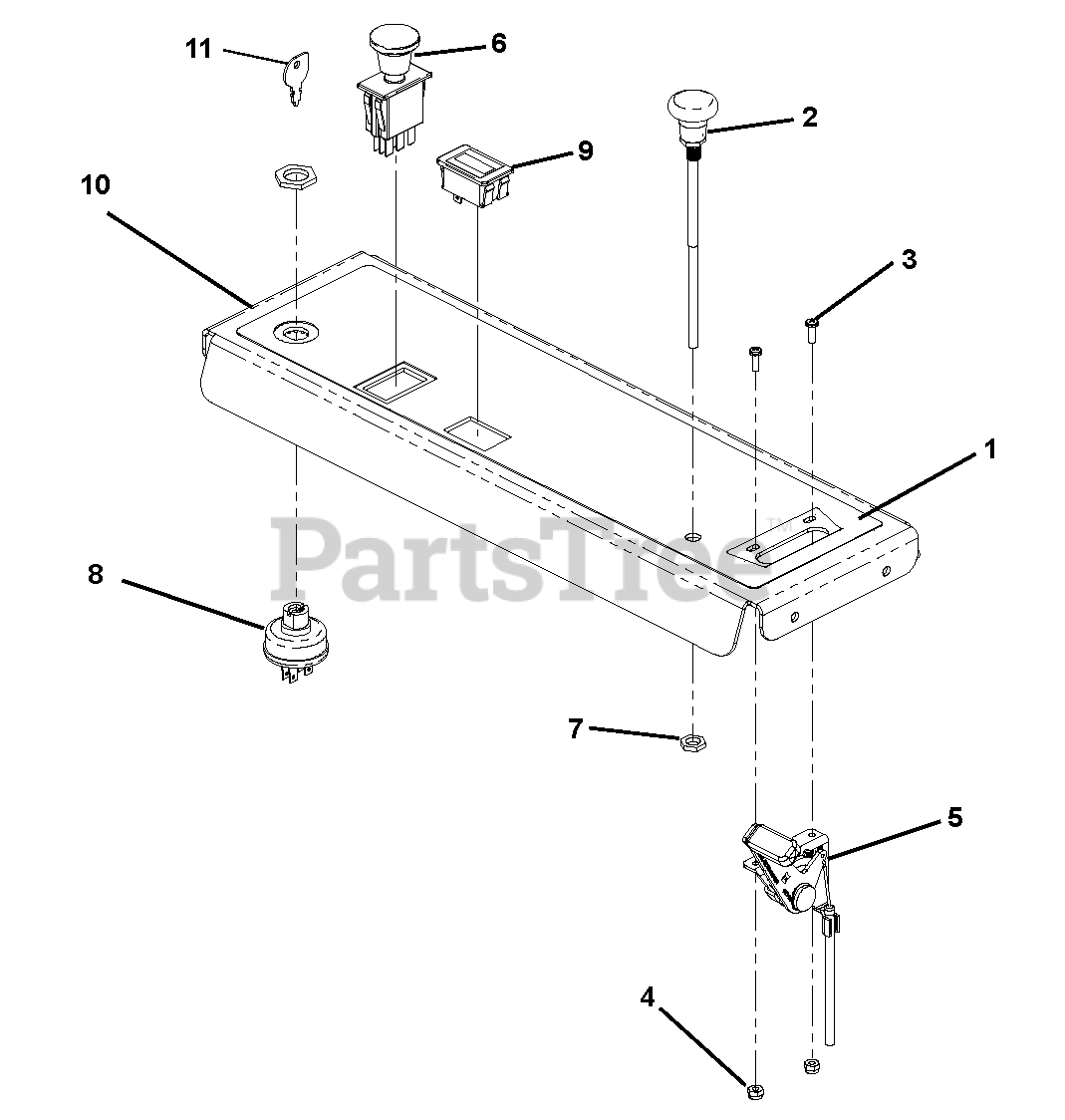

Console Components Parts Diagram

  • Title
1

Gravely 07700026

Decal, Console Pro Stance

$

$

Not available

2

Gravely 06900435

Cable, Choke

$68.99

$

Usually ships in 4-12 days

0

3

Gravely 06200013

Screw, 8-32 x .5

$

$

Not available

4

Gravely 06531300

Nut, Elastic Stop 8-32

$0.99

$

Usually ships in 4-12 days

0

5

Gravely 06900436

Cable, Throttle

$68.99

$

Usually ships in 4-12 days

0

6

Gravely 04311800

Switch, Clutch (With Graphic) (PTO)

Note: (With Graphic) (PTO)

$45.99

$

In Stock, only 1 left!

0

7

Gravely 06529400

Nut, 3/8 UNF Hex Grade 5
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 00180620

Switch, Key - 3 Position (Inclludes item 13)

Note: (Inclludes item 13)

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 03966800

Meter, Hour w/Maintenance
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

10

Gravely 03731501

Assembly, Control Panel w/Decals

$

$

Not available

11

Gravely 00105684

Key, Ignition (Service Only)
(Superseded to 02460700)

Note: (Service Only)

$7.99

$

In Stock, Qty 20+

0
