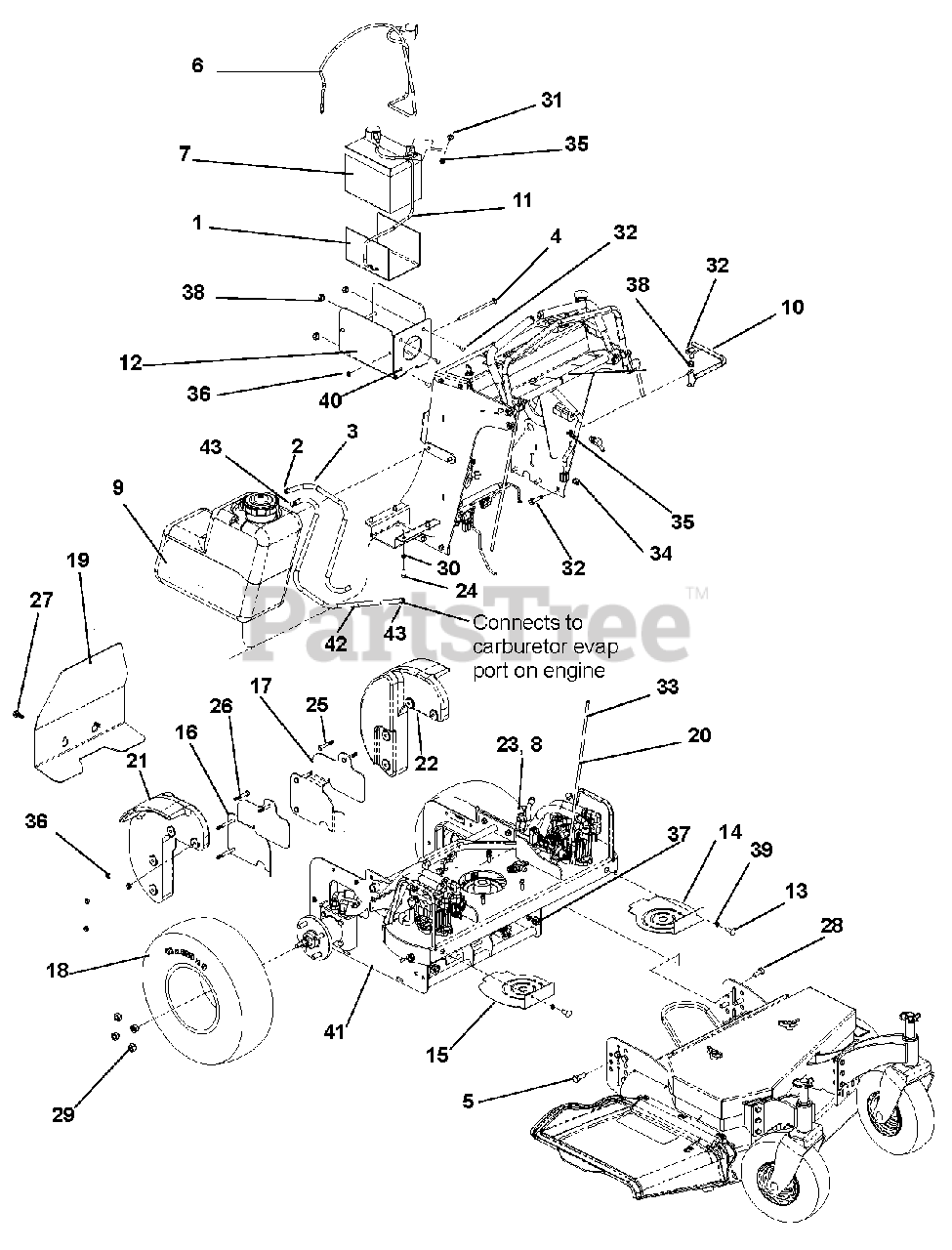

994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

Main Frame Assembly Parts Diagram

  • Title

1

Gravely D28159

Pad, Battery Insulator

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 03278800

Clamp, Hose (Red) #

Note: (Red) #

$1.49

$

In Stock, Qty 20+

0

3

Gravely 03278100

Hose, 1/4" Id Low Perm Fuel 50

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06200128

Bolt, Round Head Square Neck, 5/16-18 x 6"

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 07070119

Bolt, .50 x 1.06 x .375-16 Sld 5 Y

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00191216

Cable, Battery Starter - 48"

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 00191832

Battery, 12V-U1-CCA 270 min
(Superseded to 01554800)

$

$

Not available

8

Gravely 00200658

Pin, Clevis Spg 3/8" Yoke Spec Y

$

$

Not available

9

Gravely 04952900

Tank, Fuel

$

$

Not available

10

Gravely 00201012

Weldment, Reservior Guard

$

$

Not available

11

Gravely 00191227

Cable, Battery - 25" Ground

$

$

Not available

12

Gravely 00201362

Console Battery Bracket, w/Decal

$

$

Not available

13

Gravely 05946800

Bolt, .25-20 x .750 Hex 5 Y
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00201327

Shield, LH Pump

$

$

Not available

15

Gravely 00201330

Shield, RH Pump

$

$

Not available

16

Gravely 03731200

Shield, RH Motor w/Decal

$

$

Not available

17

Gravely 03731300

Shield, LH Motor w/Decal

$

$

Not available

18

Gravely 00201150

Assembly, Tire/Wheel 18/6.5 x 8 Slvr

$136.99

$

Usually ships in 4-12 days

0

19

Gravely 00298420

Shield, Engine w/Decal

$

$

Not available

20

Gravely 00201194

Rod, Control 5/16 x 22.75 Y
(Superseded to AA201194)

$

$

Not available

21

Gravely 00201202

RH Cast Weight Machined

$

$

Not available

22

Gravely 00201204

LH Cast Weight Machined

$

$

Not available

23

Gravely 00251907

Clevis, .38-24 Adjustment

$15.99

$

Usually ships in 4-12 days

0

24

Gravely 05947000

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05957200

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 05962500

Bolt, .312-18 x 3.00 Hex 5 Y
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

27

Gravely 00960044

Bolt, .38-16 x 1.00 Fgh 8 Y

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 05958900

Bolt, Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

29

Gravely 06517600

Nut, .50-20 Lug C
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06308600

Washer, .313 Med Sprg Lock Y
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05900122

Bolt, .25-20 x .625 Wsh Y

$

$

Not available

32

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00 G 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06529500

Nut, Hex .312-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

34

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06543300

Nut, Spin Lock-Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

39

Gravely 06308400

Washer, .313 Medium Spring Lock Y
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 03743400

Trim, Rubber Edge 2"

$

$

Not available

41

Gravely N/A

Power Unit 19 Narrow (see page 12)

Note: (see page 12)

$

$

Currently unavailable

42

Gravely 03375900

Hose, Fuel Low-Perm Bulk Gas .188

$0.99

$

Usually ships in 4-12 days

0

43

Gravely 04097700

Clamp, Hose Spring .188

$

$

Not available
