994106 (1634 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki (SN: 000101 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 16hp Kawasaki

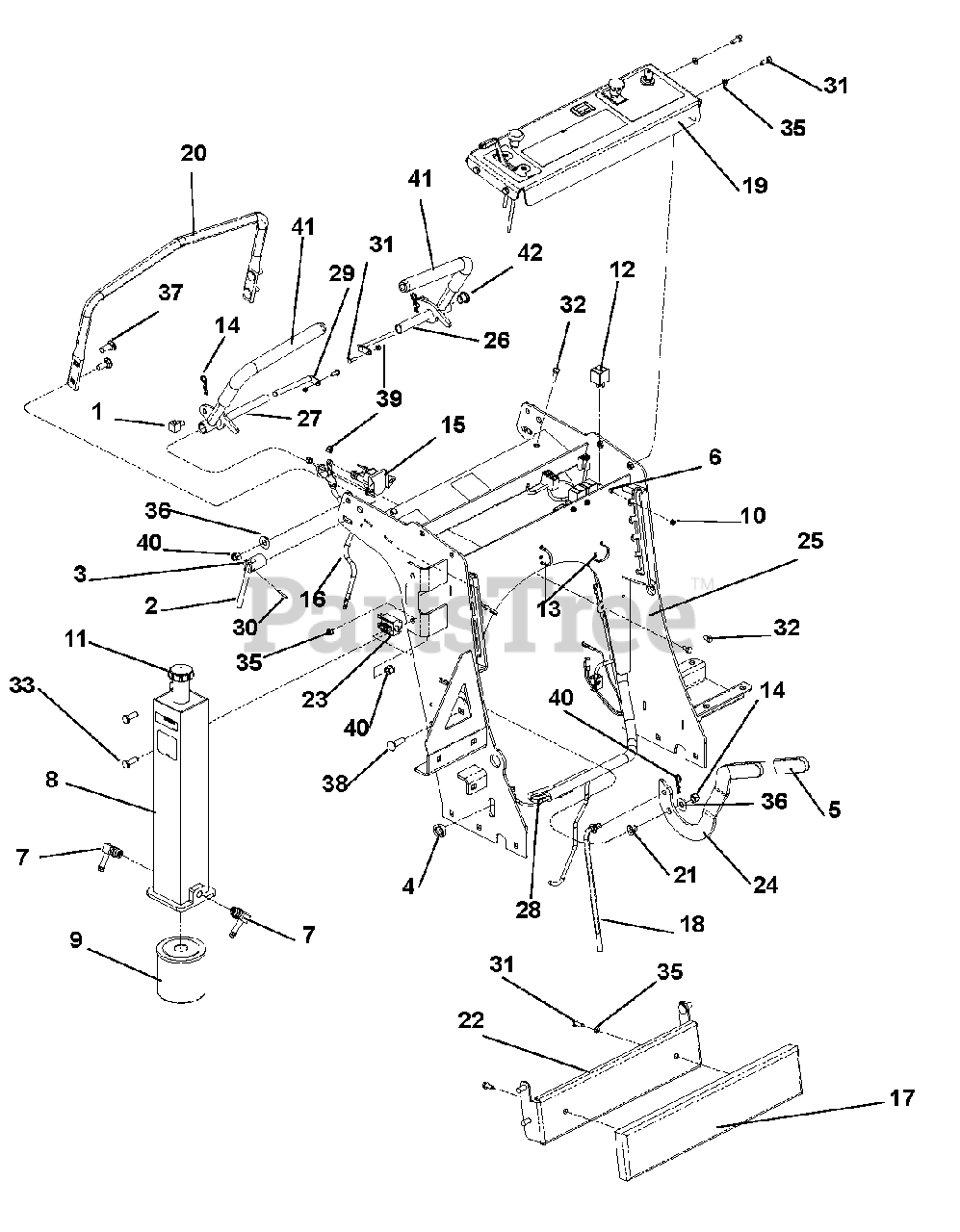

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely D13028

Swivel Adjuster

$83.99

$

Usually ships in 4-12 days

0

2

Gravely D13309

Lever, Lock Y

$

$

Not available

3

Gravely D13308

Base, Lock Lever Y

$

$

Not available

4

Gravely 03384007

Grommet, Rubber .88 ID x 1.38 OD x .14

$3.49

$

Usually ships in 4-12 days

0

5

Gravely D18079

Grip, PVC .250 x 1.00 x 3.63

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06200013

Screw, 8-32 x .50 Y

$

$

Not available

7

Gravely D24028

Fitting, 90 9/16 MOR x 3/8 Hose

$9.99

$

In Stock, Qty 6

0

8

Gravely TCA15373

Weldment, Reservior Hydraulic w/Decal

$

$

Not available

9

Gravely GDA10137

Filter, Oil

$28.99

$

In Stock, only 3 left!

0

10

Gravely 06531300

Nut, 8-32 Elastic Stop

$0.99

$

Usually ships in 4-12 days

0

11

Gravely TCA15122

Cap, Filler Oil

$27.99

$

In Stock, only 1 left!

0

12

Gravely 00102770

Relay, Iso Mini Elec.

$25.99

$

Usually ships in 4-12 days

0

13

Gravely 07519900

Cable Tie, .15 x 8.50

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06703600

Pin, Hair .091 x 1.63
(Superseded to 00121080)

$2.99

$

In Stock, Qty 9

0

15

Gravely 03551000

Solenoid, 12 V Starter

$39.99

$

In Stock, Qty 13

0

16

Gravely 00180842

Cable, 12" Starter

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 00200606

Pad, Thigh

$

$

Not available

18

Gravely 00200615

Link, Brake

$28.99

$

Usually ships in 4-12 days

0

19

Gravely 03731501

Assembly, Control Panel w/Decals

$

$

Not available

(switches sold seperately)

(switches sold seperately)

Note: (switches sold seperately)

$

$

Not available

20

Gravely 03730751

Handle, Support

$

$

Not available

21

Gravely 00200671

Bushing, Brake Pivot Y

$

$

Not available

22

Gravely 00200690

Weldment, Thigh Pad Bracket

$64.99

$

Usually ships in 4-12 days

0

23

Gravely 00200705

Switch, NO-NO-NC Grey Plunger

$17.99

$

In Stock, only 1 left!

0

24

Gravely 00201022

Brake Lever, Offset

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 50546013

Weldment, Console 34 w/Decals

$

$

Not available

26

Gravely 03731000

RH Control Lever w/Grip

$246.99

$

In Stock, only 1 left!

0

27

Gravely 03730900

LH Control Lever w/Grip

$

$

Not available

28

Gravely 04375000

Harness, Wiring

$

$

Not available

29

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

30

Gravely 05800005

Pin, Spring 5/32 x 1

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

32

Gravely 05947700

Bolt, .25-20 x 1.00 Hex 5 Y
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

33

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06533200

Nut, .25-20 Standard Hex Grade 5 Y
(Superseded to 06500916)

$0.99

$

In Stock, Qty 12

0

35

Gravely 06308400

Washer, .250 Med Spring Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 18

0

36

Gravely 06435900

Washer, .375 Reg Flat
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

38

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

39

Gravely 06530100

Nut, Locking-Nylon .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

41

Gravely D18093

Grip, Control
(Superseded to 07500222)

$7.99

$

In Stock, only 1 left!

0

42

Gravely 00200116

Bearing, Flange .500 x .625 x .500 Bronze

$5.99

$

Usually ships in 4-12 days

0
