994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000298 - 000500) Foot Plate And Console Components Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

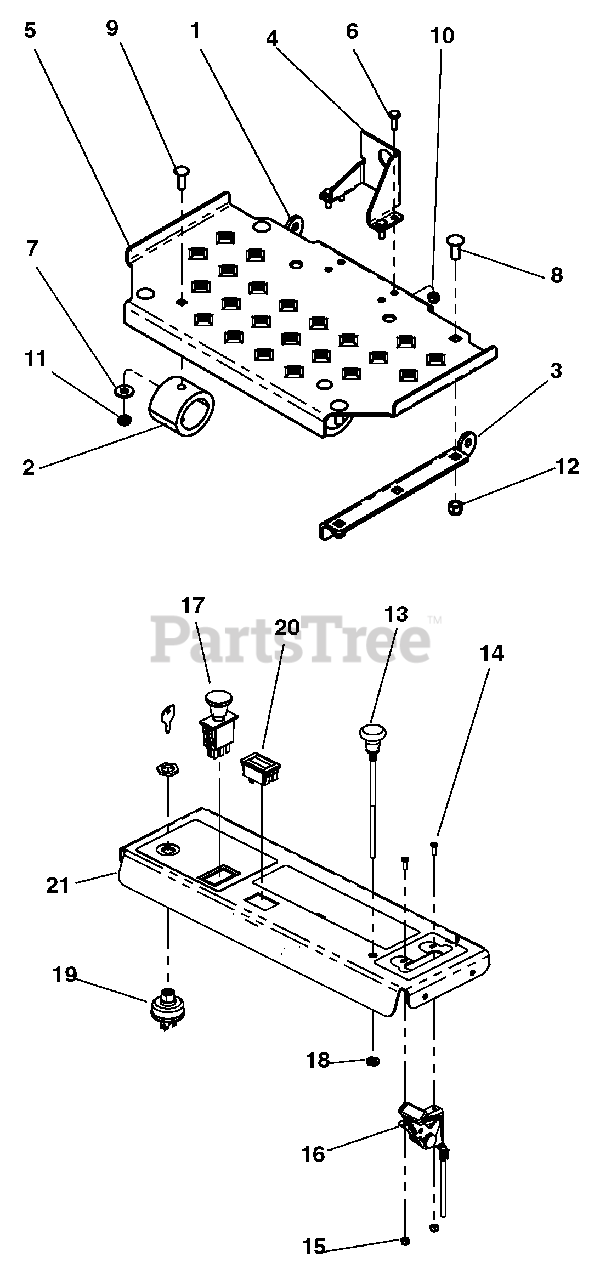

Foot Plate And Console Components Parts Diagram

  • Title
1

Gravely 00897200

Plate, Platform Tab LH
(Superseded to 00200619)

$

$

Not available

2

Gravely 00941800

Bumper, Miner GBR-6
(Superseded to 00200655)

$

$

Not available

3

Gravely 00938400

Plate, Platform Tab Left Hand
(Superseded to 00200693)

$

$

Not available

4

Gravely 00941300

Anchor, Operator Presence Control

$

$

Not available

5

Gravely 00201136

Platform

$

$

Not available

6

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435700

Washer, Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06212000

Bolt, .375-16 x 1.00 Round Head Square Neck G 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06216100

Bolt, .312-18 x 1.00 Round Head Square Neck Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06531000

Nut, Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

13

Gravely D18427

Cable, Choke

$51.99

$

Usually ships in 4-12 days

0

14

Gravely 06200013

Screw, 8-32 x .50 Pan PHL Y

$

$

Not available

15

Gravely 06531300

Nut, 8-32 Elastic Stop

$0.99

$

Usually ships in 4-12 days

0

16

Gravely TCA15051

Cable, Throttle

$21.99

$

Usually ships in 4-12 days

0

17

Gravely 00136574

Switch, PTO Engagement

$28.99

$

In Stock, only 1 left!

0

18

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 00180620

Switch, Key - 3 Position

$35.99

$

Usually ships in 4-12 days

0

20

Gravely 00456600

Meter, Hour Digital
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

21

Gravely 03731501

Top, Console w/Decals

$

$

Not available
