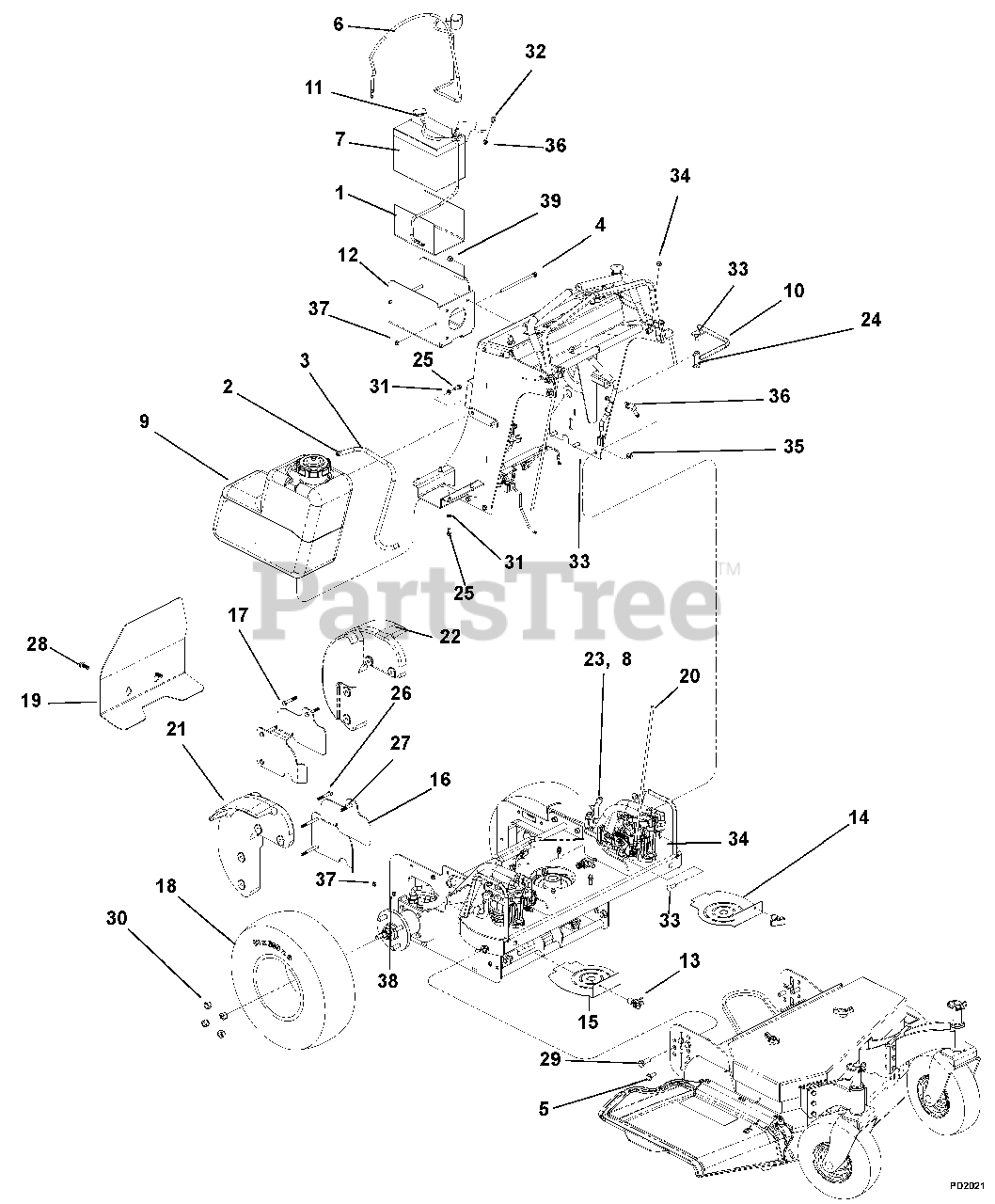

994104 (1934 FX) - Gravely Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 - 000297) Main Frame Parts Diagram

Pro-Stance 34" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Main Frame Parts Diagram

  • Title

1

Gravely 00877200

Pad, Battery Insulator
(Superseded to D28159)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 06900108

Clamp, Hose (Red) #
(Superseded to 03278800)

Note: (Red) #

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00950900

Hose, 1/4" Id Low Perm Fuel 50

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 05900107

Cap Screw, 5/16" x 6"
(Superseded to 06200128)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 00135139

Bolt, 1/2 x 1.06 x 3/8-16 Sld 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00888800

Cable, Battery Starter -48"
(Superseded to 00181148)

$38.99

$

Usually ships in 4-12 days

0

7

Gravely 00191832

Battery, 12V-U1-CCA 270 min
(Superseded to 01554800)

$

$

Not available

8

00670005

Pin, Clevis Spg 3/8" Yoke Spec Y

$

$

Not available

9

Gravely 00201004

Tank, Fuel
(Superseded to AA201004)

$

$

Not available

10

Gravely 00201012

Weldment, Reservior Guard

$

$

Not available

11

Gravely 00201019

Cable, Battery -25" Ground

$

$

Not available

12

Gravely 00201023

Console Battery Bracket

$

$

Not available

13

Gravely 00201090

Latch, Beckson

$

$

Not available

14

Gravely 00201092

Shield, LH Pump

$

$

Not available

15

Gravely 00201093

Shield, RH Pump

$

$

Not available

16

Gravely 00201094

Shield, RH Motor

$

$

Not available

17

Gravely 00201095

Shield, LH Motor

$

$

Not available

18

Gravely 00201150

Assy, Tire/Whl 18/6.5x8 Slvr

$136.99

$

Usually ships in 4-12 days

0

19

Gravely 00201191

Shield, Engine

$

$

Not available

20

Gravely 00201194

Rod, Control 5/16 x 22.75 Y
(Superseded to AA201194)

$

$

Not available

21

Gravely 00201202

RH Cast Weight Machined

$

$

Not available

22

Gravely 00201204

LH Cast Weight Machined

$

$

Not available

23

Gravely 08800400

Clevis, .38-24 Adjustment

$11.99

$

Usually ships in 4-12 days

0

24

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05947000

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 00960027

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00960031

Bolt, 5/16-18 x 3.00 Hex 5 Y
(Superseded to 05901933)

$3.99

$

In Stock, only 4 left!

0

28

Gravely 00960044

Bolt, 3/8-16 x 1.00 Fgh 8 Y

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

30

Gravely 00960526

Nut, 1/2-20 Lug C
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 00960601

Washer, .313 Med Sprg Lock Y

$

$

Not available

32

Gravely 05900122

Bolt, 1/4-20 x .625 Wsh Y

$

$

Not available

33

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06529500

Nut, Hex .312-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06543300

Nut, Spin Lock-Flange .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 06535800

Nut, Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0
