994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000501 & Above) Drive Controls and Linkage Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

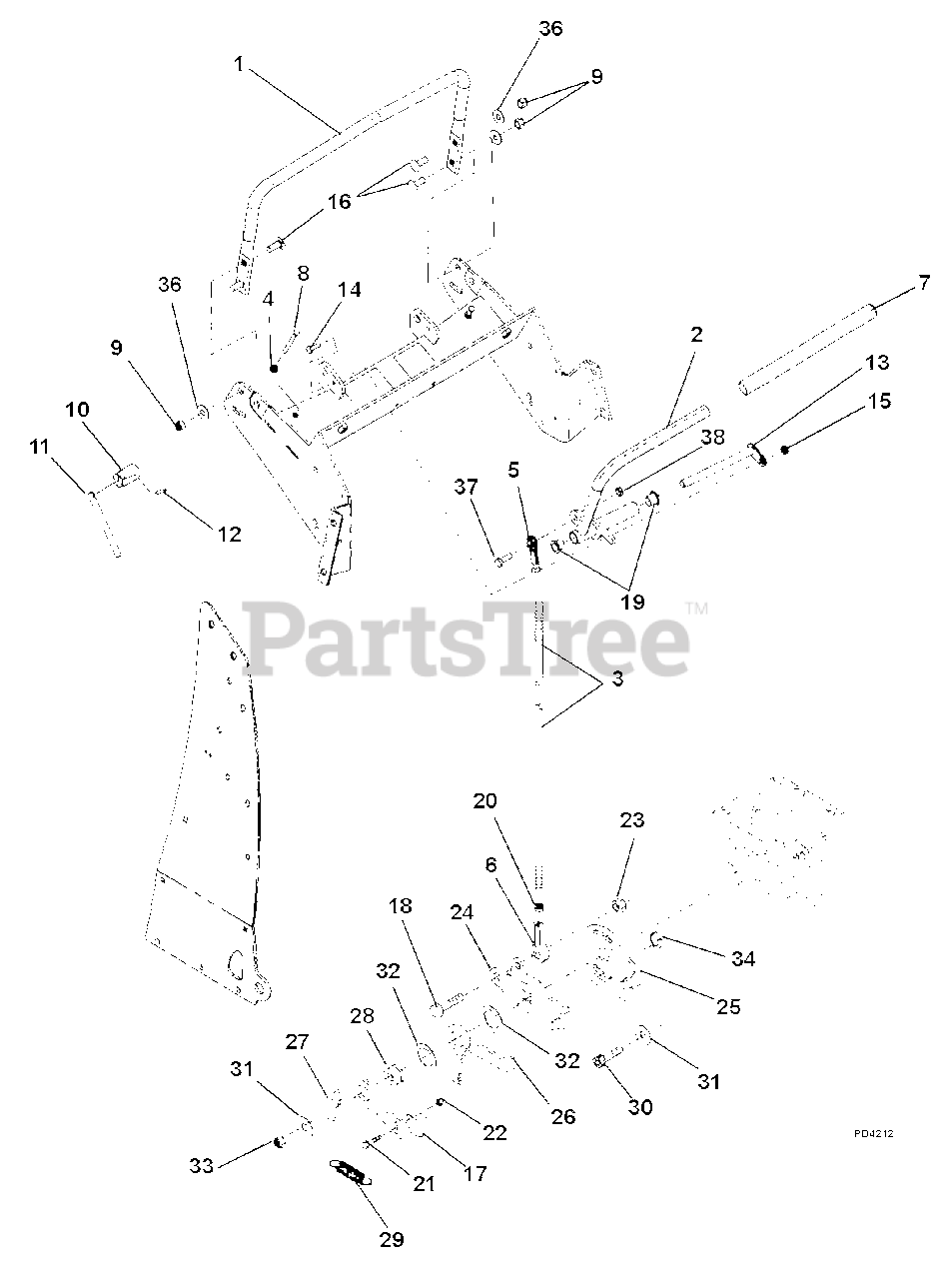

Drive Controls and Linkage Parts Diagram

  • Title

1

Gravely 03730751

Support, Handle

$112.99

$

Usually ships in 4-12 days

0

2

Gravely 03730900

LH Control Lever w/ Grip

$

$

Not available

Gravely 03731000

RH Control Lever w/ Grip

$246.99

$

In Stock, only 1 left!

0

3

Gravely 03787300

Control Rod

$

$

Not available

4

Gravely 06500026

Flange Nut, M16 x 1.0
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 03787200

Alignaball, 5/16 LH Thread
(Superseded to 05298700)

$

$

Not available

6

Gravely 03787100

Alignaball, 5/16 RH Thread

$12.99

$

In Stock, only 2 left!

0

7

Gravely D18093

Grip, Control
(Superseded to 07500222)

$7.99

$

In Stock, only 1 left!

0

8

Gravely 05900111

Cap Screw, Reverse Stop M6 x 1

$

$

Not available

9

Gravely 06542400

Nut, Lock, Nylon M10-1.5

$

$

Not available

10

Gravely D13308

Base, Lock Lever

$

$

Not available

11

Gravely D13309

Lever, Lock

$

$

Not available

12

Gravely 05800005

Pin, Spring 5/32 x 1

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06531000

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 05943000

Bolt, Hex M10 x 1.5 x 25

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 00191256

Switch, Plunger (Double Pole) N.O.
(Superseded to 08828100)

Note: (Double Pole) N.O.

$20.99

$

In Stock, only 1 left!

0

18

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00200116

Bearing, Flange .500 x .620 x .500

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

21

Gravely 06111100

Screw-Machine 10-24 x .625

$0.99

$

In Stock, Qty 12

0

22

Gravely 06536000

Nut-Locking-Nylon 10-24 w/ Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06529800

Nut, Locking, Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Gravely TCU19201

Arm, Control Return

$

$

Not available

25

Gravely TCU19202

Arm, Return

$

$

Not available

26

Gravely TCU18929

Arm, RH Inner Return

$

$

Not available

Gravely TCU18931

Arm, LH Inner Return

$

$

Not available

27

Gravely TCU18932

Arm, LH Outer Return

$

$

Not available

Gravely TCU18930

Arm, RH Outer Return

$

$

Not available

28

Gravely TCU19203

Spacer, Return

$

$

Not available

29

Gravely TCU19204

Spring, Extension

$

$

Not available

30

Gravely 05900119

Screw, 5/16 x 1 Patch Lock

$

$

Not available

31

Gravely 06400023

Washer
(Superseded to 08611200)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 06400024

Washer, Nylon

$

$

Not available

33

Gravely 06537000

Nut, Center Lock .31-24

$

$

Not available

34

Gravely TCU19208

Spacer

$

$

Not available

35

Gravely 06436200

Washer, Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06435900

Washer, Flat, Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
