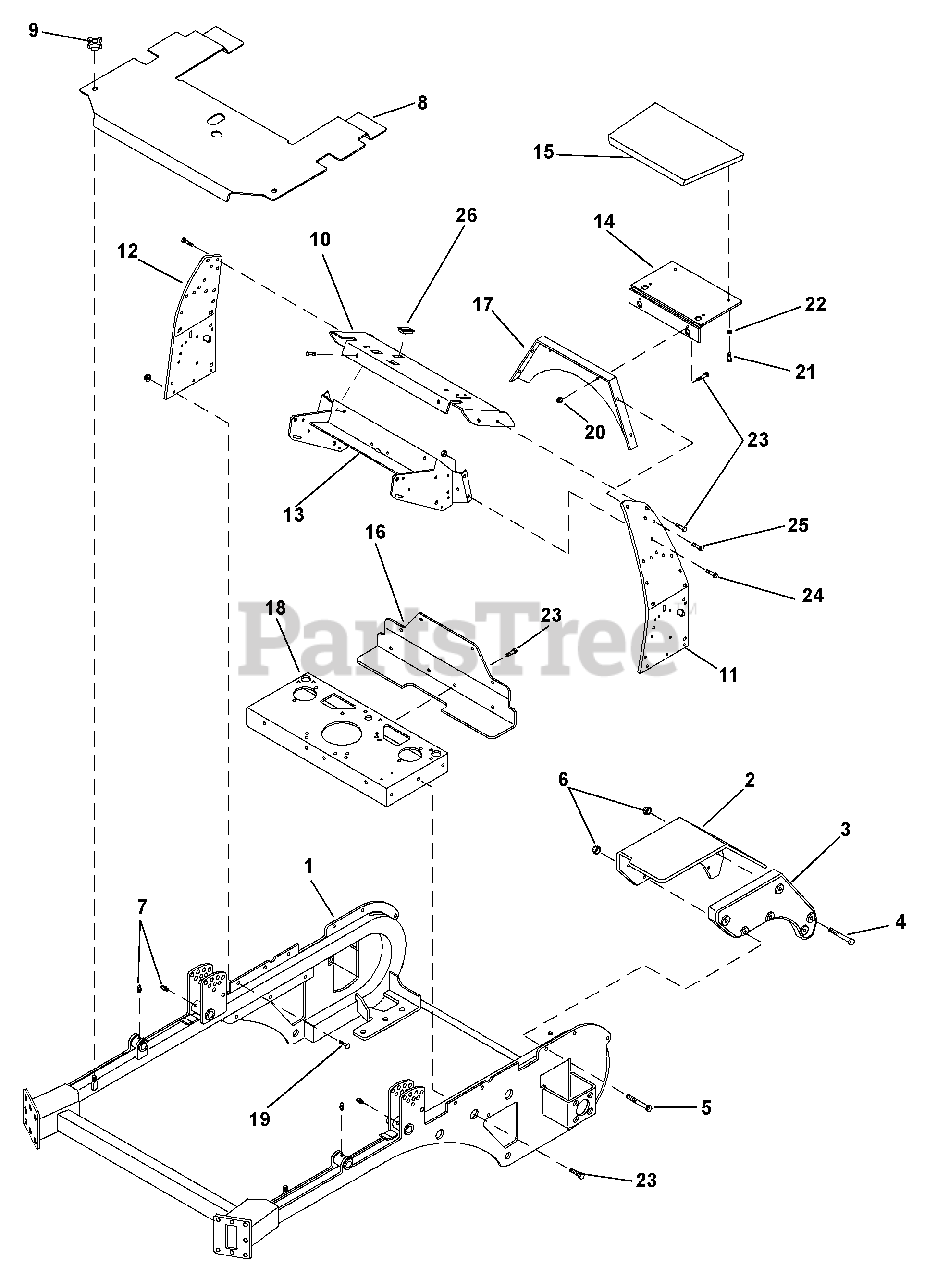

994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000101 - 000500) Main Frame, Traction Deck And Console Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

Main Frame, Traction Deck And Console Parts Diagram

  • Title

1

08813007

Frame

$

$

Not available

2

Gravely 00874900

Fender, Left
(Superseded to 00893700)

$59.99

$

Usually ships in 4-12 days

0

Gravely 00874800

Fender, Right
(Superseded to 00893600)

$59.99

$

Usually ships in 4-12 days

0

3

Gravely 00885800

Weight
(Superseded to 00200038)

$

$

Not available

4

Gravely 05975300

Bolt, Hex M8 x 1.25 x 65

$

$

Not available

5

50976800

Bolt, Hex, M8 x 1.25 x 70

$

$

Not available

6

Gravely 06541700

Nut, Locking, Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

7

Gravely 00878300

Lubrication Fitting

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 00883000

Deck Shield Assembly (994100)
(Superseded to 00894200)

Note: (994100)

$59.99

$

Usually ships in 4-12 days

0

09579007

Deck Shield Assembly (994103)

Note: (994103)

$

$

Not available

9

09551007

Knob, 3/8-16 Insert

$

$

Not available

10

Gravely 00880800

Control Console
(Superseded to 00894600)

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 00881200

Side Bracket, Left

$

$

Not available

12

Gravely 00881100

Side Bracket, Right

$

$

Not available

13

Gravely 00882900

Handle Mount
(Superseded to 00895100)

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 00875000

Plate, Thigh Pad

$

$

Not available

25

Gravely 05959400

Bolt, Hex, .38-16 x .75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 00881900

Thigh Pad
(Superseded to 00200152)

$

$

Not available

16

Gravely 00883200

Shield
(Superseded to 00895000)

$39.99

$

Usually ships in 4-12 days

0

17

Gravely 00874700

Plate
(Superseded to D15305)

$

$

Not available

18

Gravely 00879800

Engine/Traction Deck
(Superseded to 00894100)

$82.99

$

Usually ships in 4-12 days

0

19

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

20

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$

$

Not available

21

Gravely 05946800

Bolt, Hex, .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06308400

Washer, Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 05967600

Bolt, Hex, 10 x 1.5 x 20

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 05943000

Bolt, Hex, 10 x 1.5 x 25

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 00955000

Plug, Euro Style, Optional Lights

$

$

Not available
