994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000101 - 000500) Kawasaki Engine And Related Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

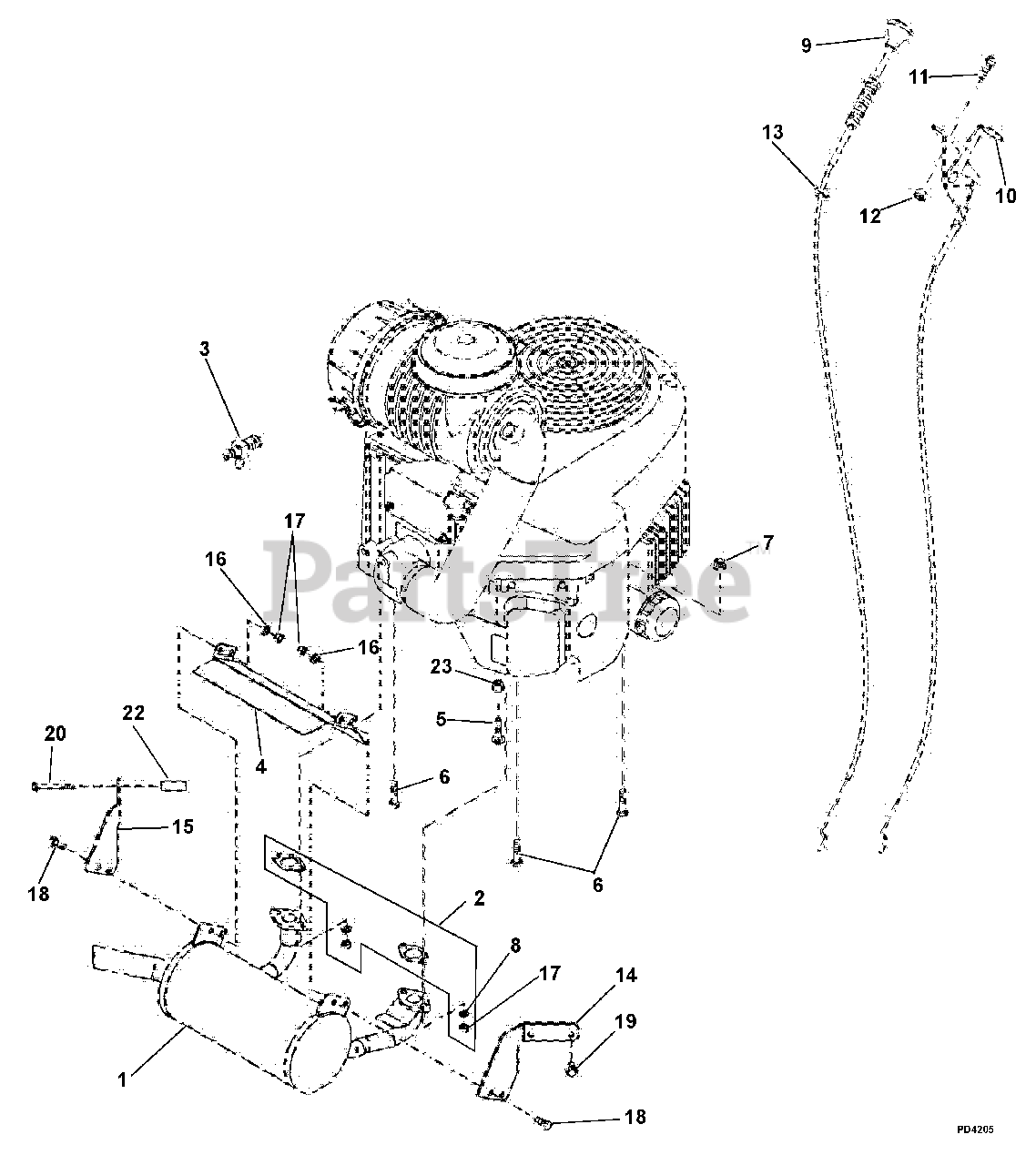

Kawasaki Engine And Related Components Parts Diagram

  • Title
1

Gravely 00882800

Muffler
(Superseded to TCA15321)

$347.99

$

Usually ships in 4-12 days

0

2

Gravely 00872600

Gasket Kit, (Includes Gaskets, items 8 and 17)
(Superseded to 00191601)

Note: (Includes Gaskets, items 8 and 17)

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 00883700

Oil Drain Fitting
(Superseded to TCA16240)

$

$

Not available

4

Gravely 00887100

Muffler Shield
(Superseded to TCU19288)

$10.99

$

In Stock, only 1 left!

0

5

Gravely 06200014

Carriage Bolt, Engine Mounting M8 x1

$

$

Not available

6

Gravely 05900116

Cap Screw, Engine Mounting M8 x 1.2

$

$

Not available

7

Gravely 06541700

Nut, Locking, Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

8

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 00876800

Cable, Choke
(Superseded to D18427)

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 00881800

Cable, Throttle
(Superseded to TCA15051)

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 06200013

Bolt, Hex, 8-32 x .5

$

$

Not available

12

Gravely 06531300

Nut, Locking, Nylon 8-32 With Insert

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00884100

Bracket, Muffler Support RH

$

$

Not available

15

Gravely 00884200

Bracket, Muffler Support LH

$

$

Not available

16

Gravely 06400327

Washer, Helical Spring

$

$

Not available

17

Gravely 06538600

Nut, Hex, M8-1.25

$

$

Not available

18

Gravely 05973300

Bolt, Hex, M8-1.250 x 20
(Superseded to 05901628)

$

$

Not available

19

Gravely 05956300

Bolt, Hex, M8 x 1.25 x 16

$

$

Not available

20

Gravely 06100008

Screw, Flanged Metric M6 x 60

$

$

Not available

21

Gravely 00872400

Shield, Heat
(Superseded to 00191365)

$

$

Not available

22

$3.49

$

In Stock, only 1 left!

0

23

Gravely 06542300

Bolt, Hex, M8 x 1.25 x 16
(Superseded to 06500725)

$3.49

$

Usually ships in 4-12 days

0
