994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Spindle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

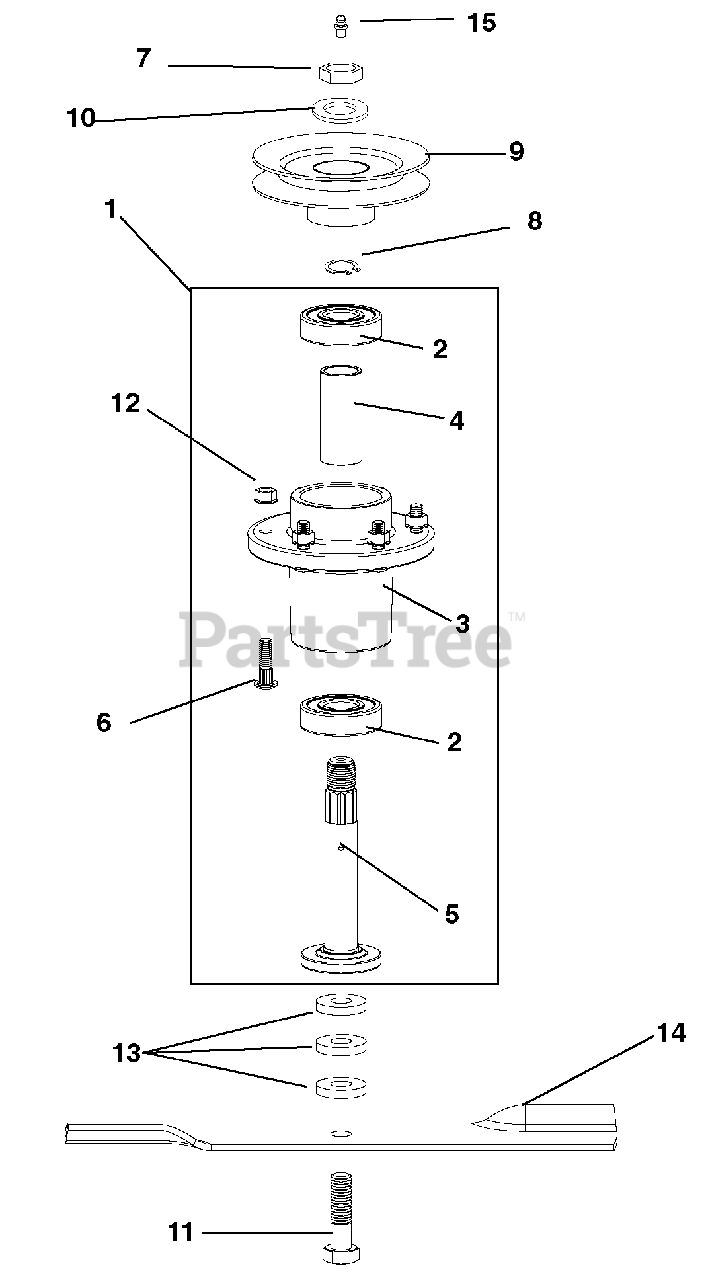

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200262

Spindle Assembly (Includes 2, 3, 4, 5, & 15)

Note: (Includes 2, 3, 4, 5, & 15)

$267.99

$

In Stock, only 2 left!

0

2

Gravely 00200046

Bearing, 6305LLC

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 00200042

Casting, Spindle W/STUDS

$87.99

$

Usually ships in 4-12 days

0

4

Gravely 00873000

Spacer, 1.250 x 1.000 x 2.780
(Superseded to 00200044)

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00872900

Shaft, Spindle .75-16
(Superseded to 00200261)

$93.99

$

Usually ships in 4-12 days

0

6

Gravely 05900105

Bolt, .38-16 x 1.25 Round Head Square Neck
(Superseded to 00200045)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 00964024

Nut, 3/4-16 Crown Lock
(Superseded to 06500031)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 00200263

Ring, Retainer

$6.99

$

Usually ships in 4-12 days

0

9

Gravely N/A

Pulley, Cutter Housing - Refer to Deck Assembly on page 24 or page 26

$

$

Currently unavailable

10

Gravely 03399703

Washer, .75 x 1.312 x .120
(Superseded to 06401037)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 00967348

Bolt, 5/8-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

12

Gravely 06529200

Nut, .38-16 Standard Hex Grade 5
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

13

Gravely 00875400

Washer, .630 x 1.50 x .250 Flat
(Superseded to D18055)

$6.99

$

In Stock, only 1 left!

0

14

Gravely 00878100

Blade, 16.500 x .80 Lift (48-Inch Decks)
(Superseded to GDU10230)

Note: (48-Inch Decks)

$28.99

$

In Stock, Qty 13

0

Gravely 00878200

Blade, 18.000 x .80 Lift (52-inch Decks)
(Superseded to GDU10231)

Note: (52-inch Decks)

$30.99

$

In Stock, Qty 20+

0

15

Gravely 07037900

Zerk, Grease S/O
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0
