994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Foot Plate Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

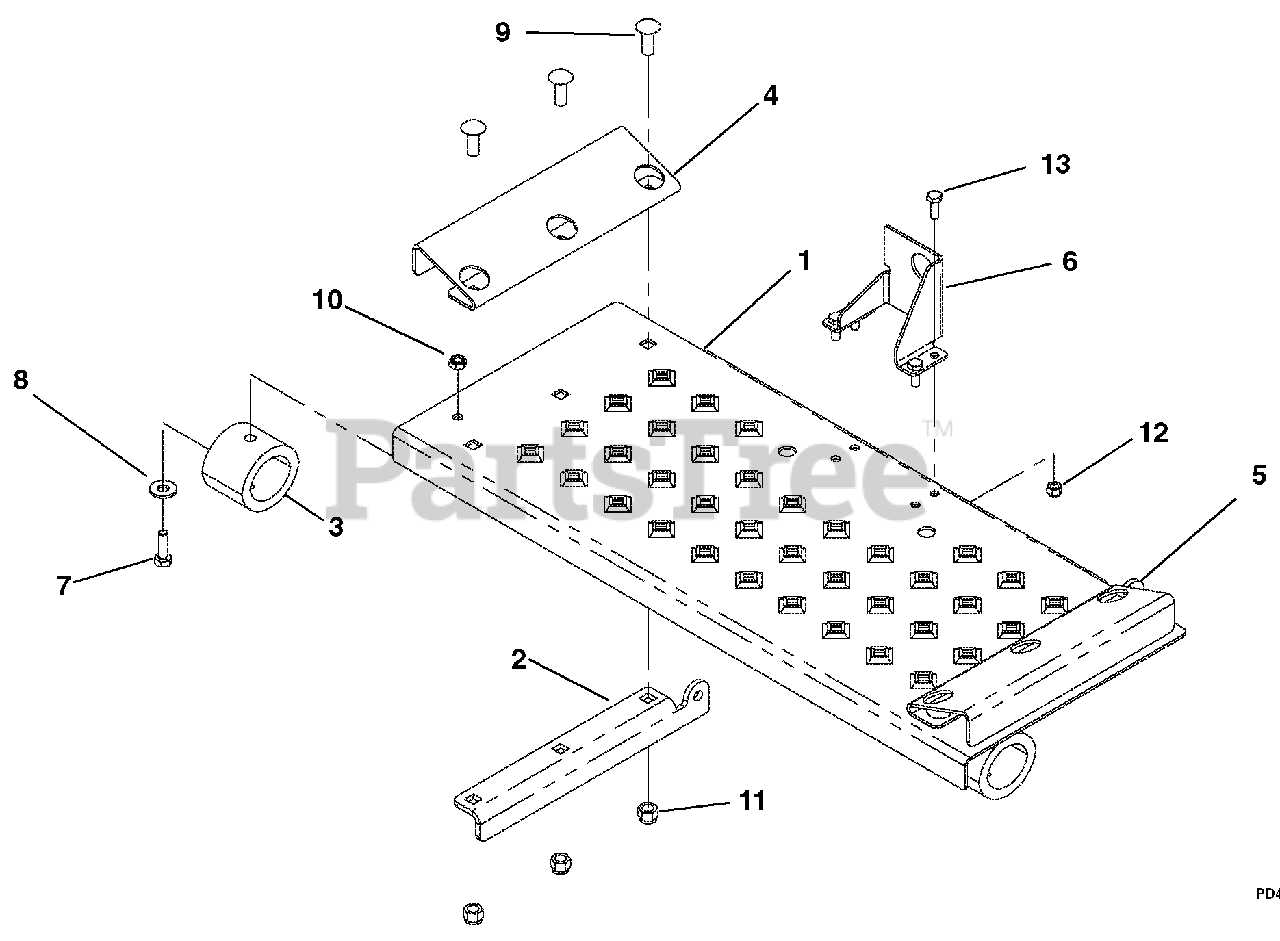

Foot Plate Parts Diagram

  • Title

1

Gravely 00897100

Plate, Platform
(Superseded to 00200618)

$

$

Not available

2

Gravely 00897200

Plate, Platform Tab RH
(Superseded to 00200619)

$

$

Not available

3

Gravely 00941800

Bumper, Miner GBR-6
(Superseded to 00200655)

$

$

Not available

4

Gravely 00938300

Wedge, Platform

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 00938400

Plate, Platform Tab LH
(Superseded to 00200693)

$

$

Not available

6

Gravely 00941300

Anchor, OPC

$

$

Not available

7

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06212000

Bolt, Round Head Square Neck .38 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06530200

Locknut, .312-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06535800

Locknut, .38-16 Nyloc
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 06531000

Locknut, .25-20 Nyloc
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 05946800

Bolt, .25-20 x .750 Hex 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0
