994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) 52" Deck Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

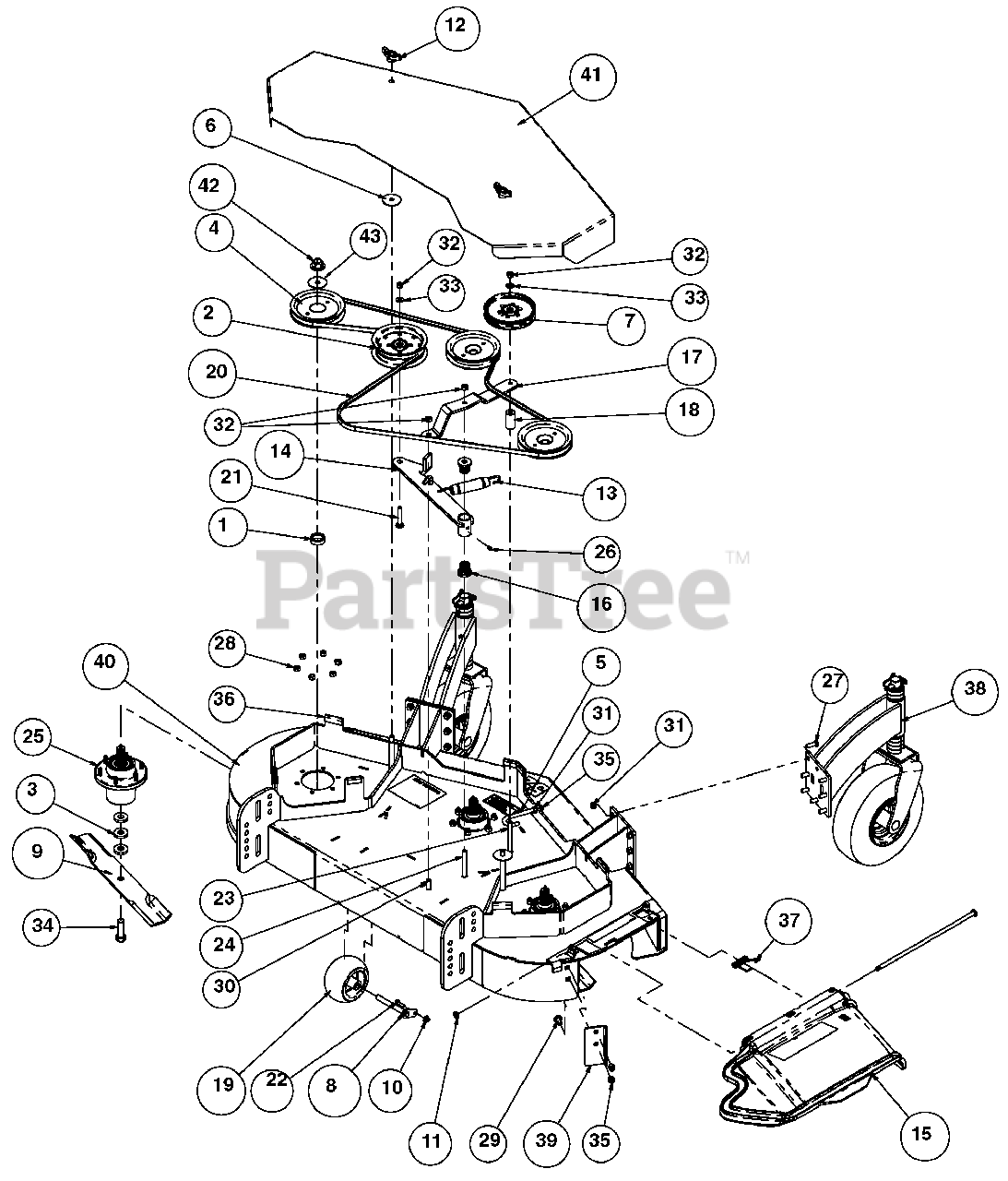

52" Deck Assembly Parts Diagram

  • Title
1

Gravely 00874200

Spacer, 1.500 x 1.000 x .510 Y
(Superseded to D13024)

$12.99

$

In Stock, only 2 left!

0

2

Gravely 07300107

Pulley, Flat 5.0 x .38 W/Bearing
(Superseded to D18032)

$79.99

$

In Stock, only 1 left!

0

3

Gravely 00875400

Washer, Blade
(Superseded to D18055)

$6.99

$

In Stock, only 1 left!

0

4

Gravely 03399702

Pulley, Spline Spindle LSE

$75.99

$

In Stock, only 1 left!

0

5

Gravely 00876900

J-Bolt, 3/8-16 x 4.00 Y
(Superseded to D23058)

$

$

Not available

6

Gravely 06400030

Washer, .402 x 2.00 x .055 Fend Y

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 07300112

Pulley, FLAT 5.00 x .375 W/Bearing
(Superseded to D28050)

$44.99

$

Usually ships in 4-12 days

0

8

Gravely 00878000

Pivot, Retainer Weld

$

$

Not available

9

Gravely 00878200

Blade, 18"
(Superseded to GDU10231)

$30.99

$

In Stock, Qty 20+

0

10

Gravely 06500035

Nut-1/4" Flange Prevailing Tor

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 06900107

Retainer

$

$

Not available

12

Gravely 00955100

Knob, Locking
(Superseded to M119352)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 08300040

Spring, Tension
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 07300117

Arm, Idler
(Superseded to TCA15346)

$142.99

$

In Stock, only 1 left!

0

15

Gravely 00873900

Chute Discharge Assist

$

$

Not available

16

Gravely TCU14540

Bearing, FLG M10 x M25 x M27 Fluted

$17.99

$

In Stock, only 2 left!

0

17

Gravely 00949900

Strap, Idler Pulley
(Superseded to TCU18344)

$39.99

$

Usually ships in 4-12 days

0

18

Gravely 00886100

Spacer
(Superseded to TCU18742)

$17.99

$

Usually ships in 4-12 days

0

19

Gravely 07100327

Wheel, Gage
(Superseded to TCU18744)

$14.99

$

In Stock, only 4 left!

0

20

Gravely 07200120

BELT, HB 109.3 EL AMD
(Superseded to TCU18848)

$108.99

$

In Stock, only 2 left!

0

21

Gravely 03H1658

Bolt, 3/8-16 x 2.25 CRG 5 Y
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

22

Gravely 03H1729

Bolt, 1/4-20 x 1.00 SQU SN Y
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 05900106

Bolt, 3/8 x 4 Short Neck Round Head

$

$

Not available

24

Gravely 05900108

Bolt, 3/8-16 x 3.50 CRG 5 Y

$

$

Not available

25

Gravely 00200260

Assembly, Spindle Housing
(Superseded to 00200262)

$262.99

$

In Stock, only 2 left!

0

26

Gravely 07037900

Fitting, 1/4-28 Straight Grease Zerk
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 05900120

Bolt, 3/8-16 x 1.00 Hex 5 Y
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06529200

Nut, 3/8-16 STD Hex GR5 Y
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

29

Gravely 06212000

Bolt, 3/8-16 x 1.00 CRG 5 SN Y
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06224100

Bolt, 3/8-16 x 1.25 CRG 5 Y
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 06534900

Locknut, 3/8-16 Whiz Y
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06543800

Locknut, 3/8-16 Crown Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06436200

Washer, .406 x .813 x x .065 Flat Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 00967348

Bolt, 5/8-11 x 2.00 Hex 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

35

Gravely 06535800

Locknut, 3/8-16 Nyloc Y
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

36

Gravely 00999538

Trim 1/4

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 03393800

Spring, Discharge Chute

$

$

Not available

38

Gravely N/A

Assembly, Wheel & Strut (see page 26 for parts)

Note: (see page 26 for parts)

$

$

Currently unavailable

39

Gravely 03754053

Plate, Extender 48" Hydro

$

$

Not available

40

Gravely 03761801

Weldment, 52 Gravely Deck w/Decals

$

$

Not available

41

Gravely 03761901

Weldment, 52 Gravely Deck Shield w/Decal

$

$

Not available

42

Gravely 00964024

Locknut, 3/4-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 03399703

Washer, .75 x 1.312 x .120
(Superseded to 06401037)

$

$

Not available
