994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Pump Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

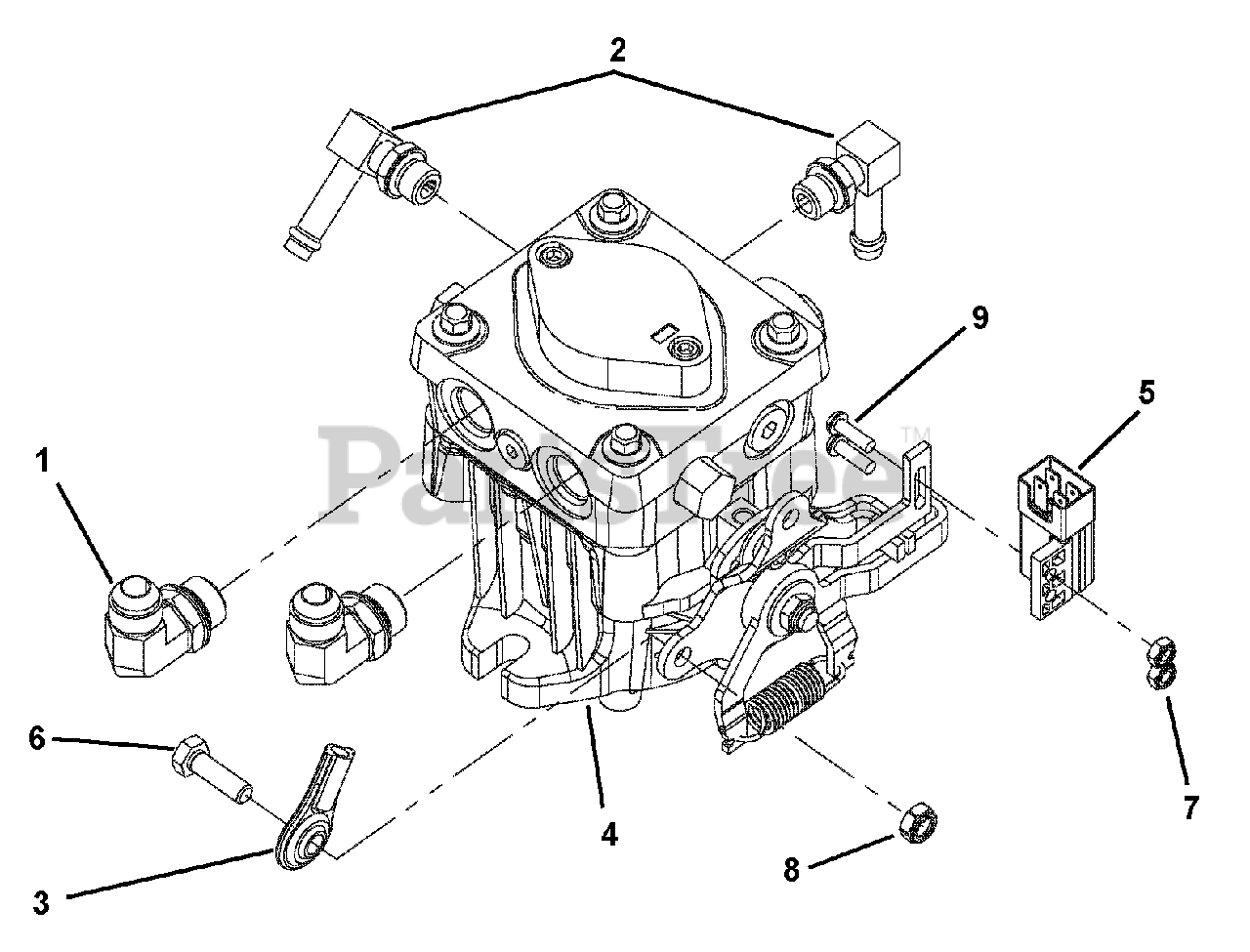

Pump Components Parts Diagram

  • Title

1

Gravely 00954100

Fitting, Includes O-Ring
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 07019700

Fitting -Adaptor .562-18 Steel Thread

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 08960700

Rod End, 5/16 RH -Female
(Superseded to 03787100)

$12.99

$

In Stock, only 2 left!

0

4

Gravely 00881400

Pump, Left Hand
(Superseded to TCA14965)

$841.99

$

Usually ships in 4-12 days

0

Gravely 00881500

Pump, Right Hand
(Superseded to TCA14966)

$841.99

$

Usually ships in 4-12 days

0

5

Gravely 00953100

Switch, Plunger Diametral Pitch -N.O. -N.C.
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

6

Gravely 05946900

Bolt, Hex .31 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06536000

Nut, Locking, Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06111100

Screw, Machine 10-24 x .62 P/HD

$0.99

$

In Stock, Qty 12

0
