994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Hydraulic Schematic Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

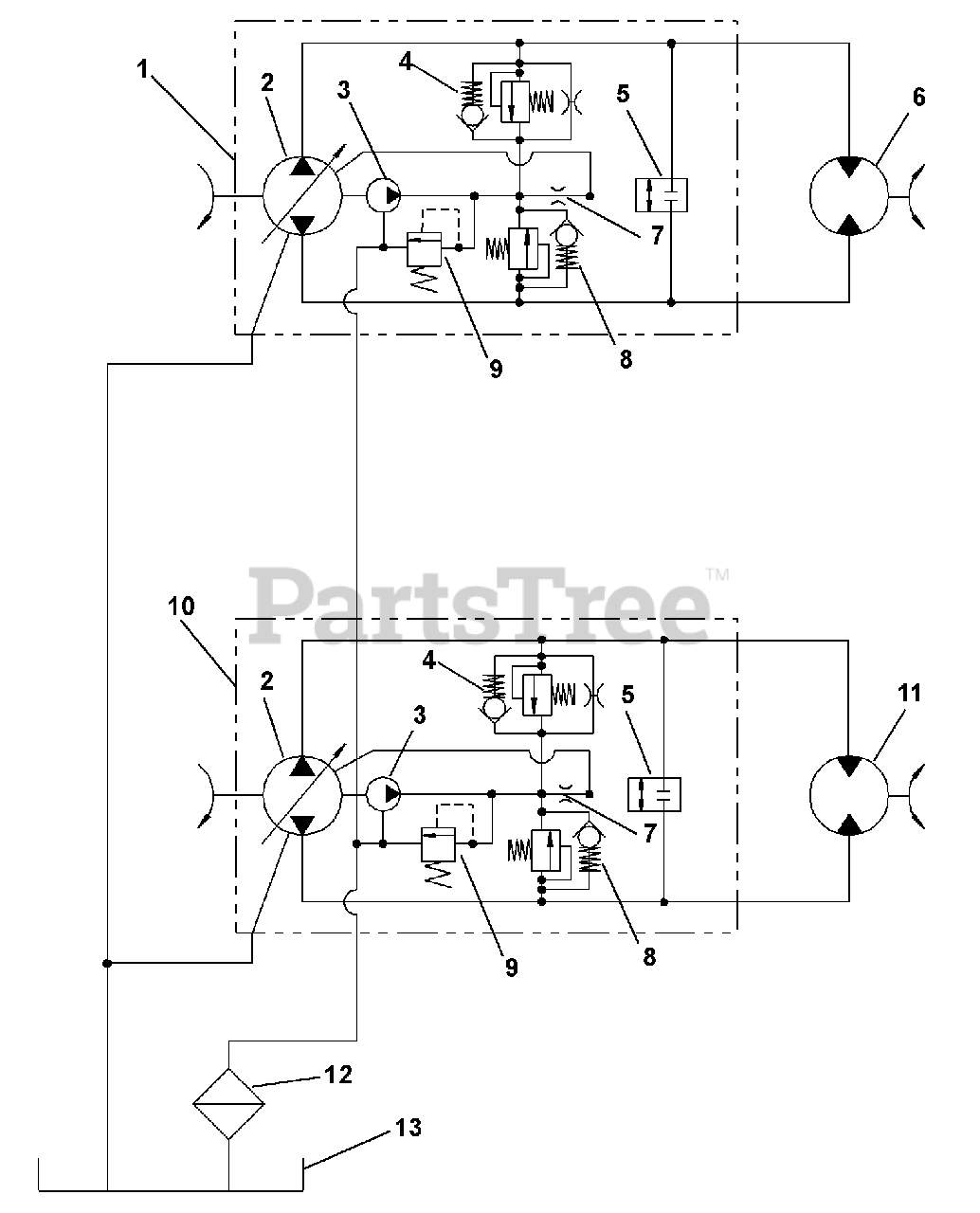

Hydraulic Schematic Parts Diagram

  • Title

1

Gravely N/A

Left Hydrostatic Pump Assembly

$

$

Currently unavailable

2

Gravely N/A

Pump Block

$

$

Currently unavailable

3

Gravely N/A

Charge Pump

$

$

Currently unavailable

4

Gravely N/A

System Change Check Shock Valve (Reverse)

Note: (Reverse)

$

$

Currently unavailable

5

Gravely N/A

Manual Bypass

$

$

Currently unavailable

6

Gravely N/A

Left Wheel Motor

$

$

Currently unavailable

7

Gravely N/A

Cooling Orifice

$

$

Currently unavailable

8

Gravely N/A

System Change Check Shock Valve (Forward)

Note: (Forward)

$

$

Currently unavailable

9

Gravely N/A

Charge Relief Valve

$

$

Currently unavailable

10

Gravely N/A

Right Hydrostatic Pump Assembly

$

$

Currently unavailable

11

Gravely N/A

Right Wheel Motor

$

$

Currently unavailable

12

Gravely N/A

Inlet Filter

$

$

Currently unavailable

13

Gravely N/A

Hydraulic Reservoir

$

$

Currently unavailable
