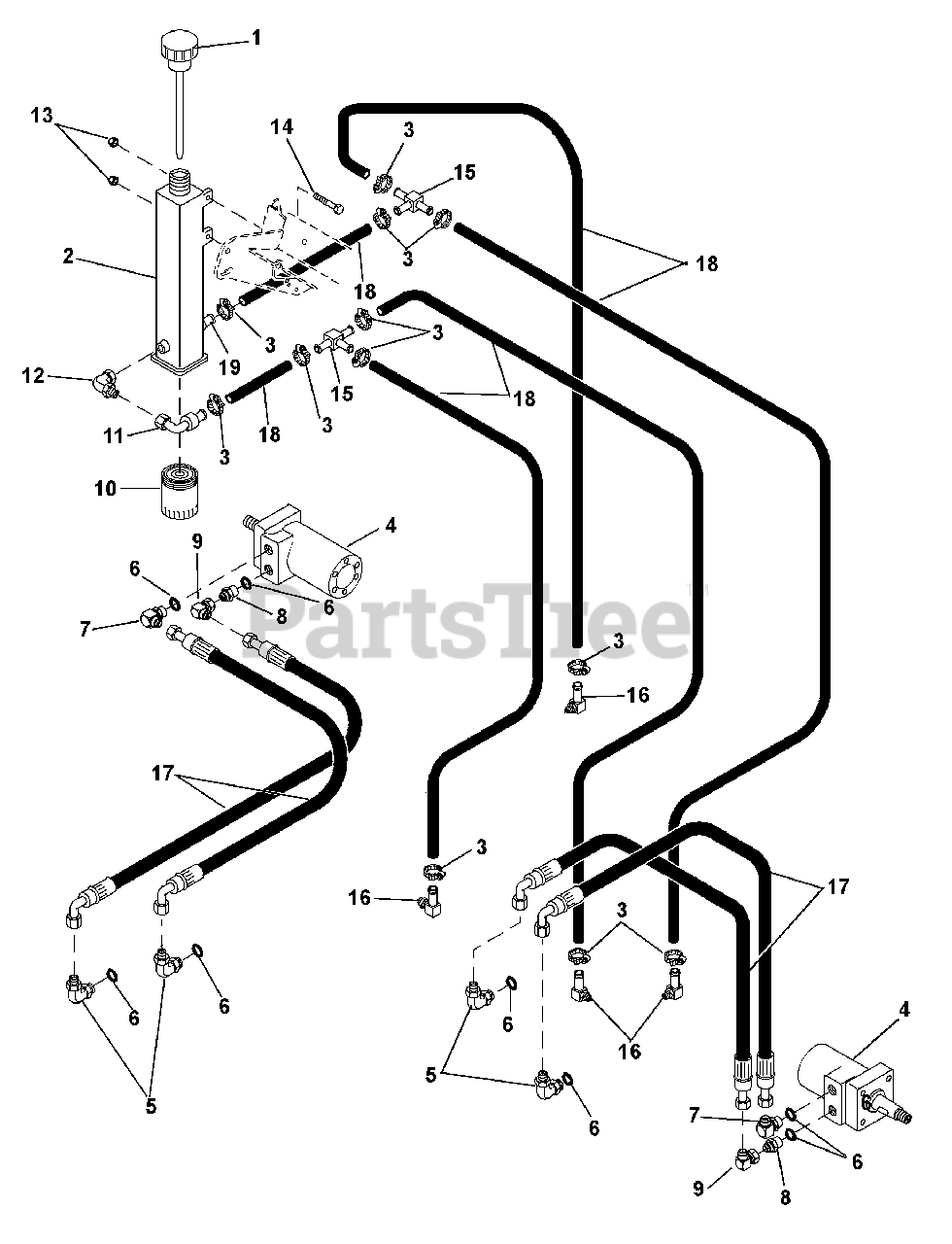

994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Hydraulic Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

Hydraulic Components Parts Diagram

  • Title

1

Gravely 00882500

Cap
(Superseded to TCA15122)

$27.99

$

In Stock, only 1 left!

0

2

Gravely 00883300

Hydraulic Reservoir, Includes Decal
(Superseded to TCA15373)

$

$

Not available

3

Gravely 00876600

Hose Clamp

$

$

Not available

4

Gravely 00882300

Wheel Motor

$

$

Not available

5

Gravely 00954100

Fitting, Includes O-Ring
(Superseded to D14196)

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 05600007

O-Ring, Included With Fitting

$

$

Not available

7

Gravely 07036500

Adapter, 8MJ-10MB90

$

$

Not available

8

Gravely 07025800

Adapter, Hydraulic 7/8 "0" to .3/4

$13.99

$

In Stock, only 2 left!

0

9

Gravely 00942900

Adapter, 3/4 FESW x 3/4 MJICX90
(Superseded to 00231046)

$

$

Not available

10

Gravely 00669300

Element, Oil Filter

$26.99

$

In Stock, only 4 left!

0

11

Gravely 00954500

Elbow Fitting

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 08800800

Adapter 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 05967600

Bolt, Hex M10 x 1.5 x 20 Grade 5

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 00879200

Tee Fitting
(Superseded to M86863)

$

$

Not available

16

Gravely 07019700

Fitting, Adapter .562-18 Steel Thread

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 00876700

Hose, High Pressure
(Superseded to D18394)

$92.99

$

Usually ships in 4-12 days

0

18

Gravely 00887400

Hose, Return, 25 Ft Black - Cut to Length
(Superseded to TY22552)

$

$

Not available

19

Gravely 00954400

Adapter, Straight Fitting

$5.99

$

Usually ships in 4-12 days

0

N/A

Gravely 00879100

Tie Straps

$

$

Not available
