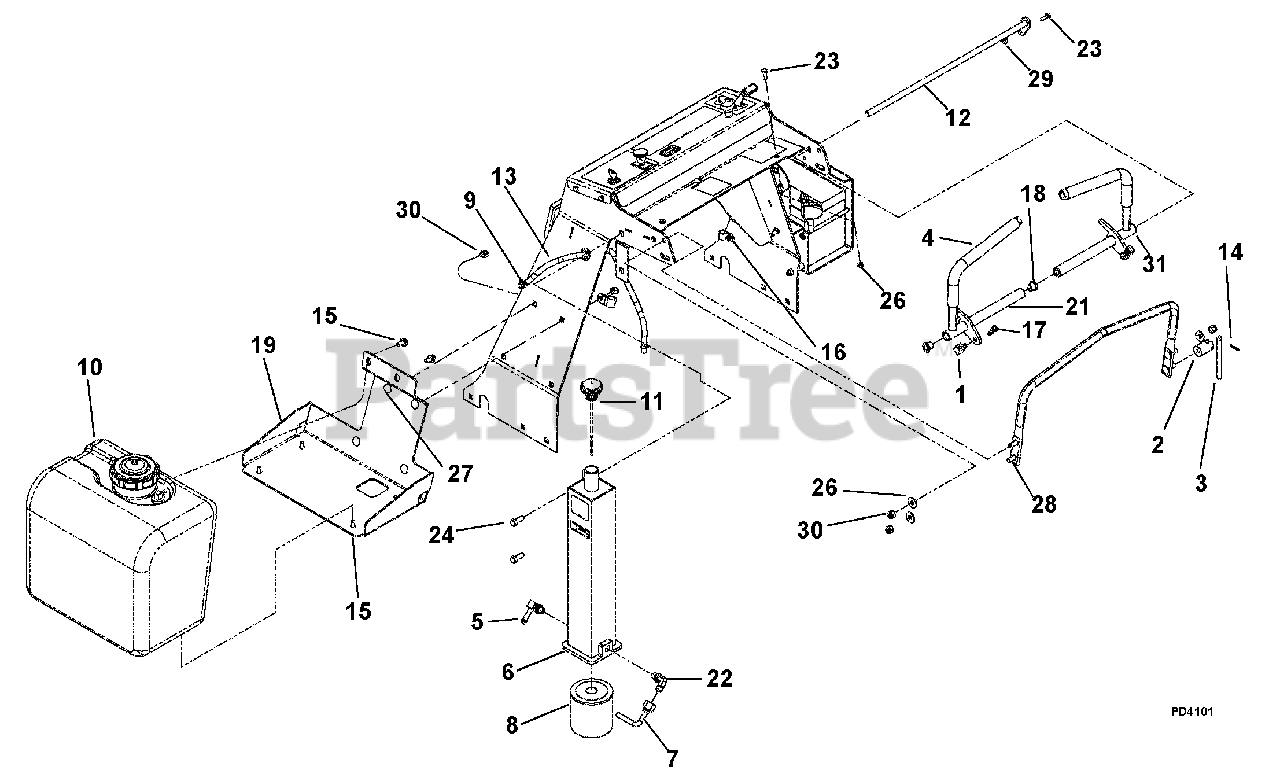

994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely 00874300

Swivel
(Superseded to D13028)

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 00874500

Base, Speed Control Lock

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 00874600

Handle

$

$

Not available

4

Gravely 00943900

Grip, Control
(Superseded to D18093)

$7.99

$

In Stock, only 1 left!

0

5

Gravely 07019700

Fitting, Adapter .562-18 Steel Thread

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 00883300

Hydraulic Reservoir, Inc. Decal
(Superseded to TCA15373)

$

$

Not available

7

Gravely 00954500

Elbow Fitting

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 00669300

Element, Oil Filter

$26.99

$

In Stock, only 4 left!

0

9

Gravely 06900108

Clamp
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00881600

Fuel Tank
(Superseded to 00200151)

$

$

Not available

11

Gravely 00882500

Cap
(Superseded to TCA15122)

$

$

Not available

12

Gravely 00882700

Shaft, Pivot

$

$

Not available

13

Gravely 00950900

Hose, 1/4" ID Low Perm Fuel 50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05800005

Pin, Spring 5/32 x 1

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05956300

Bolt, Hex M8 x 1.25 x 16

$

$

Not available

16

Gravely 00888500

P-Clip, .500 Insulated
(Superseded to 06900512)

$

$

Not available

17

Gravely 06703600

Pin, Hair Int .091 x 1.65
(Superseded to 00121080)

$2.99

$

In Stock, Qty 9

0

18

Gravely 05400017

Bearing, FLG .500 x .620 x .500 Bronze
(Superseded to 00200116)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 00896300

Bracket, Fuel Tank Mounting
(Superseded to 00200603)

$

$

Not available

20

Gravely 00899600

Handle, Support
(Superseded to 00200654)

$

$

Not available

21

Gravely 00941100

Weldment, RH Control Lever

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 08800800

Adapter, 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06533200

Nut, Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

26

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06212000

Bolt, Roundhead Square Short Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06223600

Bolt, Roundhead Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

29

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

30

Gravely 06535800

Nut, Locking, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

31

Gravely 00941200

Weldment, LH Control Lever

$

$

Not available
