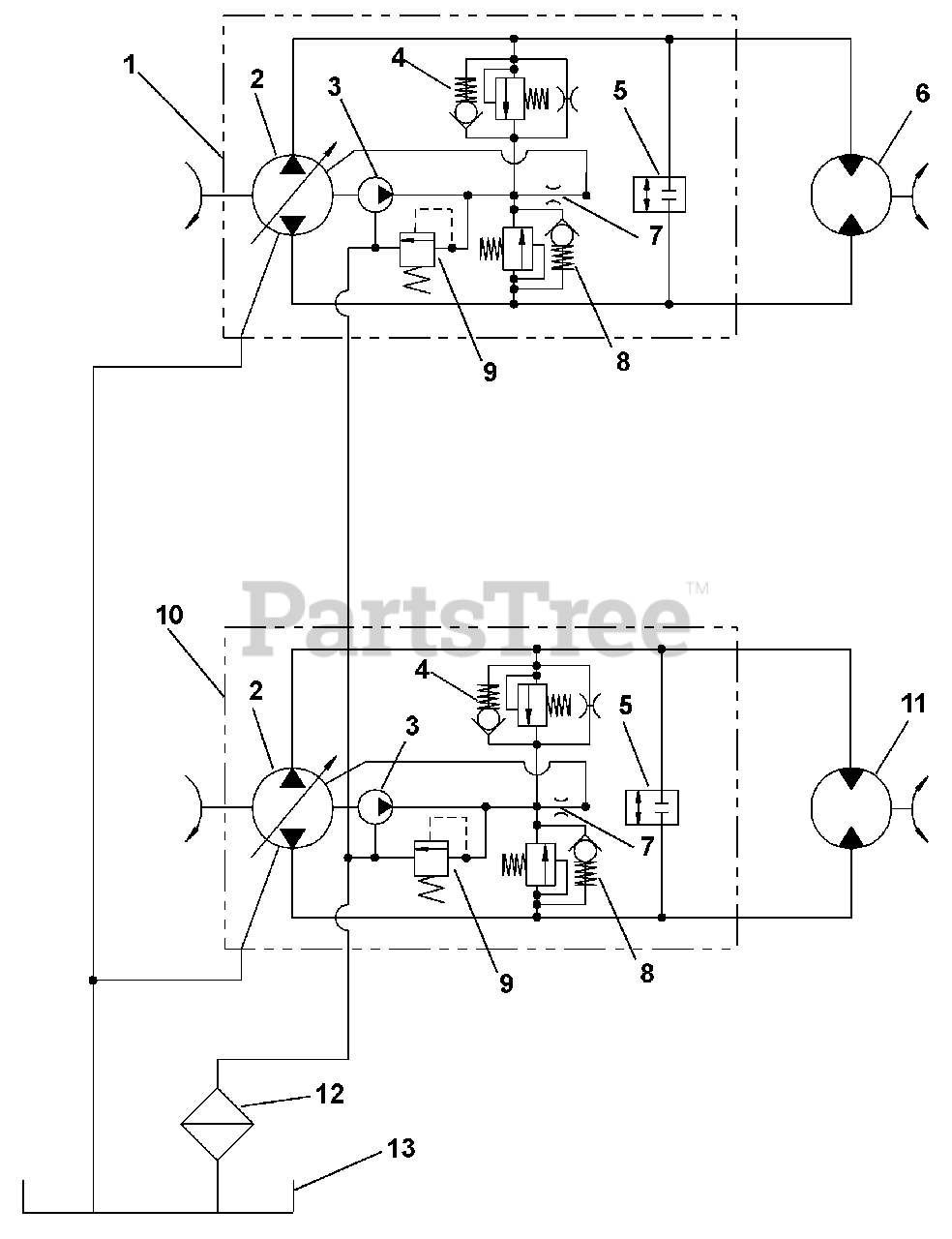

994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Hydraulic Schematic Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

Hydraulic Schematic Parts Diagram

  • Title

1

Left Hydrostatic Pump Assembly

Left Hydrostatic Pump Assembly

$

$

Not available

2

Pump Block

Pump Block

$

$

Not available

3

Charge Pump

Charge Pump

$

$

Not available

4

System Change Check Shock Valve (Reverse)

System Change Check Shock Valve (Reverse)

Note: (Reverse)

$

$

Not available

5

Manual Bypass

Manual Bypass

$

$

Not available

6

Left Wheel Motor

Left Wheel Motor

$

$

Not available

7

Cooling Orifice

Cooling Orifice

$

$

Not available

8

System Change Check Shock Valve (Forward)

System Change Check Shock Valve (Forward)

Note: (Forward)

$

$

Not available

9

Charge Relief Valve

Charge Relief Valve

$

$

Not available

10

Right Hydrostatic Pump Assembly

Right Hydrostatic Pump Assembly

$

$

Not available

11

Right Wheel Motor

Right Wheel Motor

$

$

Not available

12

Inlet Filter

Inlet Filter

$

$

Not available

13

Hydraulic Reservoir

Hydraulic Reservoir

$

$

Not available
