994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Mower Deck Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

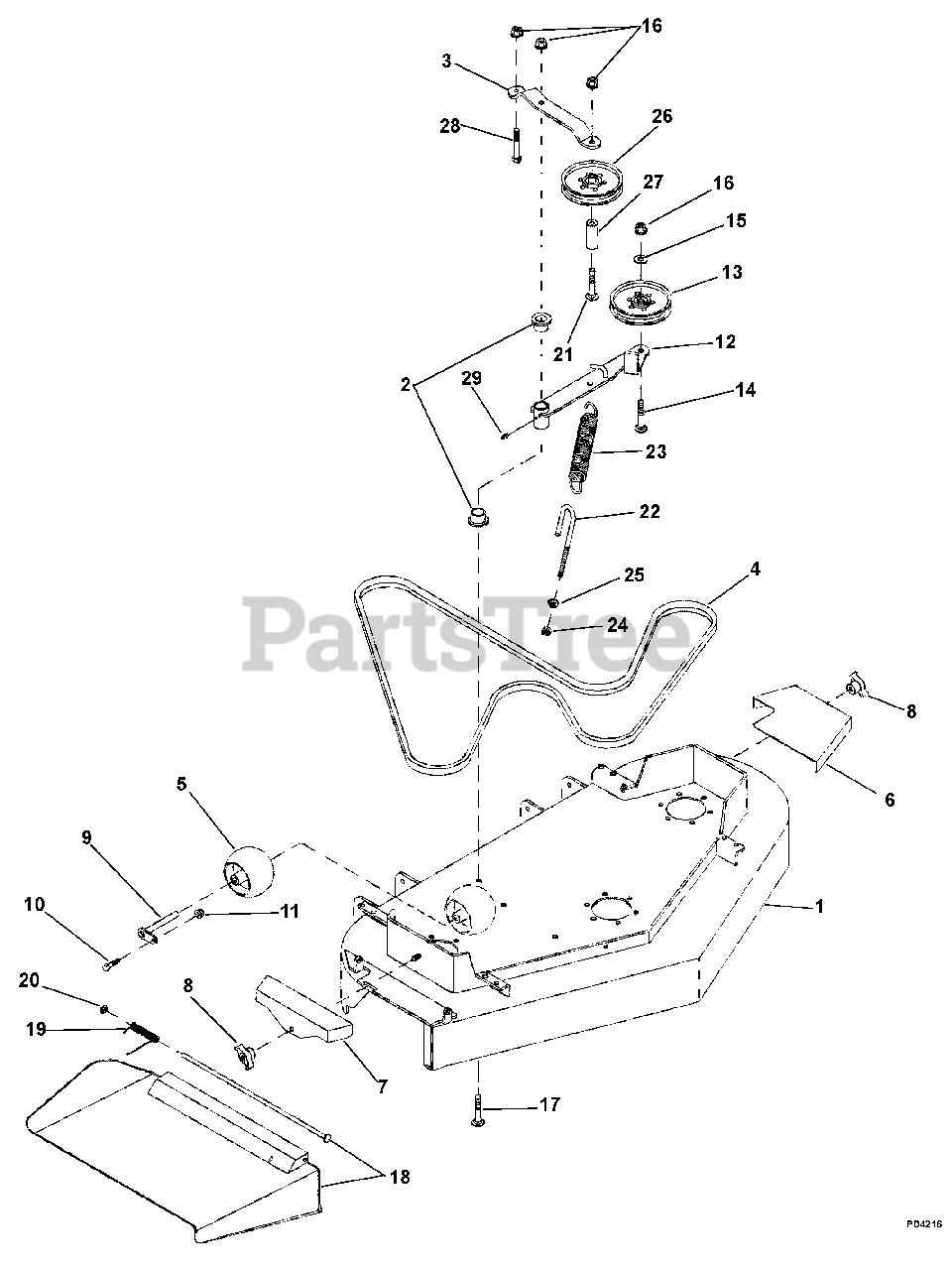

Mower Deck Parts Diagram

  • Title

1

Gravely 00883400

Mower Deck (994100)
(Superseded to 00200220)

Note: (994100)

$

$

Not available

Gravely 00883500

Mower Deck (994103)
(Superseded to 00894300)

Note: (994103)

$

$

Not available

2

Gravely 05500128

Bushing
(Superseded to TCU14540)

$17.99

$

In Stock, only 2 left!

0

3

Gravely 00949900

Strap, Idler Pulley
(Superseded to TCU18344)

$39.99

$

Usually ships in 4-12 days

0

4

Gravely 07200119

Belt, Engine-to-Blades (994100)
(Superseded to TCU18847)

Note: (994100)

$113.99

$

Usually ships in 4-12 days

0

Gravely 07200120

Belt, Engine-to-Blades (994103)
(Superseded to TCU18848)

Note: (994103)

$108.99

$

In Stock, only 2 left!

0

5

Gravely 07100327

Wheel, Gage
(Superseded to TCU18744)

$14.99

$

In Stock, only 4 left!

0

6

Gravely 00950100

Belt Cover, LH
(Superseded to 00200203)

$

$

Not available

7

Gravely 00885700

Belt Cover, RH (994100)
(Superseded to 00200202)

Note: (994100)

$

$

Not available

Gravely 00950100

Belt Cover, RH (994103)
(Superseded to 00200203)

Note: (994103)

$

$

Not available

8

Gravely 00955100

Knob, 3/8-16 Insert
(Superseded to M119352)

$3.99

$

In Stock, only 4 left!

0

9

Gravely 00878000

Pivot, Anti-Scalp Roller

$

$

Not available

10

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06500035

Nut, 1/4" Flange Prevailing Torque

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 07300117

Arm, Idler Engine-to-Blade
(Superseded to TCA15346)

$142.99

$

In Stock, only 1 left!

0

13

Gravely 07300107

Pulley, Flat Tension Idler
(Superseded to D18032)

$79.99

$

In Stock, only 1 left!

0

14

Gravely 06213400

Bolt, Round Head Square Neck .38-16 x 2.25
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06436200

Washer, Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06529600

Nut, Locking, Center, .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05900108

Bolt, 3/8-16 x 4.00

$

$

Not available

18

Gravely 00873900

Discharge Chute (994100)

Note: (994100)

$

$

Not available

Gravely 00874000

Discharge Chute (994103)
(Superseded to TCA16387)

Note: (994103)

$35.99

$

In Stock, only 2 left!

0

19

Gravely 08300039

Spring, Torsional Discharge
(Superseded to M132768)

$9.49

$

In Stock, only 1 left!

0

20

Gravely 06900107

Clip, Retainer

$

$

Not available

21

Gravely 05900106

Bolt, 3/8-16 x 3-3/4

$

$

Not available

22

Gravely 00876900

J-Hook
(Superseded to D23058)

$

$

Not available

23

Gravely 08300040

Spring, Deck Belt Tension
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 06535800

Nut, Lock, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07300112

Pulley, Flat Blade-to-Blade
(Superseded to D28050)

$44.99

$

Usually ships in 4-12 days

0

27

Gravely 00886100

Spacer, Blade-to-Blade Pulley
(Superseded to TCU18742)

$17.99

$

Usually ships in 4-12 days

0

28

Gravely 06224100

Bolt, Round Head Square Neck .38-15 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 00954800

Fitting, Lubrication

$

$

Not available
