994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Fuel Tank And Lines Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

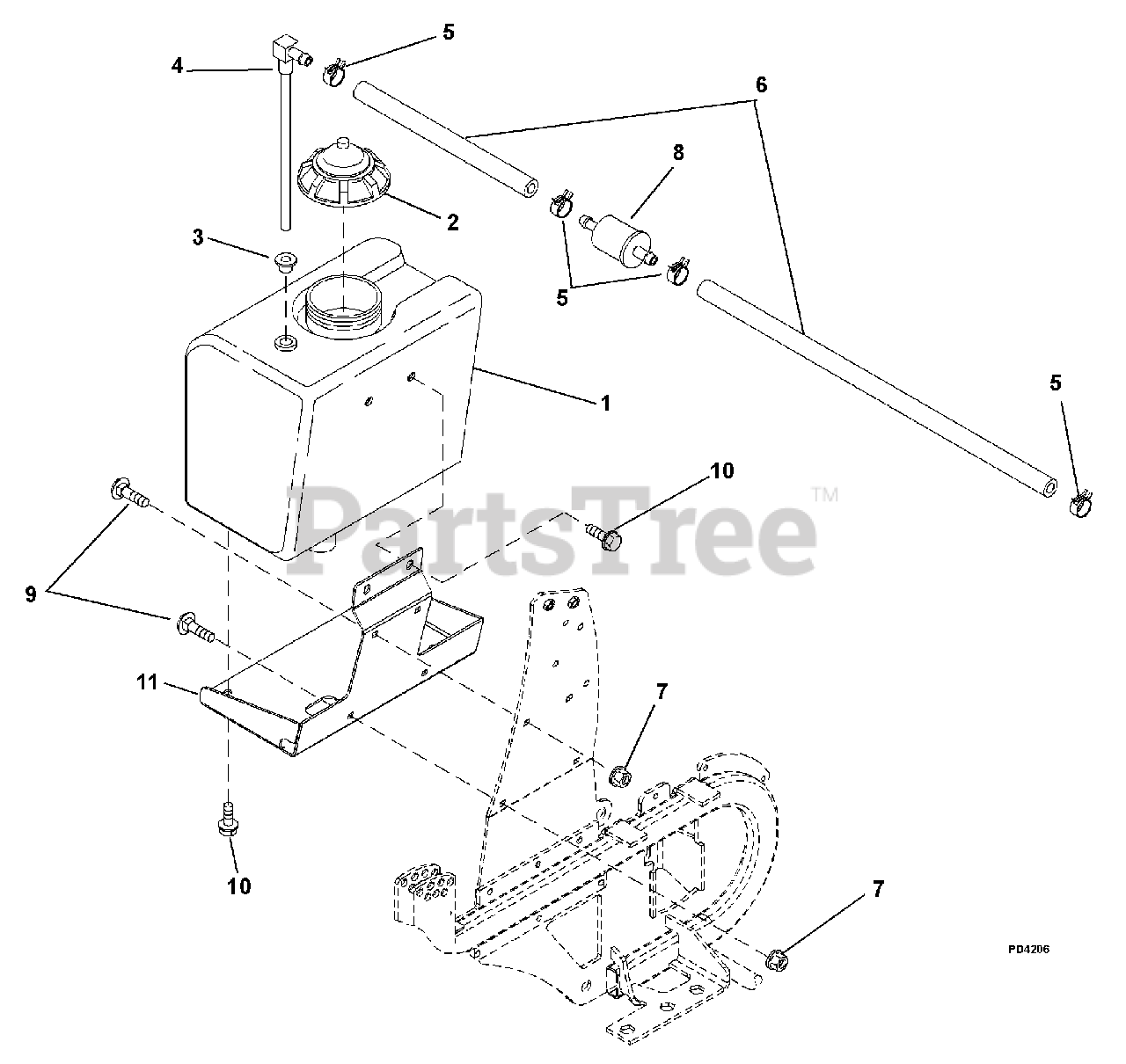

Fuel Tank And Lines Parts Diagram

  • Title
1

Gravely 00881600

Fuel Tank
(Superseded to 00200151)

$

$

Not available

2

Gravely 00875900

Cap, Fuel
(Superseded to 00181251)

$23.99

$

In Stock, only 1 left!

0

3

Gravely 00955600

Grommet
(Superseded to 00387300)

$9.49

$

In Stock, Qty 20+

0

4

Gravely 00881700

Fuel Pickup
(Superseded to TCA15048)

$

$

Not available

5

Gravely 06900108

Clamp
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00947700

Hose, 10 FT Service #

$

$

Not available

7

Gravely 06542400

Nut, Lock, Nylon M10-1.5

$

$

Not available

8

Gravely 00873700

Filter
(Superseded to 21573800)

$

$

Not available

9

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

10

Gravely 05956300

Bolt, Hex, M8 x 1.25 x 16

$

$

Not available

11

Gravely 00896300

Bracket, Fuel Tank Mounting
(Superseded to 00200603)

$

$

Not available
