994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Battery, Electrical Harness And Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

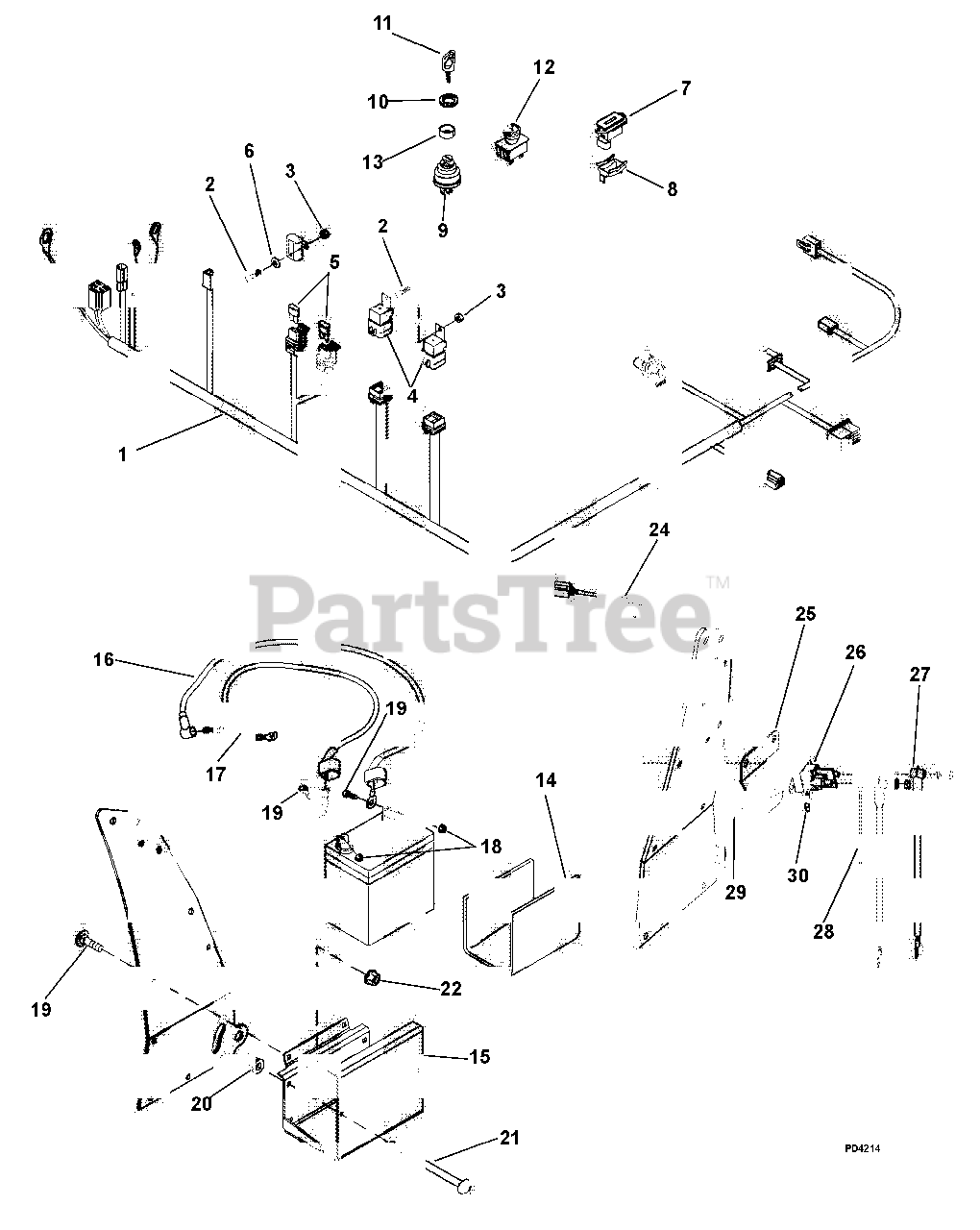

Battery, Electrical Harness And Components Parts Diagram

  • Title

1

Gravely 00882000

Wiring Harness, Main
(Superseded to 00200204)

$254.99

$

Usually ships in 4-12 days

0

2

Gravely 05975800

Bolt, Hex M5-.8 x 16

$

$

Not available

3

Gravely 06522100

Nut, Hex M5 x .8

$

$

Not available

4

Gravely 00953800

Relay, Sealed With Bracket
(Superseded to AM123716)

$35.99

$

Usually ships in 4-12 days

0

5

Gravely 00955500

Fuse, 20 Amp

$

$

Not available

6

Gravely 06442700

Washer, Flat Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 00954000

Meter, Hour - LCD
(Superseded to AM129887)

$

$

Not available

8

Gravely 00883900

Clip

$

$

Not available

9

Gravely 00882200

Key Switch
(Superseded to TCA15075)

$37.99

$

Usually ships in 4-12 days

0

10

Gravely 06500036

Nut, Knurled
(Superseded to M110159)

$

$

Not available

11

Gravely 06600006

Ignition Key
(Superseded to TCU17401)

$

$

Not available

12

Gravely 00873800

Switch, PTO
(Superseded to AM118802)

$26.99

$

Usually ships in 4-12 days

0

13

Gravely 00879000

Spacer

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 00877200

Isolator Pad, Battery
(Superseded to D28159)

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 00885900

Battery Box
(Superseded to 00200221)

$

$

Not available

16

Gravely 00876100

Cable, Positive

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 00876200

Cable, Negative
(Superseded to D18319)

$39.99

$

Usually ships in 4-12 days

0

18

Gravely 06541700

Nut, Lock, Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06226000

Bolt, Round Head Square Neck M8-1.25 x 20

$

$

Not available

20

Gravely 06545400

Nut .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05900107

Cap Screw 5/16" x 6"
(Superseded to 06200128)

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 06541700

Nut, Lock, Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

23

Gravely N/A

Battery

$

$

Currently unavailable

24

Gravely 00873300

Adapter Assembly, Kawasaki
(Superseded to 00200074)

$35.99

$

Usually ships in 4-12 days

0

25

Gravely 00873200

Solenoid Mounting Plate
(Superseded to 00200069)

$

$

Not available

26

Gravely 03551000

Solenoid

$34.99

$

In Stock, Qty 14

0

27

Gravely 00872300

Starter Cable
(Superseded to 00180842)

$15.99

$

In Stock, only 1 left!

0

28

Gravely 00954300

Fusible Link, 20 Amp
(Superseded to 00200924)

$15.99

$

Usually ships in 4-12 days

0

29

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06530100

Nut, Locking, Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

Gravely 00879100

Tie Straps

$

$

Not available
