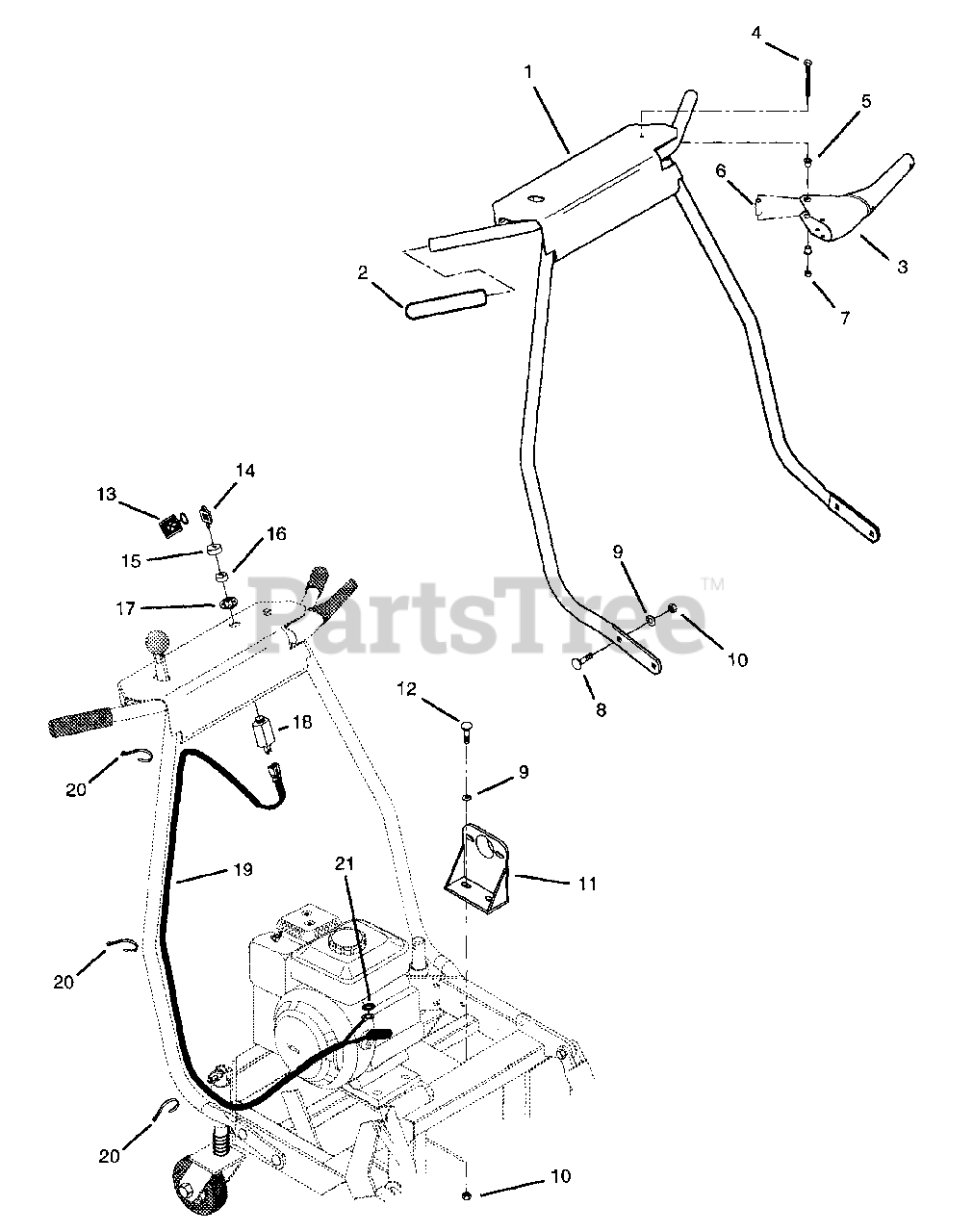

994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) HANDLEBAR, KEY SWITCH, PUMP MOUNT Parts Diagram

Pro-Aire Vacuum, Honda

HANDLEBAR, KEY SWITCH, PUMP MOUNT Parts Diagram

  • Title

1

Gravely 09400500

Handlebar Weldment

$

$

Not available

2

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 09400700

Clutch Lever-Coated

$

$

Not available

4

Gravely 05917000

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05517500

Bushing-Flange .320 x .620 x .312

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 05518100

Bushing-Sleeve .377 x .503 x .88

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 06531400

Nut-Lock Unitorque .31

$

$

Not available

8

Gravely 06213200

Bolt-Round Head Square Neck .375 x 2.50G5
(Superseded to 06200234)

$3.99

$

In Stock, Qty 17

0

9

Gravely 06302100

Washer-Lock .375 x .094 Medium Plated
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06501800

Nut-Hex .375-16 Zinc Grade 2
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 09401600

Pump Mount Weldment

$

$

Not available

12

Gravely 06208100

Bolt-Round Head Square Neck .38-16 x 1.25
(Superseded to 06224100)

$2.49

$

In Stock, only 4 left!

0

13

Gravely 03490000

Key Chain

$

$

Not available

14

Gravely 03489900

Ignition Switch Key
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 07517700

Cap-Ignition Switch

$3.99

$

In Stock, Qty 9

0

16

Gravely 06517300

Nut-Panel .625-32 Greco

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 06301900

Washer-Lock Internal .625 x .045 Plated
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 02456500

Key Switch Assembly
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

19

Gravely 09406100

Wire Harness

$

$

Not available

20

Gravely 07519900

Tie Wrap-Black

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 06302400

Washer-Lock External 12 x .025 Plated

$

$

Not available
