993521 (Pro-Chip 1286) - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Fuel System Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

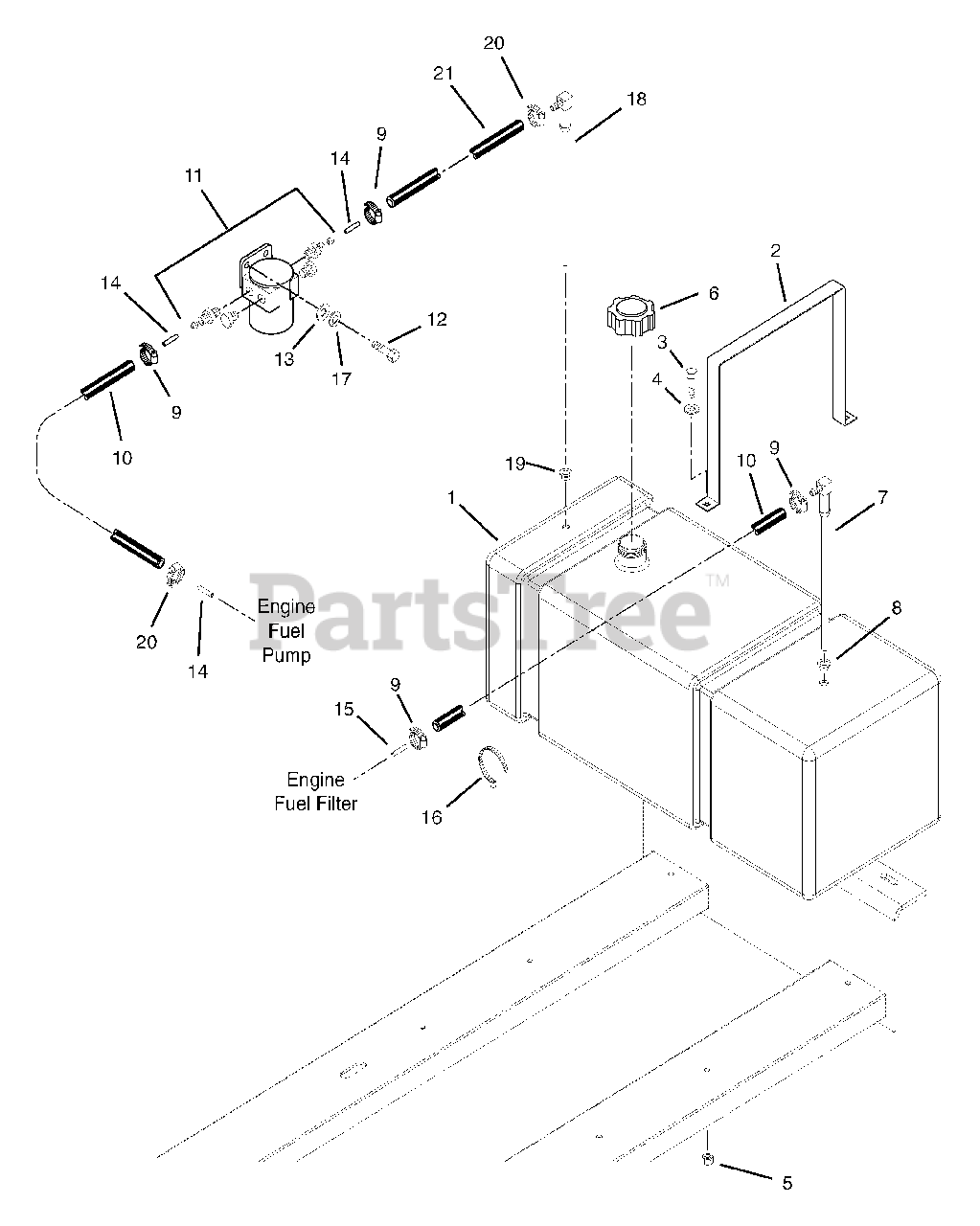

Fuel System Parts Diagram

  • Title

1

Gravely 09319300

Fuel Tank

Note: (Options 1-3 & 10-12)

$

$

Not available

1

Gravely 09351900

Fuel Tank

Note: (Option 13)

$

$

Not available

2

Gravely 09321800

Fuel Tank Strap

$

$

Not available

3

Gravely 05958500

Bolt-Hex .375-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07533400

Cap, Fuel Tank

$22.99

$

In Stock, only 1 left!

0

7

Gravely 047614

Fitting, Tank
(Superseded to 08983100)

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

Note: (Options 1-3 & 10-12)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

Note: (Option 13)

$6.99

$

Usually ships in 4-12 days

0

10

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

Note: (Options 1-3 & 10-12)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

Note: (Option 13)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09326900

Fuel-Pre Filter-Perkins

Note: (Options 1-3 & 10-12)

$

$

Not available

12

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

Note: (Options 1-3 & 10-12)

$2.49

$

In Stock, Qty 11

0

13

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

Note: (Options 1-3 & 10-12)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 00928600

Tubing 5/16" OD x .028 Wall

Note: (Options 1-3 & 10-12)

$

$

Not available

15

Gravely 00928500

Tubing 1/4" OD x .028 Wall

Note: (Options 1-3 & 10-12)

$

$

Not available

16

Gravely 07517300

Cable Tie

$

$

Not available

17

Gravely 06308600

Washer-Lock .31 x .078
(Superseded to 06300119)

Note: (Options 1-3 & 10-12)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 047614

Fitting, Tank
(Superseded to 08983100)

Note: (Options 1-3 & 10-12)

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 07053800

Fitting, Tank

Note: (Option 13)

$

$

Not available

19

Gravely 050246

Bushing, Fuel Line Fitting
(Superseded to 07511400)

Note: (Options 1-3 & 10-12)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 07531000

Bushing, Fuel Line Fitting

Note: (Option 13)

$

$

Not available

20

Gravely 032045

Clamp-Hose
(Superseded to 06924300)

Note: (Options 1-3 & 10-12)

$6.99

$

Usually ships in 4-12 days

0

20

Gravely 06922100

Clamp-Hose Worm .44/.78 x .53

Note: (Option 13)

$4.99

$

Usually ships in 4-12 days

0

21

21134

Gas Line-Bulk 1/4" I.D.

Note: (Options 1-3 & 10-12)

$

$

Not available

21

Gravely 00933700

Hose-Fuel Line 3/8 in I.D.

Note: (Option 13)

$

$

Not available
