993519 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Flywheel And Housing Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

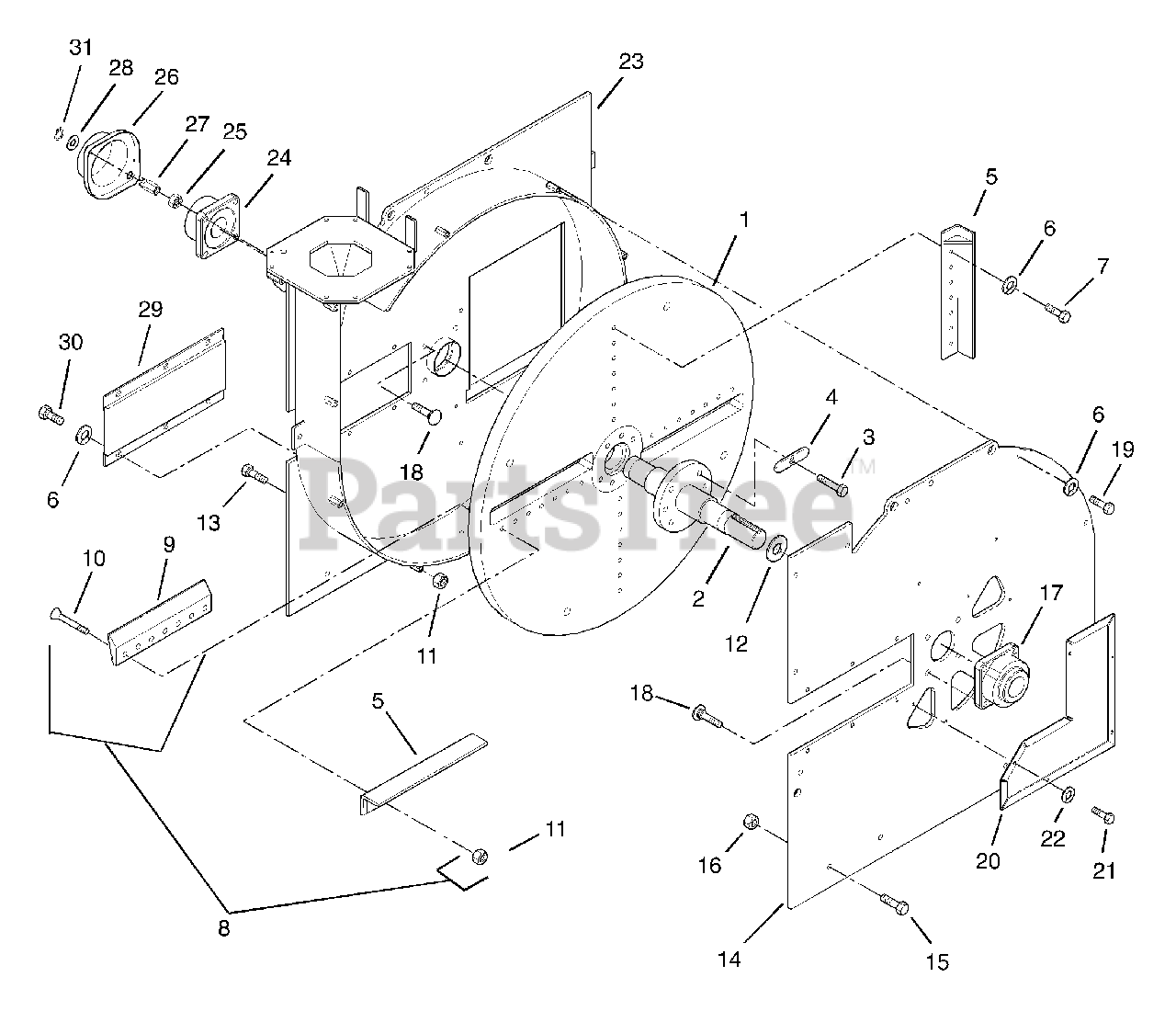

Flywheel And Housing Parts Diagram

  • Title
1

Gravely 09311800

Flywheel

$

$

Not available

2

Gravely 09312400

Flywheel Shaft Weldment

$

$

Not available

3

Gravely 05930700

Bolt-Hex .62-11 x 2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

4

Gravely 04125200

Lock Tab

$

$

Not available

5

Gravely 09321000

Impeller Weldment

$

$

Not available

6

Gravely 06307300

Washer-Lock .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

7

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 59304700

Chipper Knife Set 495

Note: (Contains Items 9-11)

$

$

Not available

9

Cutter Knife

Cutter Knife

$

$

Not available

10

Gravely 05929700

Screw-Socket Head .50-13 x 3.5 Grade 8

$

$

Not available

11

Gravely 06528200

Nut-Locking .50-13

$3.99

$

In Stock, only 3 left!

0

12

Gravely 09303100

Arbor Shim

$

$

Not available

13

Gravely 05930600

Bolt-Hex .50-13 x 1.25

$

$

Not available

14

Gravely 09314600

Housing (Front)

Note: (Front)

$

$

Not available

15

Gravely 05959600

Bolt-Hex .75-10 x 1.50 Grade 5

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 06535400

Nut-Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 05418400

Bearing-Flange 2.00

$

$

Not available

18

Gravely 04129900

Rib Neck Bolt

$

$

Not available

19

Gravely 05946000

Bolt-Hex .50-13 x 1.75 Grade 8

$

$

Not available

20

Gravely 09315700

Screen Frame Weldment

$

$

Not available

21

Gravely 05947000

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06308600

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 09335700

Housing (Rear)

Note: (Rear)

$

$

Not available

24

Gravely 05418300

Bearing-Flange 2.00 Inside Diameter-Non-Expandable

$

$

Not available

25

Gravely 06519200

Nut-Locking Flex

$

$

Not available

26

Gravely 09309200

Bearing Cover

$

$

Not available

27

$

$

Not available

28

Gravely 06441400

Washer-Flat-Steel .754 X 1.125 X .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 09315100

Access Cover Weldment

$

$

Not available

30

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

31

Gravely 05701200

Ring-Retaining-External .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0
