993519 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Battery Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

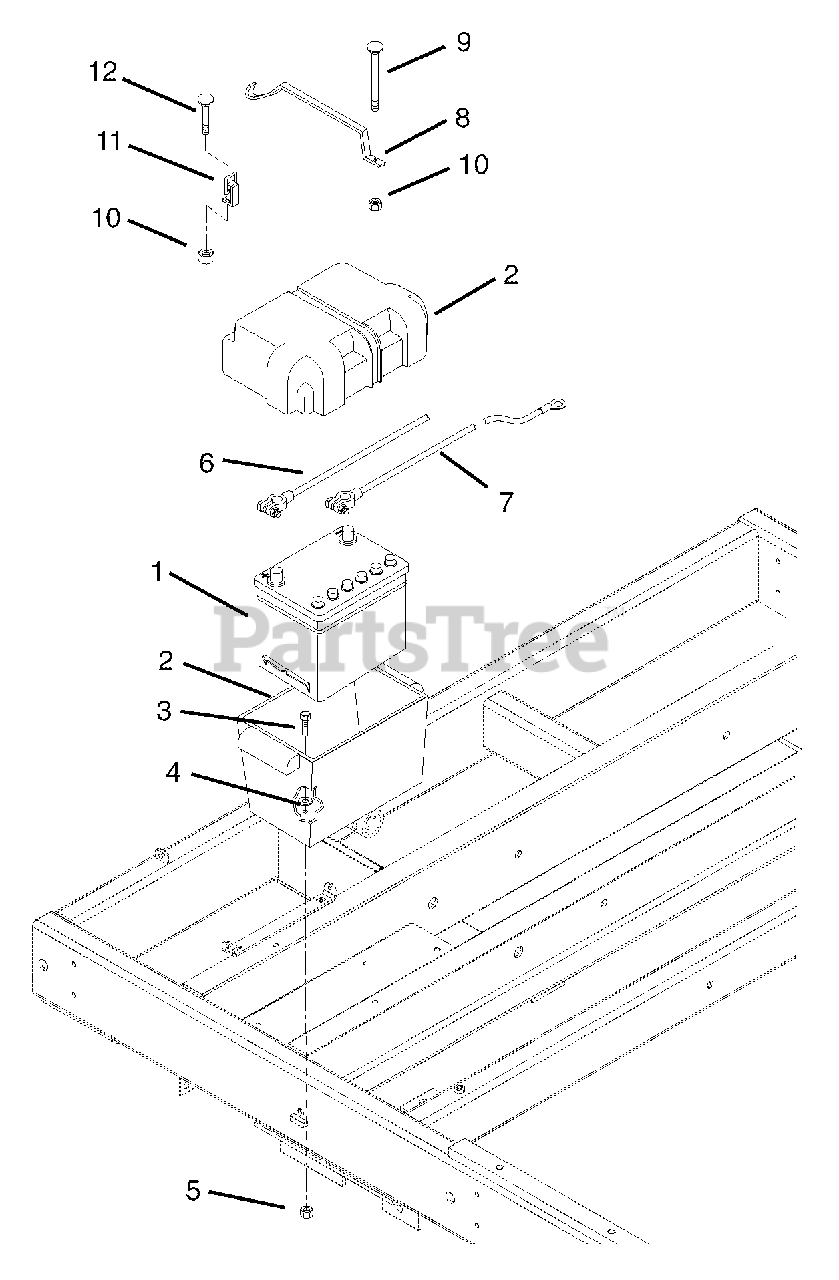

Battery Parts Diagram

  • Title

1

Gravely 09318400

Battery

$

$

Not available

2

Gravely 09318900

Battery Box

$

$

Not available

3

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 04202100

Battery Cable
(Superseded to 02087400)

Note: (Options 1-3 & 10-12)

$

$

Not available

6

Gravely 09352000

Cable-Battery Positive

Note: (Option 13)

$

$

Not available

7

Gravely 09062000

Cable-Negative Battery

Note: (Options 1-3 & 10-12)

$

$

Not available

7

Gravely 09352100

Cable-Negative Battery

Note: (Option 13)

$

$

Not available

8

Gravely 09329351

Strap-Battery Hold Down

$

$

Not available

9

Gravely 06219500

Bolt-Round Head Square Neck .31-18 x 6.50

$

$

Not available

10

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09329451

Latch Assembly-Battery Hold Down

$

$

Not available

12

Gravely 06219400

Bolt-Round Head Square Neck .31-18 x 2.50
(Superseded to 06200409)

$3.49

$

Usually ships in 4-12 days

0
