993517 (Pro-Chip 1286) - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Hydraulic Brake Line Kit (Option 5) Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

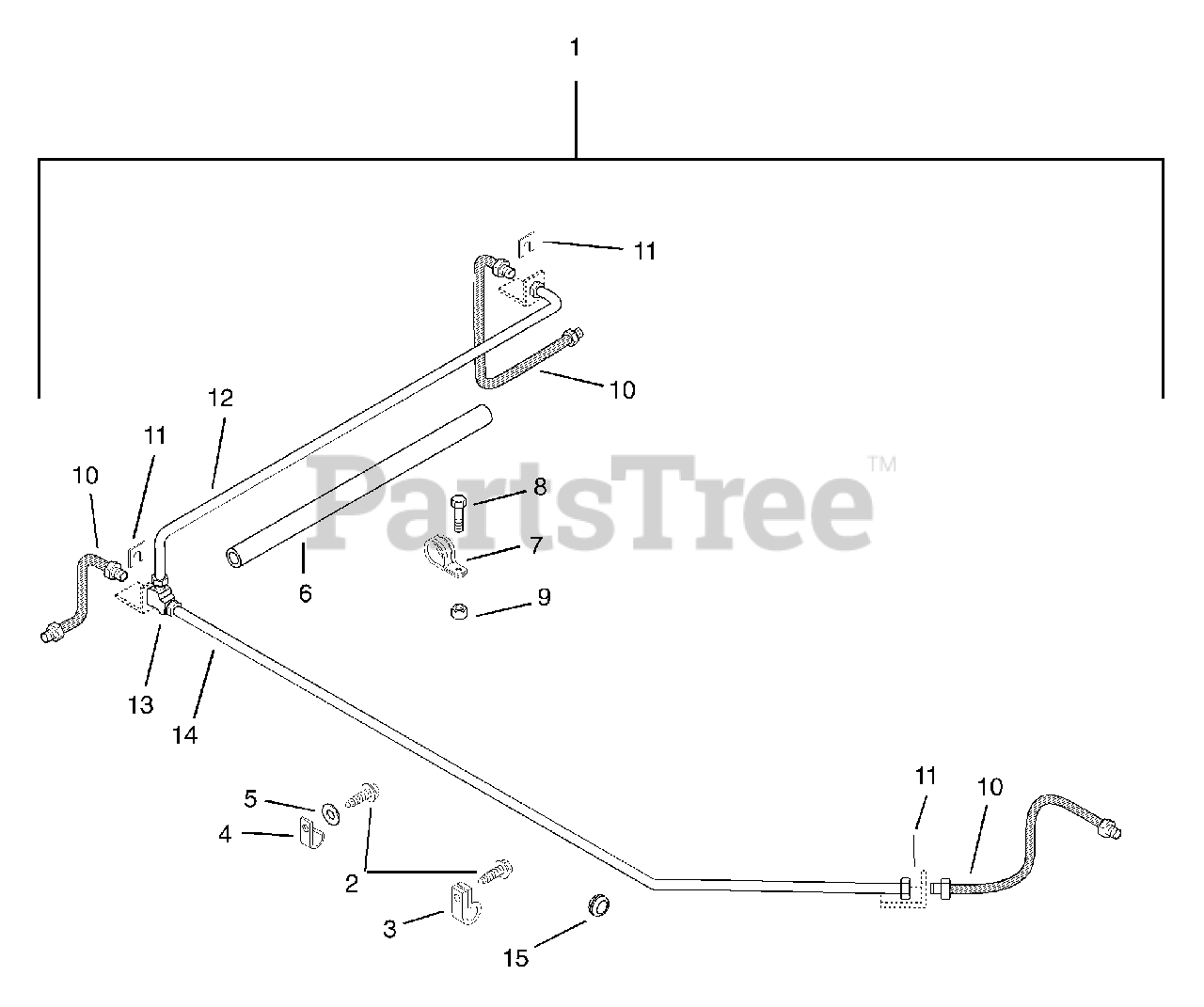

Hydraulic Brake Line Kit (Option 5) Parts Diagram

  • Title

1

Gravely 09324300

Brake Line Kit

Note: (Contains Items 10-14)

$

$

Not available

2

Gravely 07412000

Screw-Tapping-Hex Washer Head .25 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06904800

Clip

$

$

Not available

4

Gravely 06916000

J-Clamp

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 09329600

Tube-Brake Line Protective

$

$

Not available

7

Gravely 06917900

Clamp-Steel 1.0

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09329800

Hose-18" Hydraulic Brake

$

$

Not available

11

Gravely 09329900

Clip-Hose

$

$

Not available

12

Gravely 09330000

Line-Brake 3/16 x 72

$

$

Not available

13

Gravely 09330200

Tee-3/16 Adapter

$

$

Not available

14

Gravely 09330100

Line-Brake 3/16 x 100

$

$

Not available

15

Gravely 07532300

Grommet

$

$

Not available
