993517 (Pro-Chip 1286) - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Clutch - Auto (Option 11, 12 & 13) Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

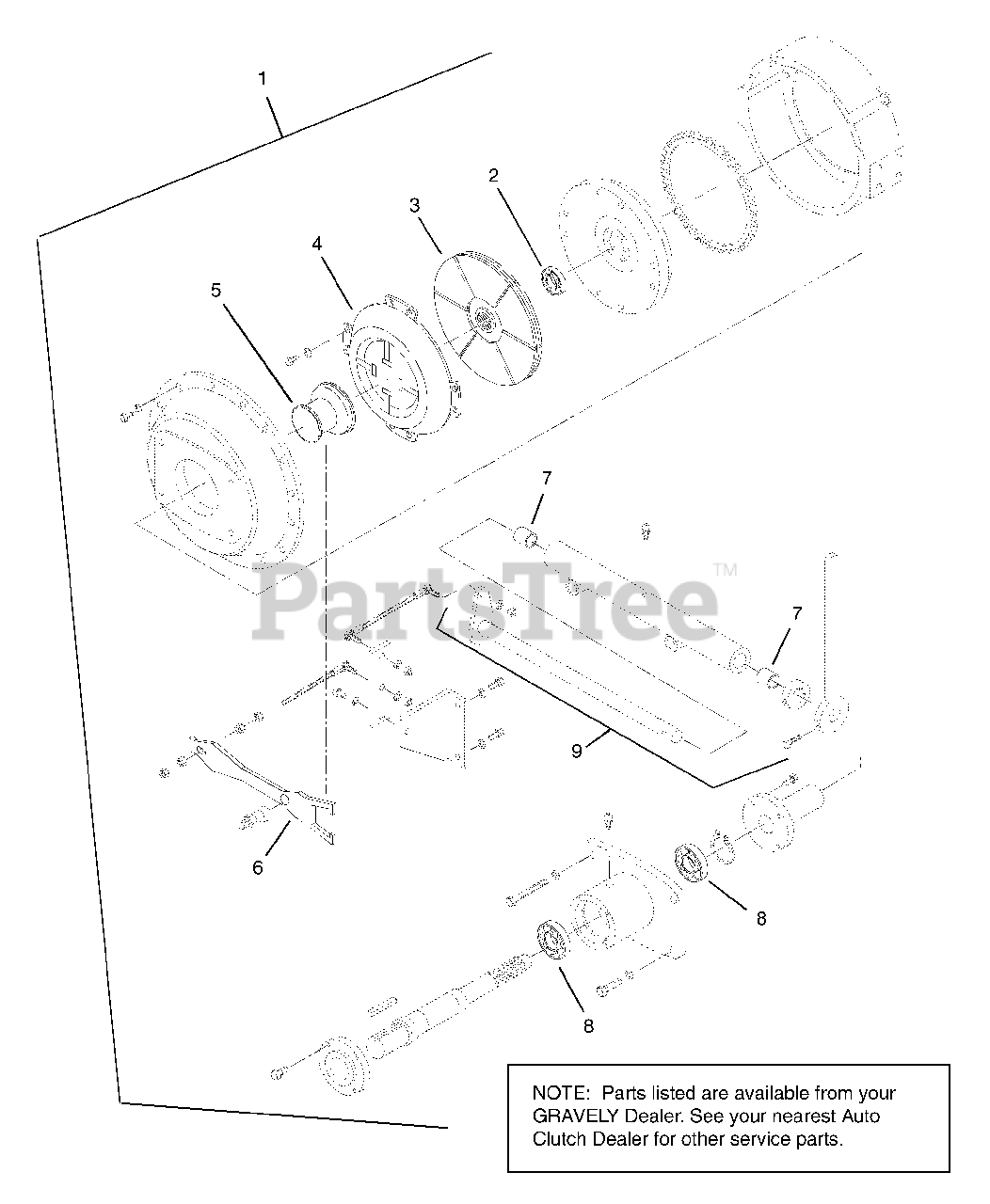

Clutch - Auto (Option 11, 12 & 13) Parts Diagram

  • Title
1

Gravely 09347600

Clutch Assembly

Note: (Contains Items 2-9); (Options 11 & 12)

$

$

Not available

1

Gravely 09351200

Clutch Assembly

Note: (Option 13); (Contains 2-9)

$

$

Not available

2

Gravely 59312800

Pilot Bearing

Note: (Options 11 & 12)

$

$

Not available

2

Gravely 59312900

Pilot Bearing

Note: (Option 13)

$

$

Not available

3

Gravely 59313000

Disk, Clutch

$

$

Not available

4

Gravely 59313200

Plate, Pressure Clutch

$

$

Not available

5

Gravely 59313100

Bearing, Throw-Out

$

$

Not available

$

$

Not available

7

Gravely 59313400

Bushing, Shaft

$

$

Not available

8

Gravely 59313500

Bearing, PTO

$

$

Not available

9

Gravely 59316000

Shaft - Clutch Release Assembly

$

$

Not available
