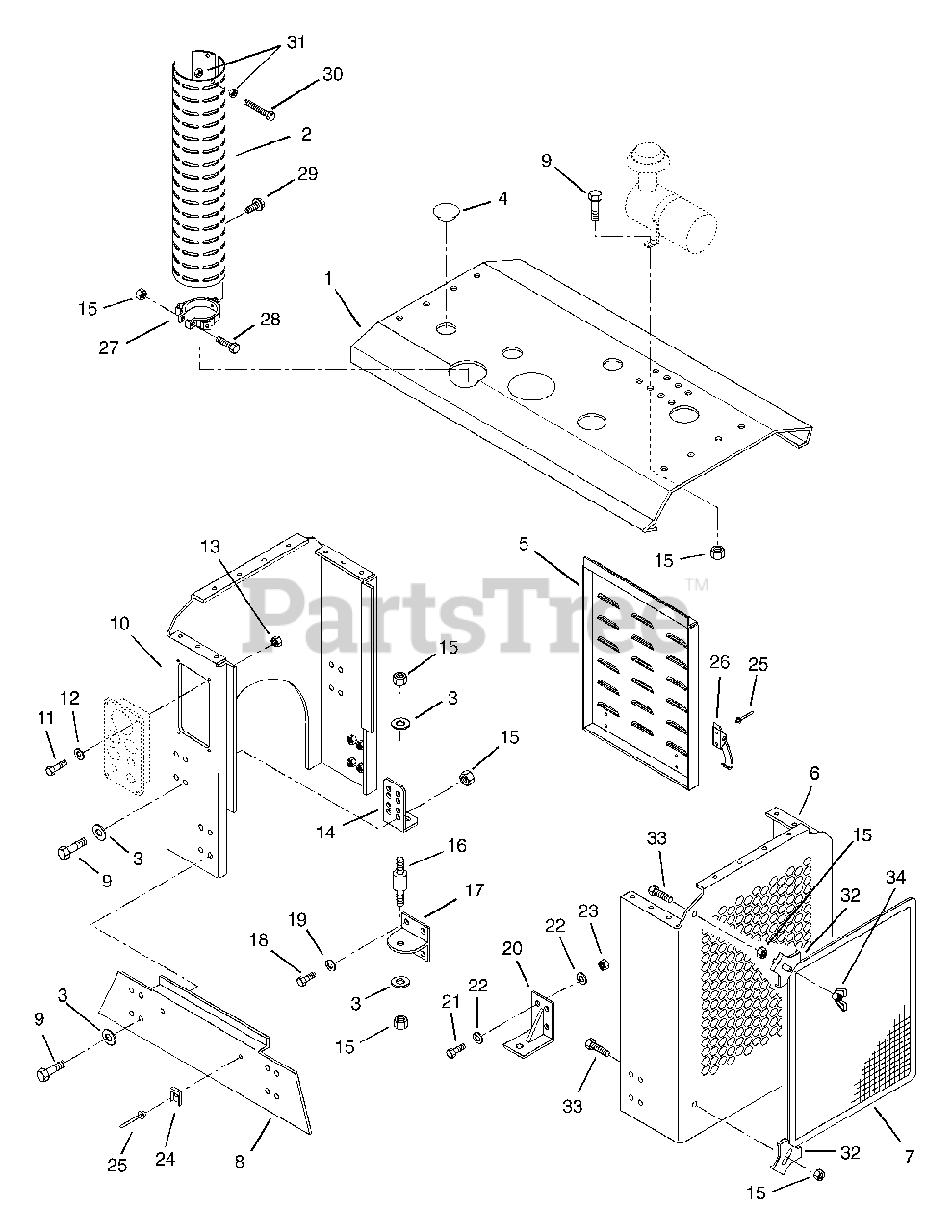

993516 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Engine Housing And Muffler Guard Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

Engine Housing And Muffler Guard Parts Diagram

  • Title

1

Gravely 09330550

Hood-81HP with Donaldson Air Cleaner

Note: (Option 1)

$

$

Not available

1

Gravely 09330650

Hood-99HP with Donaldson Air Cleaner

Note: (Option 2)

$

$

Not available

1

Gravely 09330750

Hood-108HP with Donaldson Air Cleaner

Note: (Option 3)

$

$

Not available

1

Gravely 09349500

Hood-86HP

Note: (Options 10 & 11)

$176.99

$

Usually ships in 4-12 days

0

1

Gravely 09350300

Hood-110HP

Note: (Option 12)

$176.99

$

Usually ships in 4-12 days

0

1

Gravely 09350700

Hood-115 HP

Note: (Option 13)

$

$

Not available

2

Gravely 09330400

Guard-Muffler

Note: (Options 1 - 3)

$

$

Not available

2

Gravely 09350400

Guard-Muffler

Note: (Options 10 - 12)

$

$

Not available

2

Gravely 09351500

Guard-Muffler

Note: (Option 13)

$

$

Not available

3

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09323200

Hole Plug

Note: (Options 1 - 3)

$

$

Not available

5

Gravely 09322850

Door

Note: (Options 1 - 3)

$

$

Not available

5

Gravely 09349600

Door

Note: (Options 10 - 13)

$

$

Not available

6

Gravely 09322650

Front Panel

Note: (Options 1 - 3)

$

$

Not available

6

Gravely 09349400

Front Panel

Note: (Options 10 - 13)

$

$

Not available

7

Gravely 09333100

Radiator Screen

$

$

Not available

8

Gravely 09322950

Side Filler Panel

Note: (Options 1 - 3)

$

$

Not available

8

Gravely 09349100

Side Filler Panel-Right Hand

Note: (Options 10 - 13)

$

$

Not available

8

Gravely 09349200

Side Filler Panel-Left Hand

Note: (Options 10 - 13)

$

$

Not available

9

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09322550

Rear Panel

Note: (Options 1 - 3)

$

$

Not available

10

Gravely 09349300

Rear Panel

Note: (Options 10 - 13)

$

$

Not available

11

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

12

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06529700

Nut-Lock-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09323000

Outer Support Bracket

$

$

Not available

15

Gravely 06529800

Nut-Lock-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 09323400

Isolator

$

$

Not available

17

Gravely 09323100

Inner Support Bracket

Note: (Options 1 - 3 & 10 - 12)

$

$

Not available

18

Gravely 05946400

Bolt-Hex .50-13 x 1.00 Grade 5

$

$

Not available

19

Gravely 06307300

Washer-Lock .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

20

Gravely 09323500

Inner Support Bracket

Note: (Options 1 - 3 & 10 - 12)

$

$

Not available

21

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 09329000

Catch-Over Center Latch

$

$

Not available

25

Gravely 06803900

Rivet-Pop-Dome Steel .187 x .277

$

$

Not available

26

Gravely 09328900

Latch-Over Center

$

$

Not available

27

Gravely 09330300

Clamp-Muffler Guard

Note: (Option 1 - 3 & 10 - 12)

$

$

Not available

27

Gravely 09351600

Clamp-Muffler Guard

Note: (Option 13)

$

$

Not available

28

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

29

Gravely 07411500

Screw-Tapping-Hex Washer Head .31-18 x .50
(Superseded to 07400124)

Note: (Options 1 - 3 & 10 - 12)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 07411500

Screw-Tapping-Hex Washer Head .31-18 x .50
(Superseded to 07400124)

Note: (Option 13)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05961600

Bolt-Hex .25-20 x 2.50 Grade 5

Note: (Options 1 - 3 & 10 - 12)

$2.49

$

In Stock, only 1 left!

0

31

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: (Options 1 - 3 & 10 - 12)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 09333200

Clip-Screen

$

$

Not available

33

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06537100

Nut-Wing-Nylon .312-18

$5.99

$

In Stock, only 1 left!

0
