993516 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Discharge Chute And Flywheel Lock Pin Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

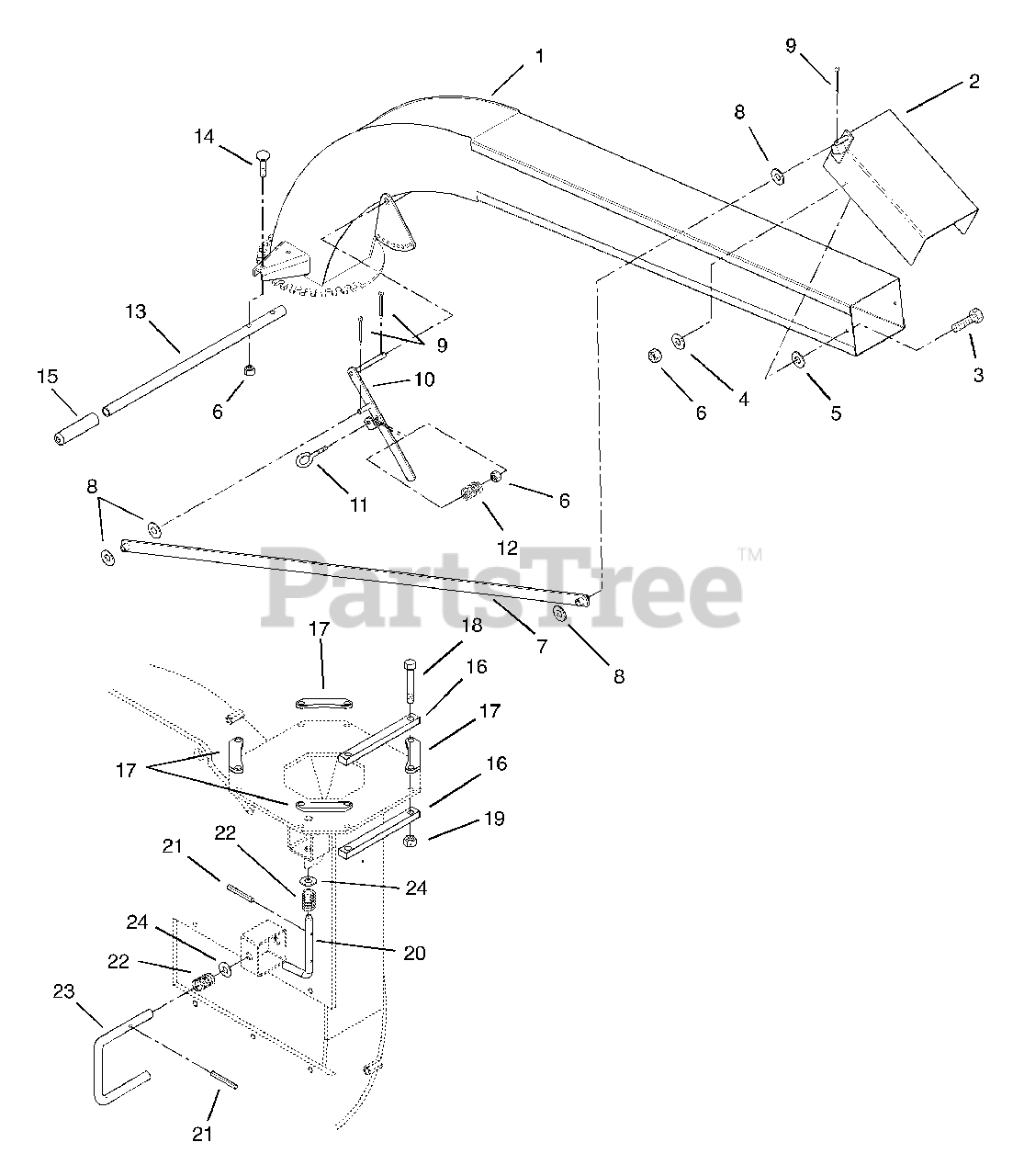

Discharge Chute And Flywheel Lock Pin Parts Diagram

  • Title
1

Gravely 09328100

Discharge Chute Weldment

$

$

Not available

2

Gravely 09313200

Bonnet Weldment

$

$

Not available

3

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06425000

Washer-Flat-Nylon .38 x 1.0 x .083

$

$

Not available

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09316100

Control Lever Weldment

$

$

Not available

8

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06707100

Pin-Cotter .120 x 1.0

$0.99

$

In Stock, Qty 10

0

10

Gravely 09313300

Adjustment Handle Weldment

$

$

Not available

11

Gravely 07030000

Eye Bolt .375-16 x 2.50

$7.99

$

Usually ships in 4-12 days

0

12

Gravely 08300600

Spring-Compression .045 x .50 x 1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 7

0

13

Gravely 09319900

Rotation Handle

$

$

Not available

14

Gravely 06220500

Bolt-Round Head Square Neck .38-16 x 2.00
(Superseded to 06224300)

$3.99

$

In Stock, only 4 left!

0

15

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 09337200

Clamp-Discharge Chute

$

$

Not available

17

Gravely 09337100

Guide-Discharge Chute

$

$

Not available

18

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

19

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 04106200

Pin Index

$

$

Not available

21

Gravely 05803000

Pin-Roll .188 x 1.50

$0.99

$

In Stock, Qty 20+

0

22

Gravely 08324100

Spring-Compression .080 x .91 x 3.38

$

$

Not available

23

Gravely 09314400

Flywheel Lock Pin

$

$

Not available

24

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0
