993502 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Saddle And Upper Roller Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

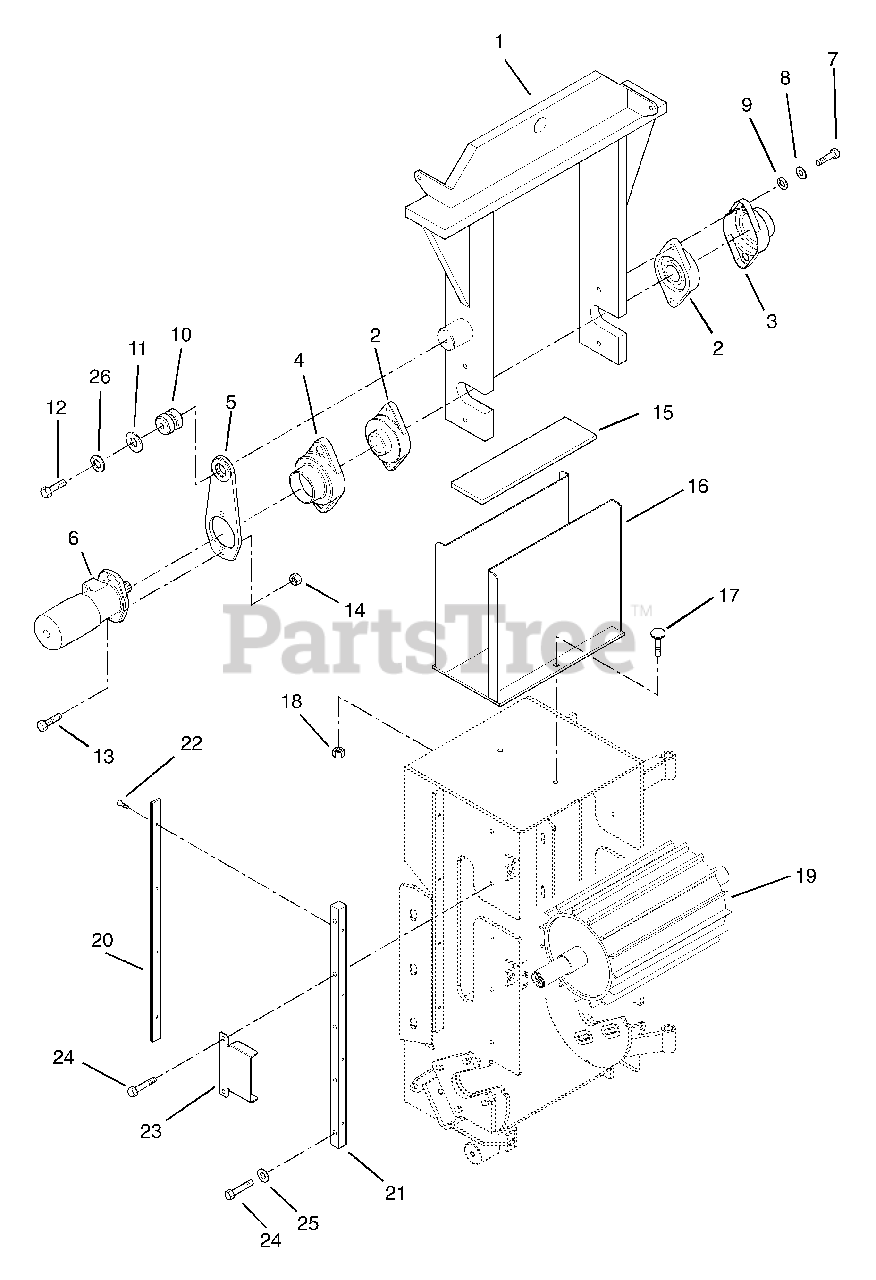

Saddle And Upper Roller Parts Diagram

  • Title
1

Gravely 59311300

Saddle Replacement

$

$

Not available

1

Gravely 09346700

Saddle Weldment Assembly

$

$

Not available

2

$

$

Not available

3

Gravely 09338100

Cover-Bearing

$

$

Not available

4

Gravely 09338000

Cover-Shaft

$

$

Not available

5

Gravely 09336900

Torque Arm Weldment

$

$

Not available

5

Gravely 09346600

Torque Arm Weldment

$

$

Not available

6

Gravely 09334600

Hydraulic Motor

$

$

Not available

7

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06307300

Washer-Lock .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

10

Gravely 09318200

Rubber Bushing

$

$

Not available

10

Gravely 09346200

Bushing-Isolation

$

$

Not available

11

Gravely 06440900

Washer-Flat-Steel .50 x 2.25 x .13

$

$

Not available

11

Gravely 06445600

Washer-Flat-Steel .656 x 2.52 x .184

$

$

Not available

12

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

12

Gravely 05971200

Bolt-Hex .625-11 x 4.00 Grade 8

$

$

Not available

13

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

15

Gravely 09318800

Rubber Stop

$

$

Not available

16

Gravely 09317900

Saddle Guard Weldment

$

$

Not available

17

Gravely 06215500

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

18

Gravely 06529600

Nut-Lock-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09334700

Roller-Top Weldment

$

$

Not available

20

Gravely 09317300

Wear Strip

$

$

Not available

21

Gravely 09316450

Front Guide

$

$

Not available

22

Gravely 06117300

Screw-Machine .25-20 x .50

$

$

Not available

23

Gravely 09320200

Feed Box Guard

$

$

Not available

24

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

25

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

26

Gravely 06309500

Washer-Locking .62 x .156

$2.49

$

Usually ships in 4-12 days

0
