993502 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Lights And Wiring Harness Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

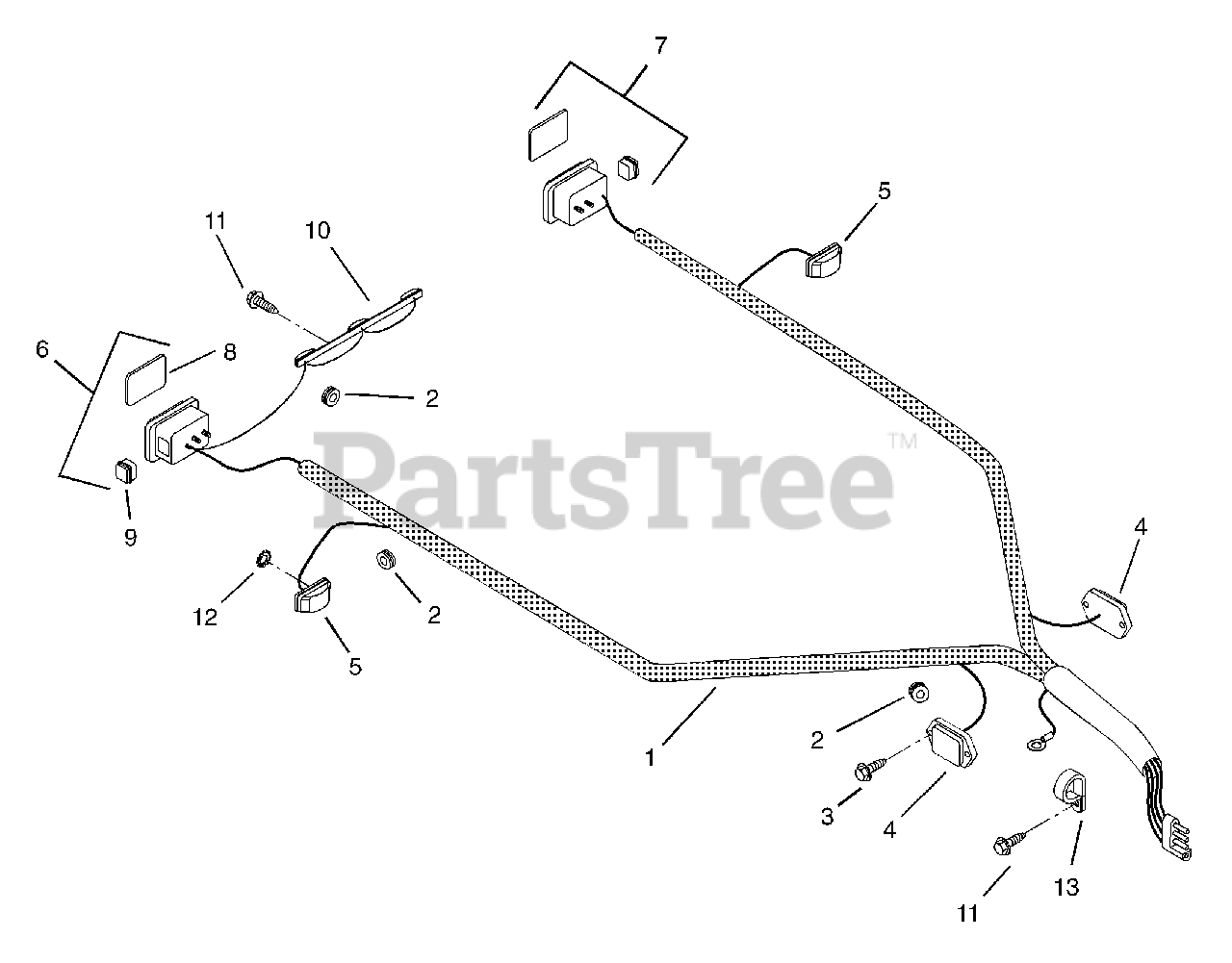

Lights And Wiring Harness Parts Diagram

  • Title

1

Gravely 09347500

Wiring Harness-Trailer Lights

$

$

Not available

2

Gravely 07506400

Grommet .188 x .500 Inside Diameter

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06116700

Screw-Tapping 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09320500

Light-Side Marker-Ear Mount

$

$

Not available

5

Gravely 09321400

Light-Amber-Stud Mount

$

$

Not available

6

Gravely 09321700

Tail Light-Right Hand

$

$

Not available

7

Gravely 09321600

Tail Light-Left Hand

$

$

Not available

8

Gravely 09310000

Lens-Tail Light Replacement

$

$

Not available

9

Gravely 09322200

Lens-S/M Replacement

$

$

Not available

10

Gravely 09321500

Light Bar-ID Bar

$

$

Not available

11

Gravely 07412000

Screw-Tapping-Hex Washer Head .25 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06306800

Washer-Locking-External .262 x .502 x .026
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 06908200

Clamp

$5.99

$

Usually ships in 4-12 days

0
