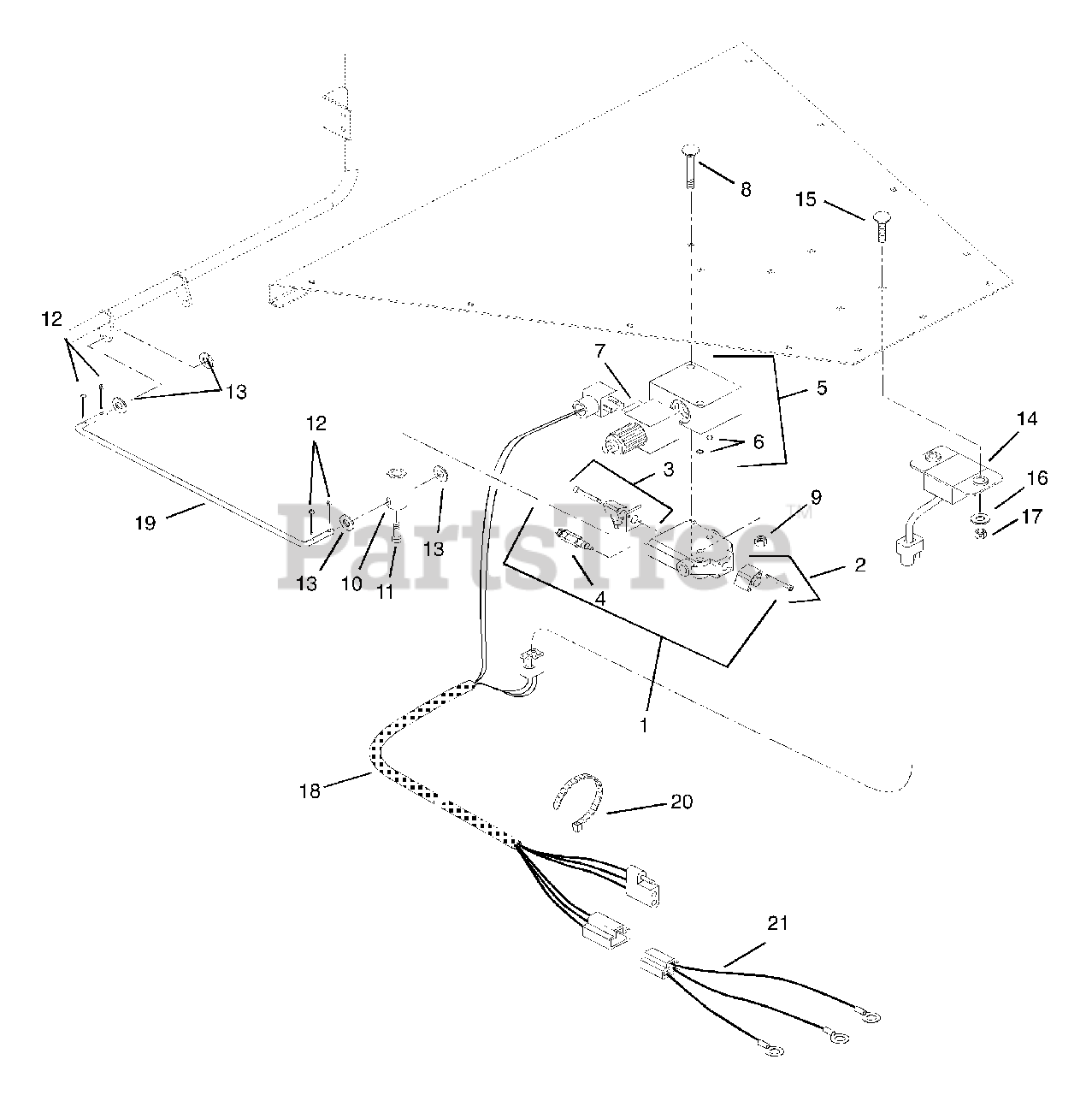

993502 - Gravely Pro-Chip 12" Chipper, Perkins Diesel (SN: 000101 & Above) Hydraulic Control Valve And Autofeed Parts Diagram

Pro-Chip 12" Chipper, Perkins Diesel

Hydraulic Control Valve And Autofeed Parts Diagram

  • Title

1

Gravely 09308800

Valve-Hydraulic

Note: (Option 8)

$

$

Not available

1

Gravely 09334900

Valve-Directional Control Module

Note: (Option 9); (Both Options Contain Items 2-4)

$

$

Not available

2

Gravely 09333900

Detent Assembly-Hydraulic Control Valve

$

$

Not available

3

Gravely 09334100

Lever Assembly-Hydraulic Control Valve

$

$

Not available

4

Gravely 09334000

Relief Valve Assembly-Hydraulic Control Valve

$

$

Not available

5

Gravely 09335000

Valve Base Assembly-Flow Control

Note: (Option 9)

$

$

Not available

6

Gravely 05608400

O-Ring .375 x .504 x .070

Note: (Option 9)

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 09335100

Valve-Cartridge -Flow Control

Note: (Option 9)

$

$

Not available

8

Gravely 06212300

Bolt-Round Head Square Neck .31-18 x 2.75

Note: (Option 8)

$2.99

$

In Stock, only 4 left!

0

8

Gravely 06222500

Bolt-Round Head Square Neck .31-18 x 4.00

Note: (Option 9)

$3.99

$

In Stock, only 3 left!

0

9

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09309600

Hex Adapter

$

$

Not available

11

Gravely 05932500

Screw-Socket Head M8 x 1.25 x 20mm

$

$

Not available

12

Gravely 06712300

Pin-Cotter .156 x 1.00

$2.49

$

In Stock, Qty 5

0

13

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09338800

Module-Load Control

Note: (Option 9)

$

$

Not available

15

Gravely 06219800

Bolt-Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

Note: (Option 9)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

Note: (Option 9)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

Note: (Option 9)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 09338200

Harness-Wiring Autofeed

Note: (Option 9)

$

$

Not available

18

Gravely 09352400

Harness-Wiring Autofeed

Note: (Option 9)

$

$

Not available

19

Gravely 09311000

Rod-Valve Control

$

$

Not available

20

Gravely 07517300

Cable Tie

$

$

Not available

21

Gravely 09352500

Harness-Adapter Autofeed

Note: (Option 9 With Options 10-12)

$

$

Not available
