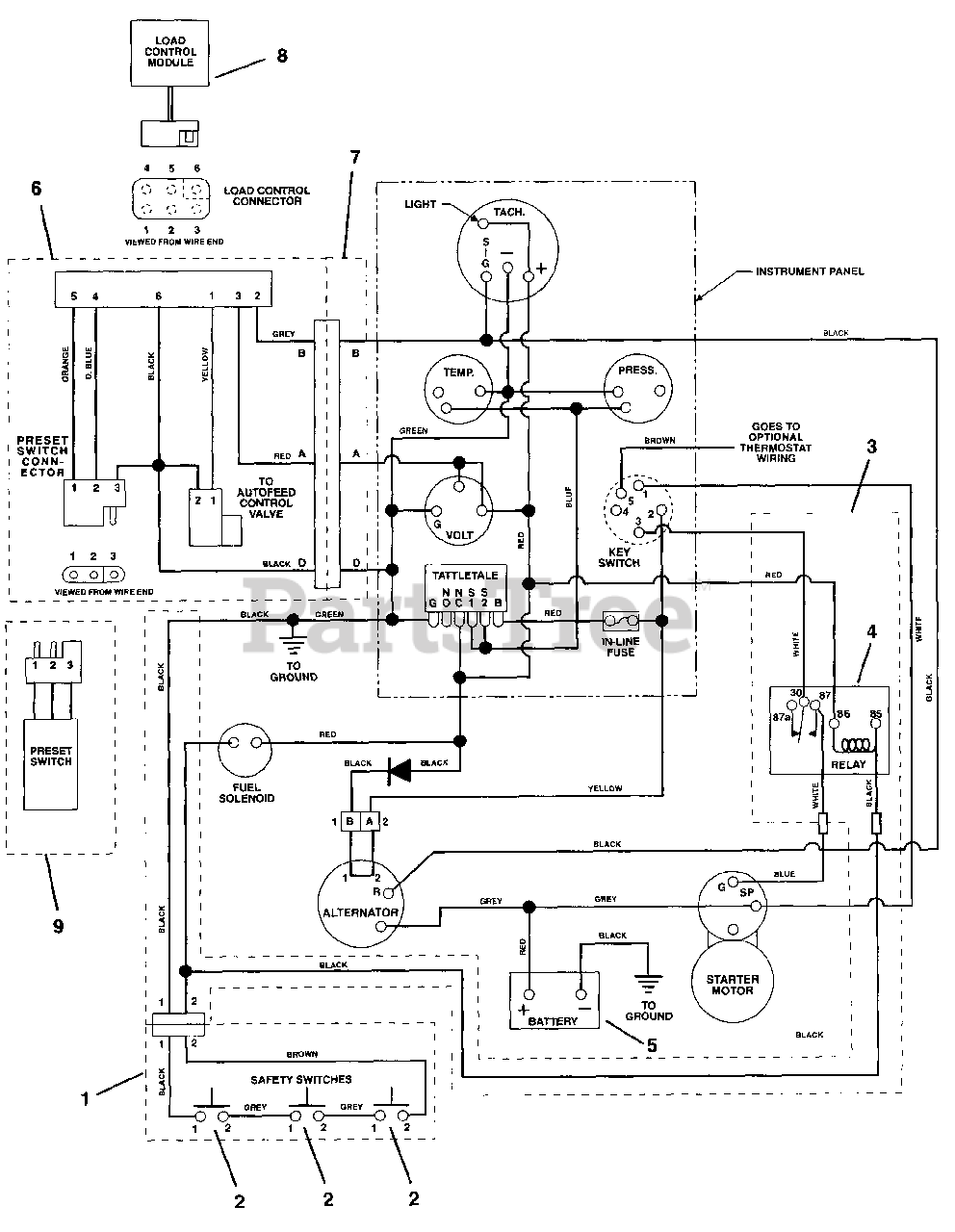

993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Wiring Diagram Parts Diagram

Pro-Chip Chipper, Perkins Diesel

Wiring Diagram Parts Diagram

  • Title

1

Gravely 09350500

Harness-Wiring, Safety Switch

Note: (Includes Item 2)

$

$

Not available

1

Gravely 09352200

Harness-Wiring, Safety Switch

$

$

Not available

2

Gravely 09348500

Safety Switch

$

$

Not available

3

Gravely 09339800

Harness-Relay/Safety

Note: (Includes Item 4)

$

$

Not available

3

Gravely 09352300

Harness-Relay/Safety

$

$

Not available

4

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

5

Gravely 09318400

Battery

$

$

Not available

6

Gravely 09338200

Harness-Wiring, 495 Autofeed

Note: (Option 9)

$

$

Not available

6

Gravely 09352400

Harness-Wiring, Autofeed

Note: (Option 9)

$

$

Not available

7

Gravely 09352500

Harness-Adapter, Autofeed

Note: (Option 9)

$

$

Not available

8

Gravely 09338800

Module-Load Control

Note: (Option 9)

$

$

Not available

9

Gravely 79301800

Pre-Set Switch

$

$

Not available
