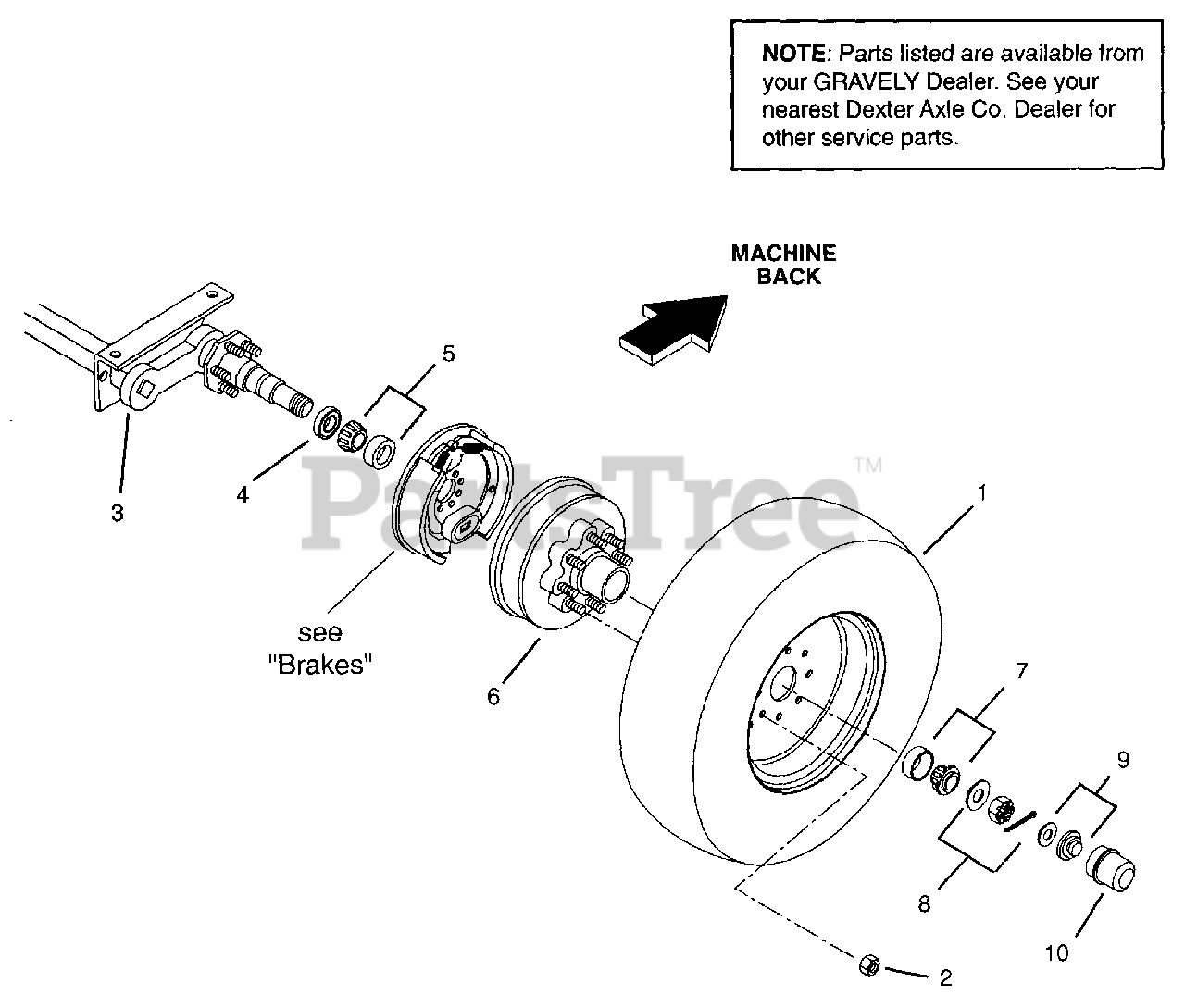

993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Wheels And Suspension Parts Diagram

Pro-Chip Chipper, Perkins Diesel

Wheels And Suspension Parts Diagram

  • Title

1

Gravely 07140100

Tire/Rim Assembly

$

$

Not available

2

Gravely 06517600

Wheel Nut .50-20 13/16 Across Flats Automotive Type
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09317200

Axle-6000lb 8 Lug Hydraulic Surge

Note: (Option 5). Includes Brakes-Hub & Drum-etc.- without Tire & Wheel

$

$

Not available

3

Gravely 09337800

Axle-6000lb 8 Lug Electric Brake

Note: (Option 4). Includes Brakes-Hub & Drum-etc.- without Tire & Wheel

$

$

Not available

4

Gravely 59303300

Grease Seal

$

$

Not available

5

Gravely 59303400

Inner Bearing Cup & Cone

$

$

Not available

6

Gravely 59303200

Hub & Drum

Note: (Option 5)

$

$

Not available

6

Gravely 59305900

Hub & Drum-Electric

Note: (Option 4)

$

$

Not available

7

Gravely 59303500

Outer Bearing Cup & Cone

$

$

Not available

8

Gravely 59303800

Hardware Kit

$

$

Not available

9

Gravely 59303700

Plug Kit

$

$

Not available

10

Gravely 59303600

Grease Cap

$

$

Not available
