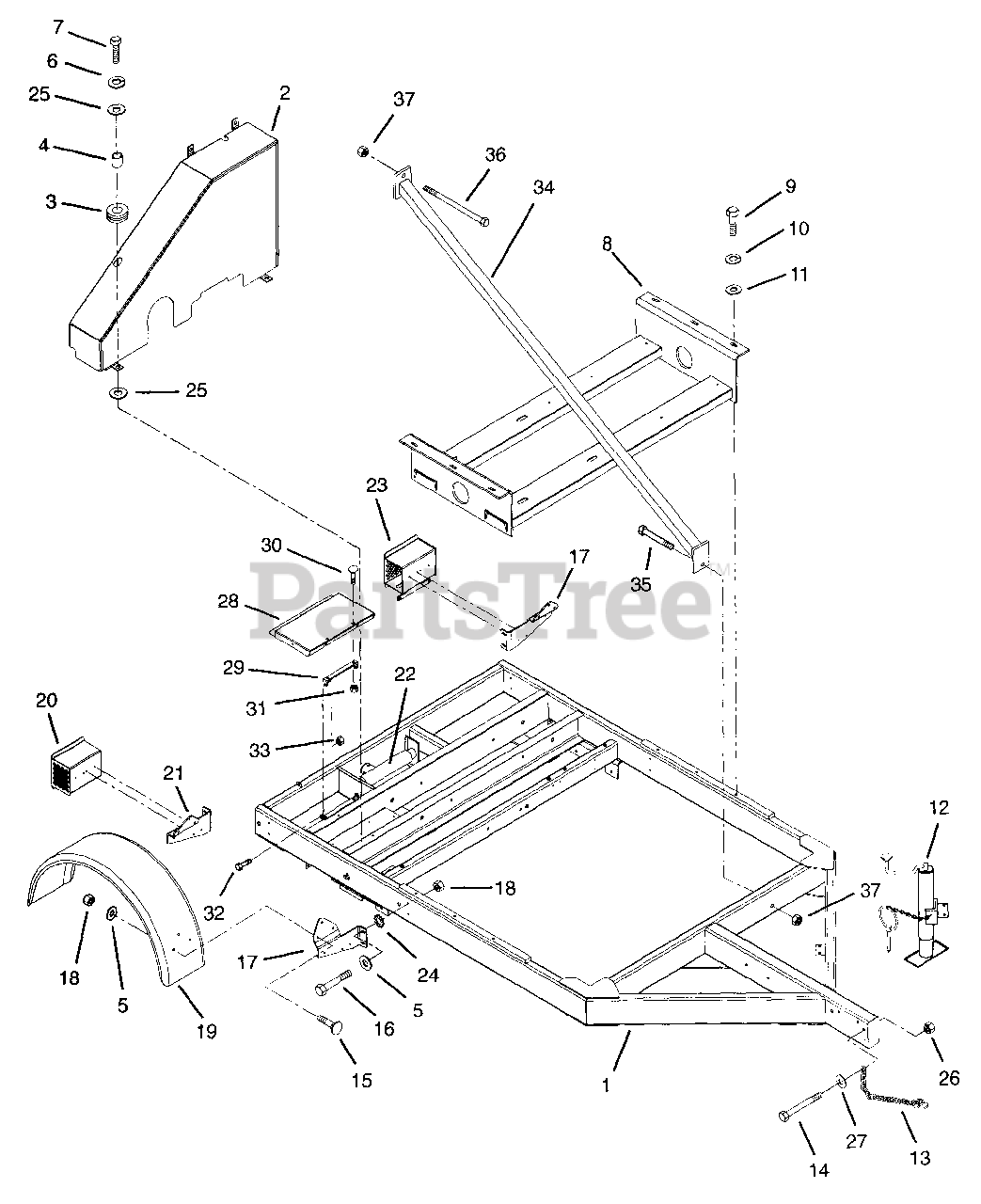

993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Frame Parts Diagram

Pro-Chip Chipper, Perkins Diesel

Frame Parts Diagram

  • Title

1

Gravely 59310500

Frame Weldment

$

$

Not available

1

Gravely 09347300

Frame Weldment

$

$

Not available

2

Gravely 09327300

Weldment-Belt Guard

$

$

Not available

3

Gravely 07506400

Grommet .188 x .500

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 09326700

Bushing

$

$

Not available

5

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308800

Washer-Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 59315900

Engine Base Weldment

Note: (Options 1, 2, 3, 10 - 12)

$

$

Not available

Gravely 09350900

Engine Base Weldment

Note: (Options 1, 2, 3, 10 - 12)

$

$

Not available

Gravely 09350600

Engine Base Weldment

Note: (Option 13)

$

$

Not available

9

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 06307300

Washer-Lock .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

11

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 09332400

Jack

$

$

Not available

13

Gravely 09319500

Safety Chain

$

$

Not available

14

Gravely 05964200

Bolt-Hex .44-14 x 5.00 Grade 5

$

$

Not available

15

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05960600

Bolt-Hex .31-18 x 2.75 Grade 5
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

17

Gravely 09318100

Fender Bracket-Left Hand

$

$

Not available

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 09317400

Fender
(Superseded to 09317450)

$

$

Not available

20

Gravely 09322100

Tail Light Bracket Weldment

$

$

Not available

21

Gravely 09318000

Fender Bracket Right Hand

$

$

Not available

22

Gravely 09320400

Jack

$

$

Not available

23

Gravely 09322300

Left Hand Tail Light Bracket Weldment

$

$

Not available

24

Gravely 06307200

Washer-Locking-External .326 x .599 x .031
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

25

Gravely 06441700

Washer-Flat-Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

26

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

27

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

28

Gravely 09329100

Tool Box Lid

$

$

Not available

29

Gravely 08827600

Bracket -Chute
(Superseded to 08827653)

$

$

Not available

30

Gravely 06219600

Bolt Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

31

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06529700

Nut-Locking-Center.25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 09329200

Brace-Housing Weldment

$45.99

$

Usually ships in 4-12 days

0

34

Gravely 09347400

Brace-Housing Weldment

$

$

Not available

35

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

36

Gravely 05961200

Bolt-Hex .50-13 x 9.00 grade 5
(Superseded to 05901930)

$10.99

$

In Stock, Qty 20+

0

37

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!
