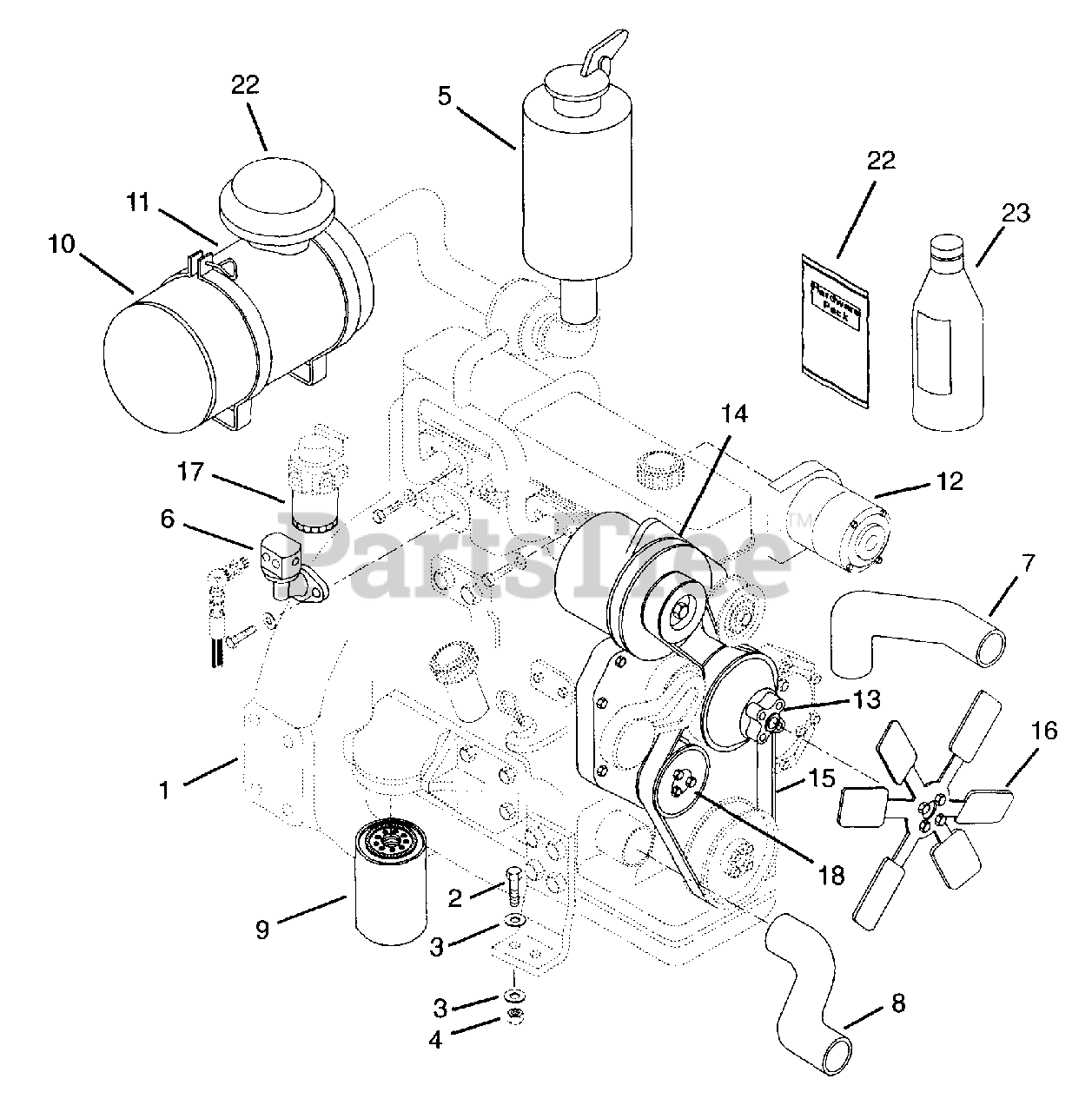

993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Engine (Option 13) Parts Diagram

Pro-Chip Chipper, Perkins Diesel

Engine (Option 13) Parts Diagram

  • Title

1

Gravely 08257300

Engine-John Deere 115 HP

$

$

Not available

2

Gravely 05966900

Bolt-Hex .75-10 x 2.50 Grade 5

$

$

Not available

3

Gravely 06439800

Washer-Flat-Steel .813 x 2.000 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 06535400

Nut-Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 59313800

Muffler

$

$

Not available

6

Gravely 59313900

Pump-Lift (Fuel)

Note: (Fuel)

$

$

Not available

7

Gravely 59314000

Hose-Radiator-Top

$

$

Not available

8

Gravely 59314100

Hose-Radiator-Bottom

$

$

Not available

9

Gravely 59314200

Filter-Oil

$

$

Not available

10

Gravely 59314300

Filter-Air-Primary

$

$

Not available

11

Gravely 59314400

Filter-Air-Secondary

$

$

Not available

12

Gravely 59314500

Starter

$

$

Not available

13

Gravely 59314800

Pump-Water

$

$

Not available

13

Gravely 59314900

Gasket, Water Pump

$

$

Not available

14

Gravely 59315000

Alternator

$

$

Not available

15

Gravely 59315100

Belt

$

$

Not available

16

Gravely 59315200

Fan

$

$

Not available

17

Gravely 59315300

Element-Fuel Filter

$

$

Not available

18

Gravely 59315400

Pump-Oil

$

$

Not available

19

Gravely 59314600

Kit-Gasket Overhaul

$

$

Not available

20

Gravely 59314700

Gasket Set-(Tune-up) (Head Removal)

Note: (Tune-up) (Head Removal)

$

$

Not available

21

Gravely 59315500

Cap-Air Intake

$

$

Not available

22

Gravely 59315600

Test Kit-Coolant Conditioner

$

$

Not available

23

Gravely 59315700

Conditioner-Coolant, 1/2 Gallon

$

$

Not available
