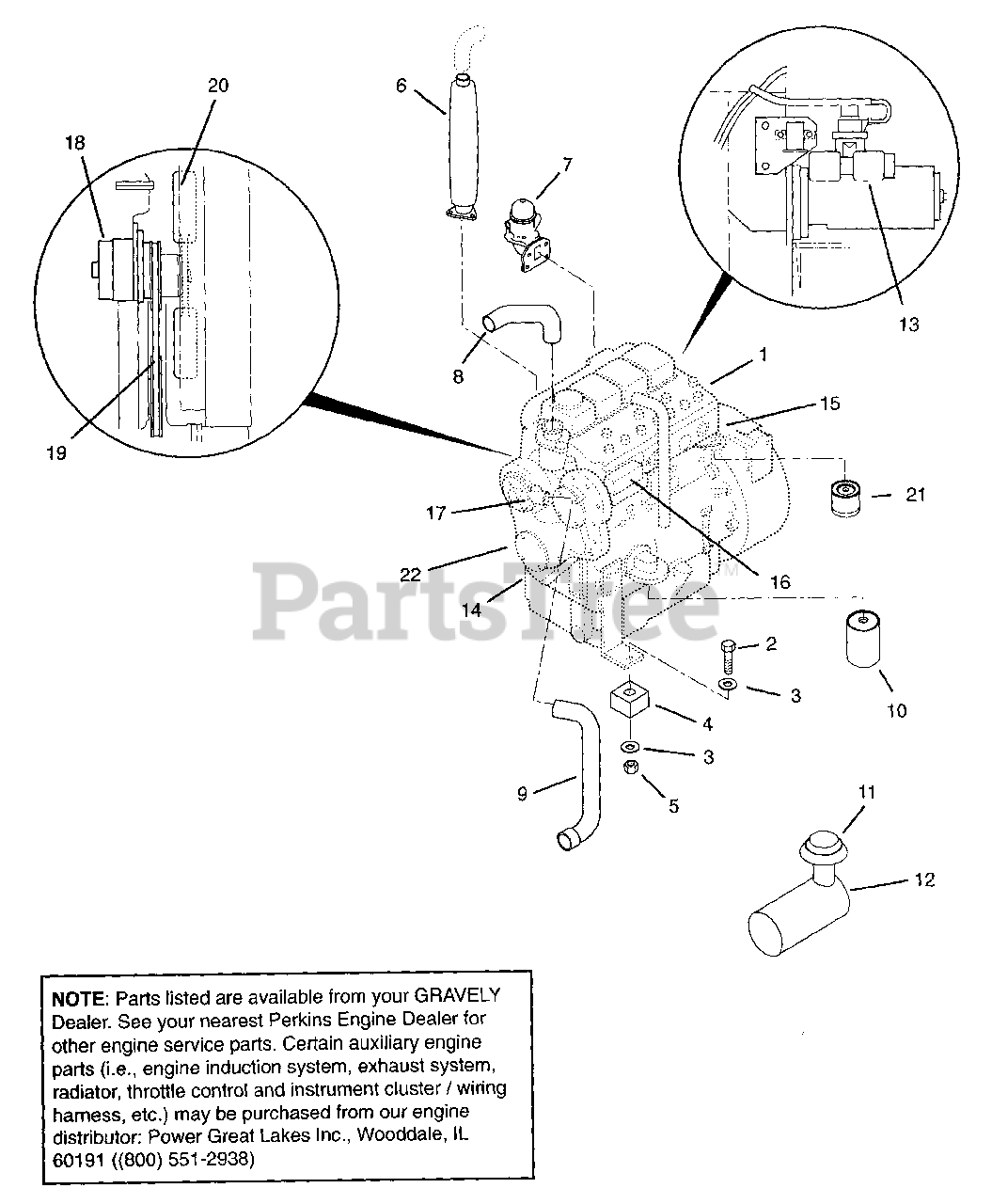

993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Engine (Option 1,2 & 3) Parts Diagram

Pro-Chip Chipper, Perkins Diesel

Engine (Option 1,2 & 3) Parts Diagram

  • Title

1

Gravely 08248400

Engine-Perkins 4.236 81 HP

Note: (Option 1)

$

$

Not available

1

Gravely 08252500

Engine-Perkins T4.236 99 HP

Note: (Option 2)

$

$

Not available

1

Gravely 08252600

Engine-Perkins Fastram 108 HP

Note: (Option 3)

$

$

Not available

2

Gravely 05961700

Bolt-Hex .75-10 x 3.00 Grade 5

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 06439800

Washer-Flat-Steel .813 x 2.000 x .148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 09325000

Engine Base Spacer

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 09351000

Engine Base Spacer

$

$

Not available

5

Gravely 06535400

Nut-Locking-Center .75-10

$5.99

$

Usually ships in 4-12 days

0

6

Gravely 59308900

Muffler

Note: (Option 1)

$

$

Not available

6

Gravely 59309000

Muffler

Note: (Options 2 & 3)

$

$

Not available

7

Gravely 59308300

Pump-Lift

Note: (Option 1)

$

$

Not available

7

Gravely 59310200

Pump-Lift

Note: (Option 2)

$

$

Not available

7

Gravely 59308400

Pump-Lift

Note: (Option 3)

$

$

Not available

8

Gravely 59309400

Hose-Radiator-Top

$

$

Not available

9

Gravely 59309500

Hose-Radiator-Bottom

$

$

Not available

10

Gravely 59307700

Filter-Oil

$

$

Not available

11

Gravely 59307800

Filter-Air-Primary

Note: (Options 1 & 3)

$

$

Not available

11

Gravely 59309900

Filter-Air-Primary

Note: (Option 2)

$

$

Not available

12

Gravely 59307900

Filter-Air-Secondary

Note: (Options 1 & 3)

$

$

Not available

12

Gravely 59310000

Filter-Air-Secondary

Note: (Option 2)

$

$

Not available

13

Gravely 59309600

Starter

Note: (Option 1, 2, & 3)

$

$

Not available

14

Gravely 59308600

Gasket Kit-Bottom

Note: (Options 1 & 2) (Option 3-order individual gaskets from Perkins)

$

$

Not available

15

Gravely 59308500

Gasket Kit-Top

Note: (Option 1) (Option 3-order individual gaskets from Perkins)

$

$

Not available

15

Gravely 59310300

Gasket Kit-Top

Note: (Option 2) (Option 3-order individual gaskets from Perkins)

$

$

Not available

16

Gravely 59308100

Pump-Injection

Note: (Option 1)

$

$

Not available

16

Gravely 59310100

Pump-Injection

Note: (Option 2)

$

$

Not available

16

Gravely 59308200

Pump-Injection

Note: (Option 3)

$

$

Not available

17

Gravely 59308000

Pump-Water

$

$

Not available

18

Gravely 59309700

Alternator

$

$

Not available

19

Gravely 59308700

Belt

Note: (Option 1)

$

$

Not available

19

Gravely 59310400

Belt

Note: (Option 2)

$

$

Not available

19

Gravely 59308800

Belt

Note: (Option 3)

$

$

Not available

20

Gravely 59309200

Fan

Note: (Option 1)

$

$

Not available

20

Gravely 59310600

Fan

Note: (Option 2)

$

$

Not available

20

Gravely 59309300

Fan

Note: (Option 3)

$

$

Not available

21

Gravely 59309800

Element-Fuel Filter

$

$

Not available

22

Gravely 59309100

Pump-Oil

$

$

Not available
