993501 - Gravely Pro-Chip Chipper, Perkins Diesel (SN: 000101 & Above) Couplers And Actuator/Hitch Parts Diagram

Pro-Chip Chipper, Perkins Diesel

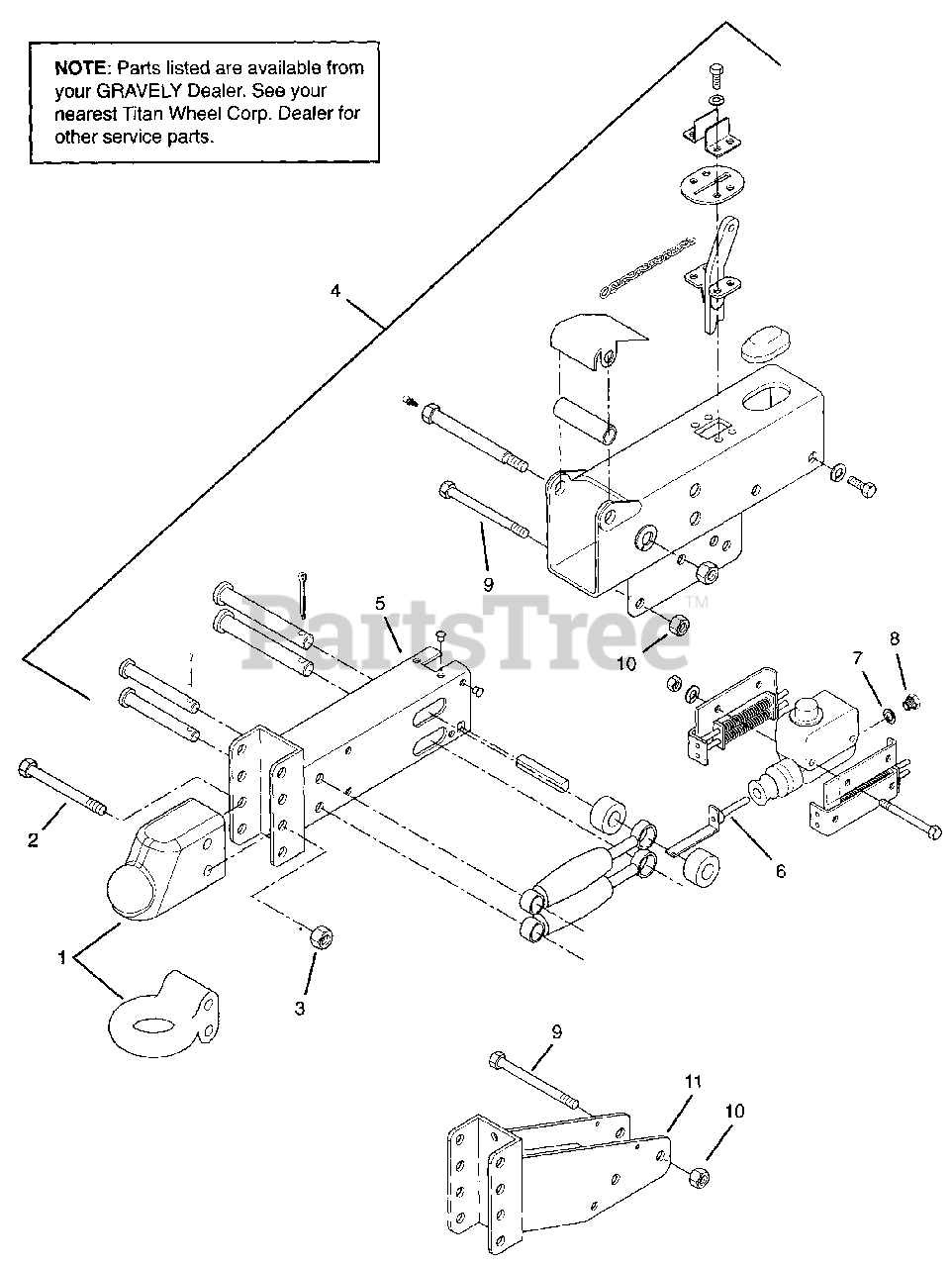

Couplers And Actuator/Hitch Parts Diagram

  • Title

1

Gravely 04113500

Adjustable Ball Coupler

Note: (Option 7)

$

$

Not available

1

Gravely 04124751

Hitch Ring

Note: (Option 6 )

$

$

Not available

2

Gravely 05962400

Bolt-Hex .62-11 x 4.25 Grade 5

$

$

Not available

3

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 09312600

Actuator-Hydraulic Surge

Note: (Option 5 ). Includes Items 5-8 and Repair Kit below

$

$

Not available

Gravely 21509700

1-1/4 Master Cylinder Repair Kit

$

$

Not available

5

Gravely 21509600

Inner Slide Assembly with Channel

$

$

Not available

6

Gravely 21509300

Push Rod Assembly

$

$

Not available

7

Gravely 21509400

Gasket

$

$

Not available

8

Gravely 21509500

Connector

$

$

Not available

9

Gravely 05961900

Bolt-Hex .50-13 x 4.00 Grade 5
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06528200

Nut-Locking .50-13

$3.99

$

In Stock, only 3 left!

0

11

Gravely 09336800

Hitch Assembly

Note: (Option 4)

$

$

Not available
