993401 (Pro-Chip 944) - Gravely Pro-Chip Chipper, 44hp Yanmar Diesel (SN: 000101 & Above) Autofeed (Option 9) Parts Diagram

Pro-Chip Chipper, 44hp Yanmar Diesel

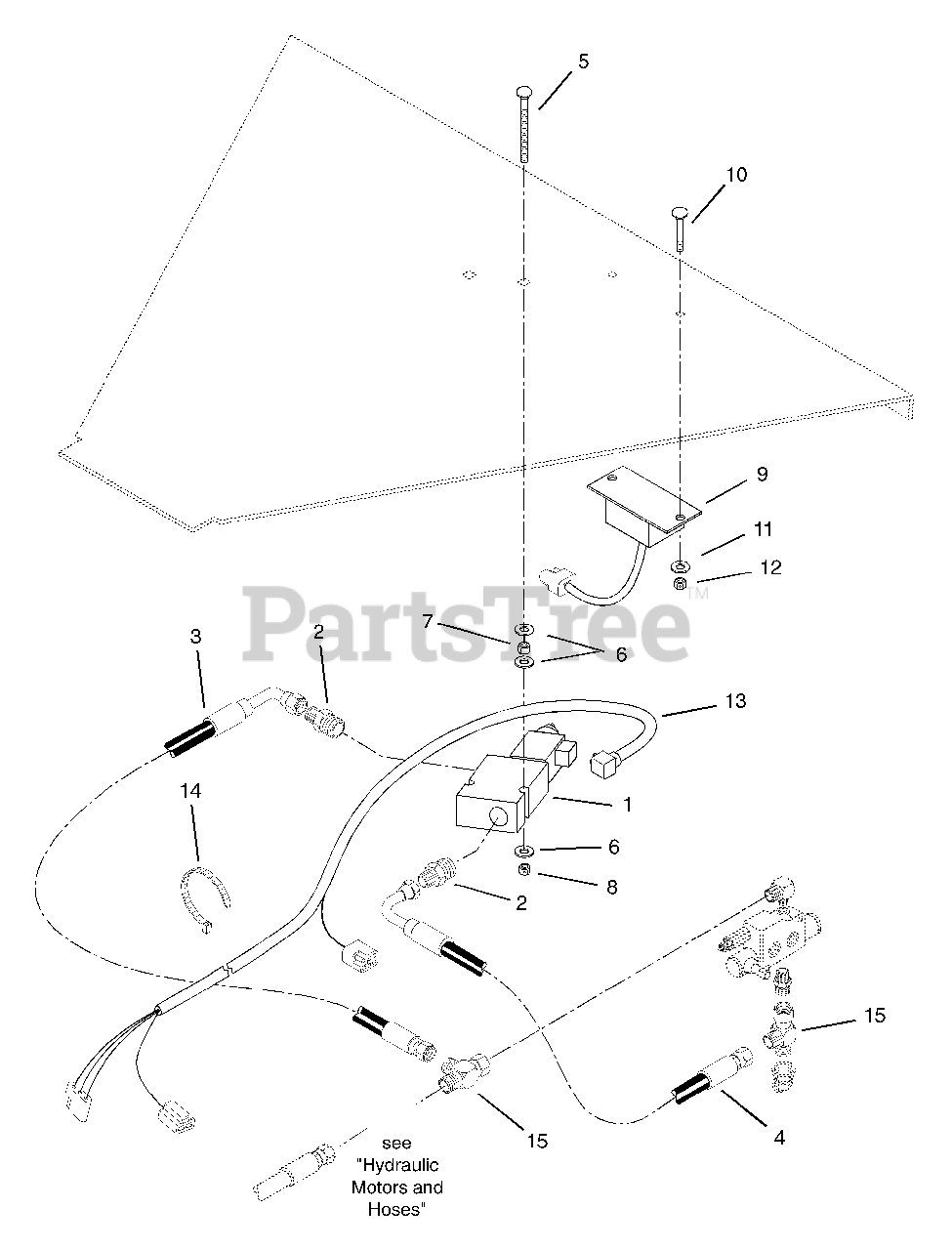

Autofeed (Option 9) Parts Diagram

  • Title

1

Gravely 09338700

Valve-Autofeed

$

$

Not available

2

Gravely 07050900

Adapter-Hydraulic Straight 1-1/16 "O" to 3/4

$

$

Not available

3

Gravely 09335800

Hose-Hydraulic 30" with Elbow

$

$

Not available

4

Gravely 09335900

Hose-Hydraulic 26.5 inch with Elbow

$42.99

$

Usually ships in 4-12 days

0

5

Gravely 06212300

Bolt-Round Head Square Neck .31-18 x 2.75

$2.99

$

In Stock, only 4 left!

0

6

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

8

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09338800

Module-Autofeed

$

$

Not available

10

Gravely 06219800

Bolt-Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09343900

Harness-Autofeed Wiring 944

$

$

Not available

14

Gravely 04003800

Tie Wrap

$

$

Not available

15

Gravely 04128200

Tee-Swivel

$

$

Not available
