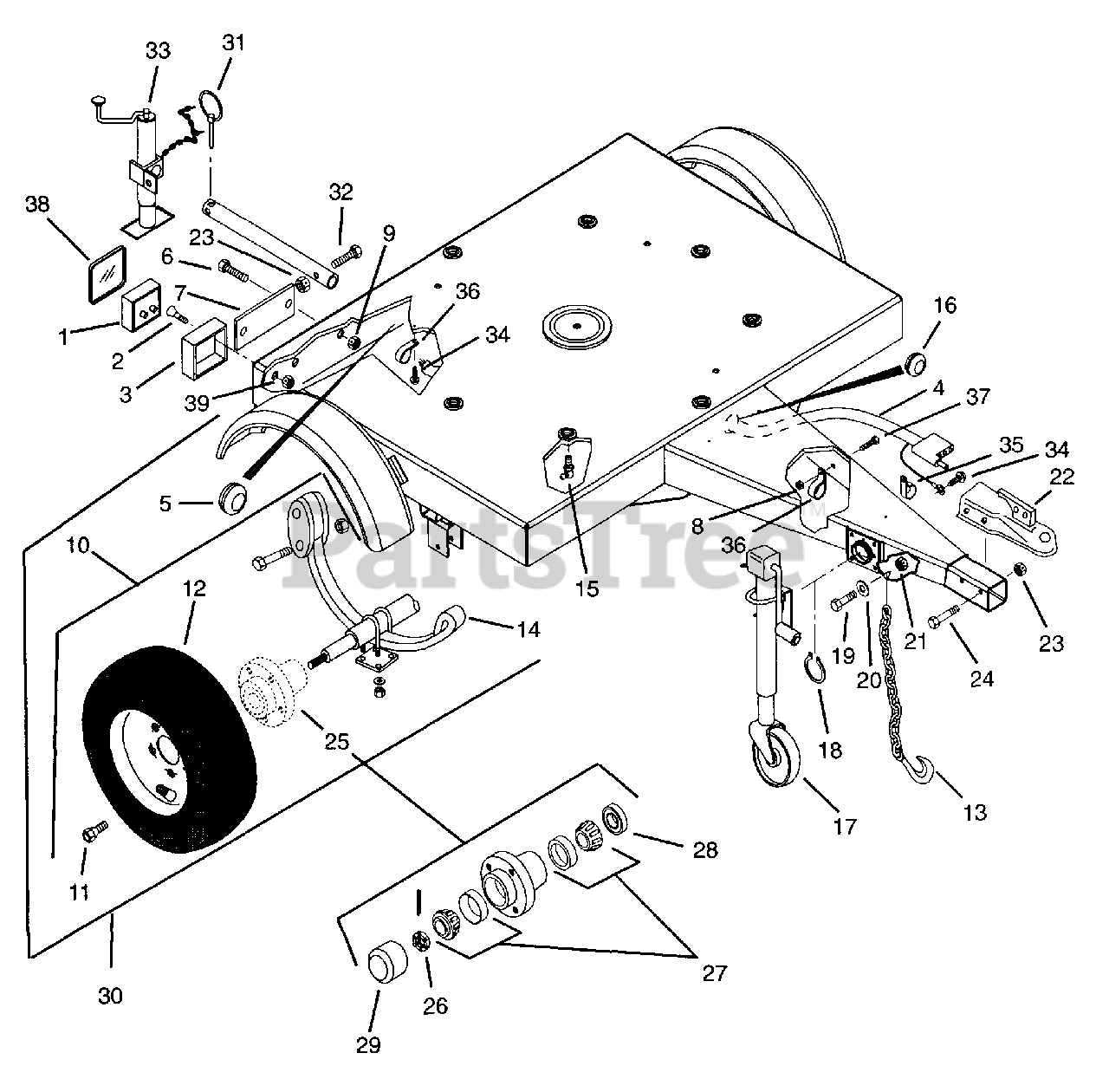

993032 (Pro-Chip 625LR) - Gravely Pro-Chip Chipper without trailer (SN: 000101 - 000500) Trailer Parts Diagram

Pro-Chip Chipper without trailer

Trailer Parts Diagram

  • Title

1

Gravely 04116300

Taillight-Left Hand

Note: (Includes Item 38)

$

$

Not available

1

Gravely 04116400

Taillight-Right Hand

Note: (Includes Item 38)

$

$

Not available

2

Gravely 06118900

Screw-Machine-Flat .25 X .75

$

$

Not available

3

Gravely 04116500

Left Taillight Weldment

$

$

Not available

3

Gravely 04116600

Right Taillight Weldment

$

$

Not available

4

Gravely 09338600

Wire Harness

$

$

Not available

5

Gravely 07504400

Grommet .188 X .375 ID

$

$

Not available

6

Gravely 06116900

Screw-Machine-Hex Head 10-24 X .75
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

7

Gravely 07536500

Reflector

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06536000

Nut-Locking-Nylon 10-24 w/Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 04134200

Trailer Axle-Complete - Less Tire and Wheels
(Superseded to 09353400)

Note: (Contains 11, 14, 25 & 26)

$

$

Not available

11

Gravely 07014600

Bolt-Hex .50-20 x .75 x 1.62 Plated
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

12

Gravely 04134000

Tire/Wheel Assembly

$

$

Not available

13

Gravely 09300200

Safety Chain

$

$

Not available

14

Gravely 09301100

Spring-Axle-Service Assembly

$

$

Not available

15

Gravely 07029700

Fitting-Hydraulic Drive

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 07530600

Grommet .75 X 1.06 X 1.38

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 04201300

Jack Assembly

$

$

Not available

18

Gravely 05717900

Ring-Retaining-External 2.500 X .078

$

$

Not available

19

Gravely 05958700

Bolt-Hex .44-14 X 1.00 Grade 5
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

20

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

21

Gravely 06536400

Nut-Locking-Center .44-14
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

22

Gravely 09300100

Coupler-2" Ball Type

$

$

Not available

23

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

24

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 09301000

Hub

Note: (Contains 27, 28, 29)

$

$

Not available

26

Gravely 06513100

Nut-Slotted 1.0-14

$5.99

$

Usually ships in 4-12 days

0

27

Gravely 05417300

Replacement Bearing Assembly

$

$

Not available

28

Seal

Seal

$

$

Not available

29

Grease Cap

Grease Cap

$

$

Not available

30

Gravely 09341900

Trailer

Note: (Contains Items 10, 12 & 15)

$1675.99

$

Usually ships in 4-12 days

0

31

Gravely 09342000

Tube-Jack-Pivot

$

$

Not available

32

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

33

Gravely 09320400

Jack-2000 Lb x 12.75 Screw

$

$

Not available

34

Gravely 07412000

Screw-Tapping .25 x .50 HWH
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06908200

Clamp-Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 06904800

Clip

$

$

Not available

37

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 09310000

Lens-Tail Light

$

$

Not available

39

Gravely 06531000

Nut-Locking-Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0
